Edmund Optics    Barrington, NJ 08007
May 15, 2013 Designed for beam shaping applications, Fast Axis Collimators feature aspheric cylindrical lens designs and numerical apertures that deliver uniform collimation of entire laser diode output while maintaining beam quality. Products measure 12 mm long, are available with focal lengths from 0.29–1.49 mm, feature AR coating for 790–990 nm, and provide greater than 99% transmission across designated spectral range. Available focal lengths are 0.29, 0.365, 0.59, 0.91, and 1.49 mm.

JENOPTIK Optical Systems GmbH    07745 Jena   Germany
Apr 26, 2013 Designed for VarioCAM® HD and IR-TCM HD series thermographic cameras, Jenoptik 1.0/7.5 mm wide-angle lens features hybrid DLC (Diamond Like Carbon) surface coating that protects optics when used under extreme ambient conditions. Durability of diamond coating, along with transmission and multispectral functionality of dielectric coating, promote optimal reproduction. Lens has 135° x 100° field of view that enables measurement and surveillance of large objects, even from short distance.

Vishay Intertechnology, Inc.    Malvern, PA 19355 2143
Apr 09, 2013 With 850, 890, and 940 nm wavelengths, VSMY2853, VSMF2893, VSMB2943, and VSMB2948 Series provide ±25° and ±28° angles of half intensity and optical power from 20–35 mW/sr at 100 mA drive current. Units feature GaAIAs surface emitter chip (VSMY2853), double hetero (VSMF2893), and multi quantum well (VSMB2943, VSMB2948) technologies. Supplied in 2.3 x 2.3 x 2.5 mm gullwing and reverse gullwing packages as well as 2.3 x 2.55 x 2.3 mm side-view packages, emitters offer switching speeds down to 10 ns.

Edmund Optics    Barrington, NJ 08007
Jan 22, 2013 Designed to withstand harsh demands of industrial inspection applications, TECHSPEC® High Resolution Lenses for 1 and 4/3 in. Sensors are optimized for 6 and 9 MP sensors. Each C-mount, fixed focal length lens has locking focus and iris rings to prevent unwanted adjustments as well as front filter thread for integrating standard optical filters. While 16, 25, and 35 mm focal length lenses are compatible with up to 1 in. sensor formats, 50 mm focal length works with up to 4/3 in. formats.

Olympus    Waltham, MA 02453
Nov 29, 2012 Able to capture subjects in low-light environments, Micro Four Thirds® M.ZUIKO® DIGITAL 17 mm f1.8 lens has 9 lens elements in 6 groups to deliver sharp images of subjects. Optical system features 3 aspherical lenses, including Dual Super Aspherical element to correct aberrations and High Refractive index lens to correct high spherical aberrations. At 1.4 in. long, lens also features MSC autofocusing mechanism and Snapshot Focus mechanism for pan focusing with distance indicator.

Edmund Optics    Barrington, NJ 08007
Nov 20, 2012 Integrating with various imaging systems, C-Mount Focus-Tunable Lenses combine Electrically Focus Tunable Lenses with C-Mount compatible housings. Focal range can be adjusted from +80 to +200 mm by applying control current to lens. Any 12 mm dia plano-convex or plano-concave lens with edge thickness of less than 4.7 mm may be used as offset lens, while units with pre-mounted -150 mm BK7 PCV lens are available for visible spectrum imaging. Near infrared coating is also available.

Edmund Optics    Barrington, NJ 08007
Nov 19, 2012 Combining Electrically-Focus Tunable Lenses with C-Mount compatible housings, C-Mount Focus-Tunable Lenses integrate into wide range of imaging systems. Ability to adjust focal length allows user to replace multi-lens focus or zoom systems. In order to shift focal range, any 12 mm diameter plano-convex or plano-concave lens with edge thickness of less than 4.7 mm may be used as offset lens. For imaging applications in visible spectrum, lens with pre-mounted -150 mm BK7 PCV lens is available.

Edmund Optics    Barrington, NJ 08007
Nov 16, 2012 Optimized for machine vision working distances, TECHSPEC® Large Format Fixed Focal Length Lenses are available 50 mm and 100 mm focal lengths and can detect small defects. F-Mount compatible products, suited for web inspection, sorting, and identification applications, cover up to 43.4 mm sensor diagonal, which corresponds to standard 35 mm format. Lenses can be used with line scan cameras with up to 6k sensors.

Edmund Optics    Barrington, NJ 08007
Oct 18, 2012 Eliminating multiple cameras and imaging lens setups, TECHSPEC® Hypercentric Lenses (pericentric lenses) provide converging view of object. Simultaneous focus on top and surrounding sides eliminates need for multiple camera and imaging lens setups in machine vision or identification applications. Optimized for use with monochromatic light, lenses provide conical shaped working area; are available for 1/3, ½, and 2/3 in. sensors; and can also serve as long working distance borocopes.

Volk Optical, Inc.    Mentor, OH 44060
Oct 10, 2012 Providing .50x magnification with 2.0x laser spot magnification, H-R Wide Field Pan Retinal Lens has flanged contact element that prevents patients from squeezing lens off eye during diagnostic and laser work. Deep field of view shows details as far out as ora serrata and is distortion free across entire viewing area. Providing pan retinal view not possible with non-contact slit lamp or BIO lens, contact lens design ensures clear visualization of retinal tears or lesions across retinal surface.

Volk Optical, Inc.    Mentor, OH 44060
Oct 03, 2012 Surgical Gonio Lens provides clear anterior chamber angle images for Micro-Invasive Glaucoma Surgery (MIGS) and goniotomy procedures. With 1.2X image magnification, Volk optics lens delivers crisp, high-resolution views. Compatible with both steam and gas sterilization, lens is constructed to withstand repeated sterilization cycles without image degradation over time. Universal positioning handle moves to accommodate left- and right-handed or center positions.

Marshall Electronics    El Segundo, CA 90245
Aug 28, 2012 With respective 1.2 and 3.8 mm pinhole diameters, V-ZPL-HITEMP-A-323 and V-ZPL-HITEMP-B-323 improve camera survivability when monitoring environments up to 1,000°C. Both lenses, supplied in stainless steel housing, can be positioned at structurally recessed observation window for industrial process applications, and camera can be located at distance of 323 mm. Focal length is 3.6-18.0 mm, while sapphire and quartz optical elements withstand impact from scatter sand and gravel.

Newport Corporation    Irvine, CA 92606
Aug 23, 2012 Featuring 23 nm clear apertures, Achromatic Zero-Order Quartz-MgF2 Wave Plates consist of 2 different birefringent crystals - crystalline quartz and magnesium fluoride - each with broadband antireflection coating, in air-spaced design. Units operate in spectral wavelengths from 610-850 nm or 700-1,000 nm. Mounted in black, anodized aluminum housing for protection, wave plates maintain retardation from ±λ/50 to ±λ/100 over entire bandwidth.

Sony Electronics Inc    San Diego, CA 92127
Jul 31, 2012 With 55-300 mm, 5.5X magnification range, SAL55300 enables users of alpha A-mount cameras with APS-C sensors and Translucent Mirror Technology to capture distant subjects with sharp, focused images and full HD video. This interchangeable lens, along with quiet Smooth Autofocus Motor (SAM), contains ED (Extra-Low Dispersion) glass element that reduces color aberrations, improves image quality, and provides optimal contrast as well as corner-to-corner sharpness.

Olympus Europa Holding GmbH    Hamburg 20097  Germany
Jul 30, 2012 Utilizing special sapphire glass in combination with low auto-fluorescence immersion oil, NA 1.7 APON100×HOTIRF enables imaging of intracellular molecules. Objective also provides optical performance required for super resolution applications and Total Internal Reflection Fluorescence (TIRF) co-localization studies, with extremely high spatial resolution generated by thin optical slices at surface of specimen. With magnification of 100X, objective is also suited for in-vitro TIRF microscopy.

Edmund Optics    Barrington, NJ 08007

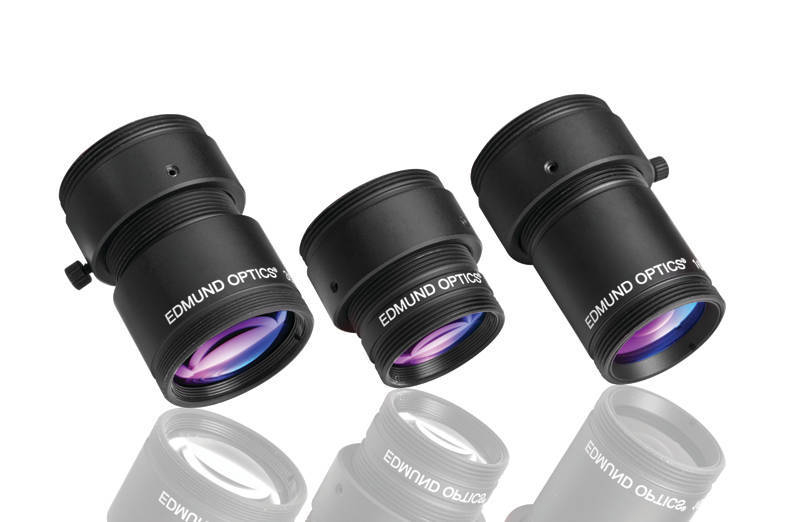

May 01, 2012 TECHSPEC compact instrumentation imaging lenses have adjustable locking focus design and feature broadband anti-reflection coating for maximum light transmission. Designed for volume integration, they deliver high image quality with low lens-to-lens variation. Available with wide range of fixed aperture options to allow flexibility of resolution, throughput, and depth of field, lenses are offered in 17 different aperture stop versions, from f/1.4 out to f/8, in 16, 25, and 35 mm focal lengths.

Edmund Optics    Barrington, NJ 08007
Apr 20, 2012 Manufactured from optical elements designed, coated, and tested for SWIR wavelengths from 0.9-1.7 µm, TECHSPEC SWIR Fixed Focal Length Imaging Lenses come in 25 and 50 mm focal lengths. Latter is offered with C-Mount, F-Mount, and M42 x 1.0 mm options in order to work on various SWIR cameras. Broadband anti-reflection coating from 800 nm to 1.8 µm optimizes transmission, and lenses are designed to cover 25 mm sensors and offer f/#s values for optimal throughput and performance.

FUJIFILM Optical Devices U.S.A., Inc.,    Wayne, NJ 07470
Apr 18, 2012 Suitable for use as standard PL lens or as ENG-Style lens, PL 19-90 Cabrio ZK4.7x19 features 19-90 mm focal range with flange focal distance adjustment and macro function. Unit has 9-blade iris and covers 31.5 mm sensor size on digital cinema style cameras. LDS and /i metadata compatibility enables users to record position information of zoom, iris, and focus for computer animation and other uses. For visibility in dark shooting situations, lens has luminous barrel markings.

FUJIFILM Optical Devices U.S.A., Inc.,    Wayne, NJ 07470
Apr 18, 2012 Incorporating dustproof and anti-fogging technology, Model XA77x9.5 includes OS TECH image stabilization, which uses sensors to detect slightest movement caused by vibration. Correction signal is applied to optical system, helping to maintain stable image when shooting from unstable platform. Back focus system allows macro shooting from as close as 2.7 m from subject. By evaluating electronic and mechanical parameters, diagnostic FIND system aids in preventative maintenance and troubleshooting.

Meller Optics, Inc.    Providence, RI 02940
Apr 17, 2012 Available in round and rectangular configurations, Custom Sapphire Optics can be fabricated as lenses, windows, and viewports from ¼-10 in. diameter and ½ mm to 1 in. thick, with or without A/R coatings. Optics are impervious to salt water and can withstand up to 10,000 psi, depending upon aspect ratio and mounting technique. Featuring Moh 9 hardness, windows can be fabricated with flatness held to 0.5 fringes of HeNe and parallelism from 20 to 2 arc/secs.
