Mitutoyo America Corp.
Aurora, IL 60504
Sep 01, 2009 IP67-rated Digimatic Hook Style Depth Gage features hook positioned perpendicular to end of main scale, enabling depth gage jaws to securely affix to lips or other projections. Dustproof, chipproof, and coolantproof protection promotes .0005 in. resolution and ±.0015 in. accuracy at depth range of .4-8.4 in. Featuring stainless steel construction with hardened and micro-lapped measuring faces, gauge has mounting holes in base, and wider extension bases are available.

Mitutoyo America Corp.
Aurora, IL 60504 9176

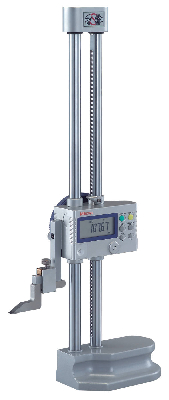

Mar 27, 2009 Digimatic® Height Gages feature slider-handle control wheel offset from slider-handle body by 10° that provides comfortable hand position for easy operation. Other features include display with 11 mm high characters, large control buttons, and frequently used buttons positioned for easiest access. Offered in models with accuracies from ±.001 to ±.003 in. and repeatability of .0005 in., products allow resolution to be set at .0005 or .0002 in. and provide pre-set function to reduce set-up time.

Schunk
Morrisville, NC 27560

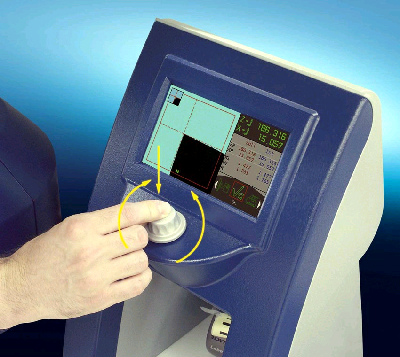

May 06, 2008 TRISet optical tool presetting and measuring device allows user to measure, check, and adjust tools before using them. Tools can be clamped, measured, and adjusted outside CNC machine, resulting in no downtime. Menu operation is via knob/push button, and length, diameter, cutting edge angle, and radius are detected with ImageController1 image processing. Setting devices are available in 2 measuring ranges: Z=400, D=400 mm; and Z=600, D=400 mm.

Sky-Trax, Inc.
New Castle, DE 19720
Jan 17, 2008 Suited for on-board data collection, inventory management, and other automation systems, Sky-Trax Lift Height Sensor(TM) HS-1C determines height levels from 0-30 ft from floor with accuracy better than ±2 in. throughout range. Unit also provides stable mast height determination within 1 sec at any time. With optional USB interface module and software, sensor can capture lift height data on any computer running MS-Windows XP or Vista.

Keyence Corporation of America
Woodcliff Lake, NJ 07675
Oct 24, 2007 Designed for automatic in-line measurement applications, IP67-rated GT incorporates linear ball bearing Air-Push spindle tip that pneumatically extends and retracts for each measurement cycle, eliminating wear and abrasion damage. All measurements are performed in GT amplifier requiring no PLC or external data processing. Available in DIN rail-mounted and panel-mounted configurations, device includes red/green multibar LED indicator that provides Go/No-Go output.

Mahr Federal Inc.
Providence, RI 02905
Oct 24, 2007 Offering range of measurement functions in 1 D or optional 2 D, Digimar® 817 CLM Height Measuring Instrument includes Quick Mode feature that allows measurement cycle to be initiated by pushing carriage in direction of object to be measured. Two Speed Keys on base allow operator to move measuring carriage to desired position and start measurement. Available in 3 column heights with measuring ranges of 14, 24, and 40 in., unit provides temperature compensation with integrated temperature sensor.

Schunk
Morrisville, NC 27560
Oct 09, 2007 Designed to provide micron-precise display and measurement of tools within seconds, Presetting Device inspects tool cutting edges to check quality and wear. It includes measurement program for radial and axial run-out, and knob/push-button with menu navigation via graphic user interface and help texts. User-driven, machine zero point monitoring prevents machine crashes.

Lyndex-Nikken Inc.
Mundelein, IL 60060
Aug 03, 2007 Used in tool measurement and inspection, E123 Presetter features solid ground granite column and base construction for rigid and accurate performance. Hand wheels are incorporated for final framing of profile in screen, and fixed rotating spindle uses 6 mini-bearings with radial concentricity error compensation. Offering resolution from 1-5 µm, measurement over 130 mm X-Axis and 360 mm Z-Axis is fully automatic and includes radii as well as angle values.

Hydromat Inc.
St. Louis, MO 63043
Sep 22, 2004 Equipped with Quick-Set Vision System, Hydromat Presetter measures, sets, and verifies all tools before placement in application. Measuring range is 248 mm for Z-axis (length), 248 mm for X-axis (radius), and 238 mm for swivel diameter. Upgradeable productivity tool includes 20x magnification camera system with in-screen measurement optics and 12 in. flat-screen, color monitor with 35x magnification, 0.005 mm display accuracy, and ± 0.01 mm measuring accuracy.

Starrett, L.S., Co., The
Athol, MA 01331 1915
Sep 13, 2004 Model 3752, with intuitive control panel, provides .0005 in. resolution and RS232 output for data collection, analysis, and hard copy documentation. It is offered in 2 sizes, with ranges of 0–12 in. and 0–24 in., and clear bar graduations in .100 in. increments. Gauge provides inch-millimeter conversion, hold control for reading retention, and plus or minus indication. Overall accuracy is ±.0015 in. from 0–18 in. and ±.002 in. from 18–24 in.

Paul N. Gardner Co., Inc.
Pompano Beach, FL 33060 6608
Jun 04, 2004 Digital Optical Micrometer, Model 8400K evaluates severity of mechanical damage such as scratches, corrosion pits, or blemishes that are difficult to observe by other methods. User focuses on good surface near scratch or pit, sets display to 0.0000 in., then focuses into bottom of scratch or pit and reads depth on digital display. RS232 serial port allows data export to included processor/printer. Sealed, non-magnetic case is dustproof and shock-resistant.

Brown & Sharpe Mfg. Co.
North Kingstown, RI 02852
Mar 18, 2004 With TESA® rotary power feature, electronic MICRO-HITE plus M enables users to switch between manual and motorized operation. It has constant measuring force of 1N and is available with 14, 24, or 36 in. of travel. On-board microprocessor automatically compensates for probe size, calculates size of slots and projections, and determines centerlines of features. Keyboard controls 1D measurement operations, while icons provide operator guidance.

Mitutoyo America Corporation
Aurora, IL 60504 9176
Jun 04, 2003 Incorporating red/green backlit display that immediately indicates whether measurements are in or out of tolerance, QM-Height gage utilizes proprietary Absolute-type linear encoder to eliminate reset of origin on start up. Offering high accuracy of ±(2.8+5L/1000)µm, 14 and 24 in. models feature selectable resolutions of .00005, .00001, and .00002 in., depending on work-piece, as well as respective perpendicularity of 8 µm and 13 µm.

GEI International, Inc.
Syracuse, NY 13217 6849
Dec 17, 2002 BNS-0100 measures depth of slots, grooves, dents, and depressions in most materials and objects. Depth of measured item is displayed on dial face of gauge in increments of 0.005 in. Suited for industrial use, unit has knife edge base and moveable needle point. Needle point is moved to contact measured item by touch of 1 button at top of gauge. Gauge measures in inches to 0.0005 in. Maximum depth that may be measured is 0.125 in.

Mahr Federal Inc.
Providence, RI 02940
Nov 06, 2002 Motorized Digimar® CX2 features motorized measuring slide that minimizes operator influence for precision and repeatability. Functions include measurement of planes, grooves, bores and shafts, and calculation of distances and symmetries. Max-Min and perpendicularity measurements are supported. System has measuring range of 24 in., extendable to 37 in., with resolution of 0.0001/0.00005 in. and repeatability of 0.00008 in.

Hardinge Workholding Division
Elmira, NY 14902

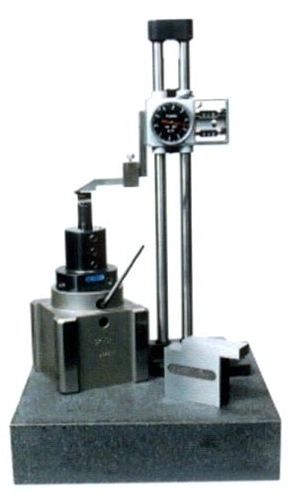

Aug 28, 2002 Manual VDI tool presetter system works with horizontal and vertical turning lathes to allowing machine operators to measure tool position height and length outside of machines during cycling. Portable unit has 12 x 18 in. footprint that can be shared by operators. System includes 12 in. manual height gage, centerline block, granite surface plate, and choice of VDI 30 or 40 toolholder block.

Fowler, Fred V., Co., Inc.
Newton, MA 02466

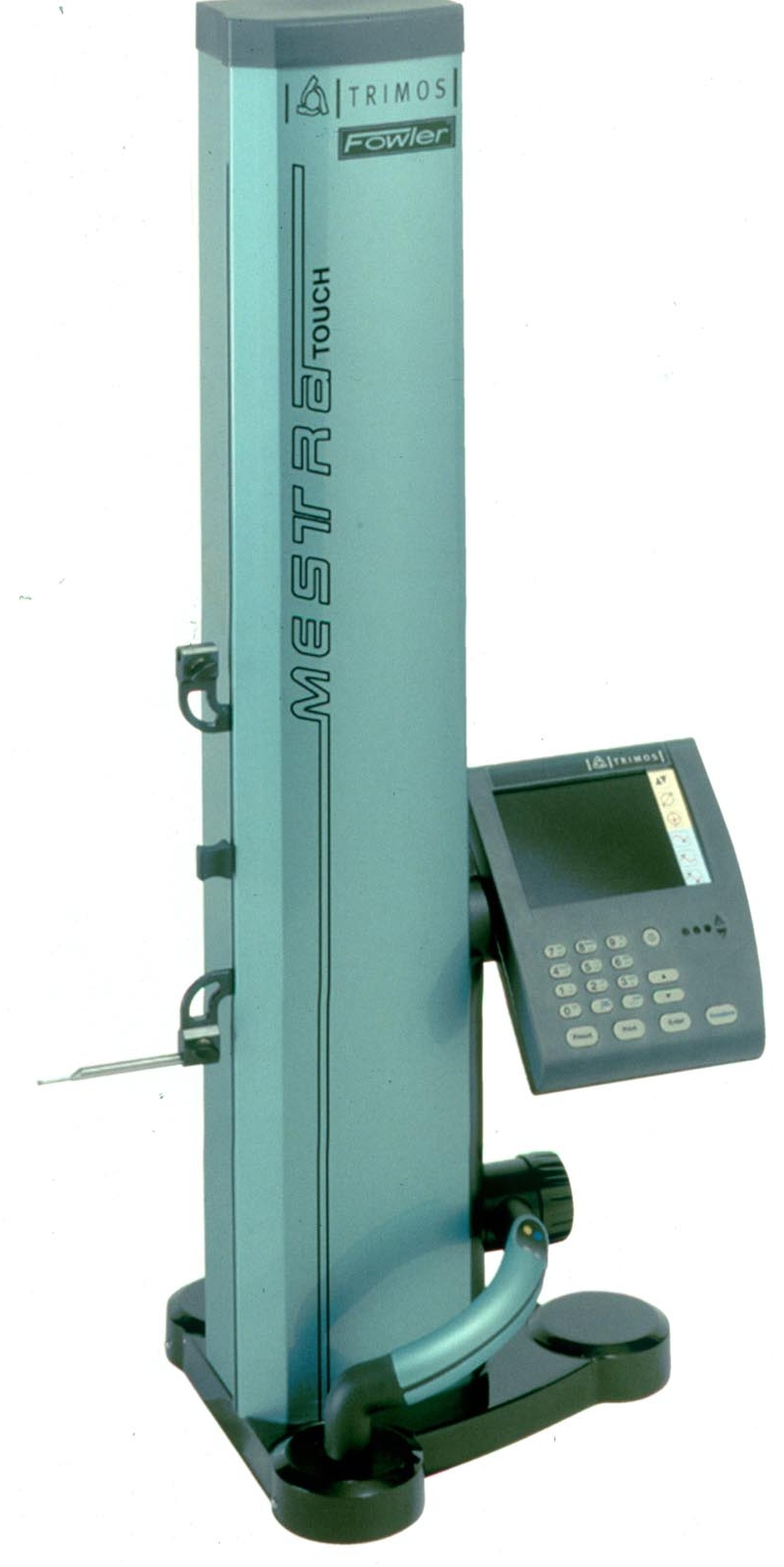

Jun 27, 2002 Mestra and Mestra-Touch Trimos height measuring family of instruments provides measuring ranges up to 50 in. with .00001 in. resolution and .00002 in. repeatability. Vectra and Vectra-Touch vertical measuring instrument series is available up to 50 in., and offers color, touch-screen programming. QuadraTest multi-mode electronic test indicator is available with 1/2 or 1 7/16 in. contact point and range of .080 in. (virtual 0-40-0 reading) on .0005 and .00005 in. scale.

Kurt Manufacturing
Minneapolis, MN 55421
Jun 13, 2002 Outside Micrometers are offered in 0 to 1, 1 to 2, and 2 to 3 in. measuring ranges. Dial Calipers, available in 6, 8, and 12 in. range, provide outside, inside, depth, and step measurements in graduations of .001 in. Also offered: 1 and 0.5 in. Dial Indicator with +/-.001 in. accuracy. Test Indicators have range of 0.008 and 0.03 in. and graduations of 0.0001 and 0.0005 in. respectively. Digital Height Gage (12 in.) provides .001 in. graduations with accuracy to +/-.0015 in.

Fowler, Fred V., Co., Inc.
Newton, MA 02466
Apr 12, 2002 Z-Cal 600 XT Height Gage offers 24 in. range and 2D (X-Y) software capability. It requires low measuring force and features motorized movement, full numeric keypad, and air-bearing base. Wyler Radio Module for Minilevel/Levelmeter NT 2000 provides error-free data transmission over long distances without connecting cables. This allows measurement of big structures such as large machine tools, surface plates, and civil engineering projects.

Starrett, L.S., Co., The
Athol, MA 01331 1915
Dec 17, 2001 Altissimo Platinum Gauge measures ID, OD, center and total indicator runout, and calculates height, max, min, distance to last feature, and distance between last 2 points. It has 7 set-up functions ranging from probe calibration to display resolution. In addition, pressing hot key allows measuring routines to be selected on-the-fly. Capacitive measurement system operates on NiMH rechargeable batteries that provide 100+ hr of life.
