Pelco Inc    Clovis, CA 93612-5699
Oct 13, 2010 Incorporating Sarix(TM) imaging technology, Spectra HD® delivers clear images via IP for live streaming to Web browser, Endura, Digital Sentry, or other HD video management system. System's 1.3 megapixel imager and all-digital processing deliver dual-stream H.264 and/or M-JPEG compression with up to 960p resolution. Providing 18x optical zoom, auto-tracking, and 360° continuous PTZ control, network-based video security system is suited for education, corrections, and other campus-based installations.

Samsung Techwin America    Carson, CA 90746
Oct 13, 2010 Featuring 1/3 in. CMOS imager and 3 mm fixed lens, 1.3 MP Model SNV-5010 provides 1,280 x 1,024 pixel resolution at 22 fps and 720p at 30 fps. ONVIF-compliant camera supports H.264/MPEG-4/MJPEG video streams and Power-over-Ethernet. Packaged in IP66-rated 4.93 x 4.54 x 2.05 in. housing, camera includes Samsung Super Dynamic Range contrast enhancement, 2D+3D filter to minimize digital noise, and intelligent video analytics such as scene change, virtual line, enter/exit, and appear/disappear.

Samsung Techwin America    Carson, CA 90746
Oct 13, 2010 Measuring 1.91 x 2.1 x 1.58 in., SCB-3020 is 1/3 in. ATM camera that provides 600 TV lines of resolution with minimum illumination of 0.45 lux at F2.0 (color). Features include 3.7 mm fixed lens, coaxial control (CCVC), and 128x Wide Dynamic Range. As 1/3 in. Hi-Res IR dome camera, SCD-2080R senses 0 lux illumination with IR LED at up to 65 ft. It has 3.6x (2.8-10 mm) varifocal lens, coaxial control (Pelco-C), and true day/night capabilities with IR cut filter.

Lenox Instrument Co.    Trevose, PA 19053 3427

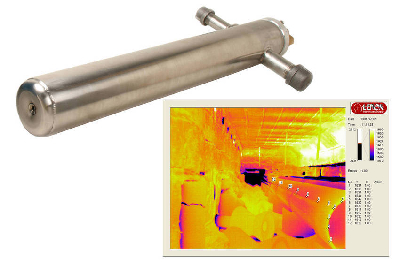

Oct 11, 2010 Installed through 3.5 in. opening in combustion chamber wall, Furnace Camera HD provides real-time thermal imaging and near-infrared temperature measurement from over 320,000 temperature points via Gigabit Ethernet digital connection. Stainless steel housing employs triple-wall laminar flow for water-cooled protection and integrated air-purging to keep optics clear of debris. With Image Processing Software, images and data can be viewed, manipulated, recorded, and archived.

NetVision Mobile    Greenville, SC 29607
Oct 11, 2010 Solar 2130 Hybrid Solar-Battery Surveillance Trailer suspends up to 4 weatherproof Pan/Tilt/Zoom security cameras 30 ft above ground, providing 360° visual range. Camera images can be viewed live anywhere there is Internet access, and cameras can include options such as thermal imaging. Product also includes dual solar panels that provide 250 W of power, as well as on-board shock sensor that detects tampering. Entire system can be set up in 5 min.

EMX Inc.    Melbourne, FL 32934
Oct 11, 2010 Designed to mount on pistol, Semi-Auto, Wireless, Thermal Imaging Camera contains adjustable electronic reticle and video transmitter. System allows hands-free transmission of boresighted video to belt-worn video receiver. VIDEO OUT from receiver is routed to customer-supplied monocular video display so that operator can see what weapon sees. System gives shooter around-the-corner or over-the-wall concealment in complete darkness.

TT electronics IRC Wirewound and Film Technologies Division    Boone, NC 28607
Oct 07, 2010 Model OPB200 optically-triggered switch contains 890 nm infrared LED and phototransistor paired in 0.200 x 0.320 x 0.400 in. opaque plastic housing. When no object is present in slot, output phototransistor conducts current to maintain circuit, and when object enters slot, output switches to off state to interrupt circuit. Forward voltage is 1.7 V at IF of 200 mA, with reverse current of 100 µA at VR of 2 V. Operating temperature range is from -40 to +85°C.

QNAP Systems, Inc.    Taiwan   China
Oct 07, 2010 Available in 2-, 4-, and 6-drive desktop and rackmount models, Linux-based VioStor Pro Series monitors IP cameras over network and provides video playback via high-definition VGA monitor or TV. All models incorporate dual-core Intel® Atom(TM) processor and 1 GB memory to deliver network throughput of 176 Mbps. Recorders are pre-installed with NVR firmware v3.3.0, which provides H.264, MPEG4, M-JPEG, and MxPEG recording from over 800 IP camera and video server models of 36 brands.

Baumer Ltd.    Southington, CT 06489 1534
Oct 05, 2010 To accommodate diverse application requirements, available products include PC-programmable ITD2P optical encoder, PC-programmable BHF/BHG optical encoders and magnetic EcoMag encoders, EcoMag BRIH/BRID/BRIV magnetic encoders, and DIP switch-programmable BHK/BVK optical encoders. Available in various shaft designs, series allow both impulse count and rotational direction to be programmed. Users can also select and specify speed monitoring and positioning parameters for application.

Forston Labs    Fort Collins, CO 80524
Oct 01, 2010 NavSpec(TM) Plus Spectrophotometer + Fluorometer allows user to collect full wavelength spectrum, including absorbance, percent transmittance, or intensity, in less than 1 sec. It can also be used to conduct kinetic studies of absorbance vs. time; experiments on enzyme kinetics; and colorimetric or fluorescent bioassays. Optical range is 380-950 nm and product has optical resolution of 2.5 nm. Measuring 15 x 9 x 4 cm, unit includes USB cable and 15 plastic cuvettes with lids.

CCTV Camera Pros    Lantana, FL 33462

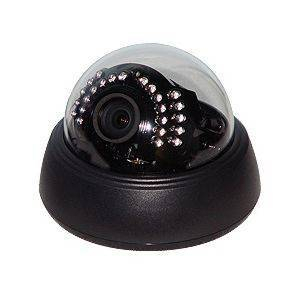

Oct 01, 2010 Equipped with Sony Super HAD II image sensor, Model DPRO-9620VF provides 620 TVL resolution in day mode and 700 TVL in night mode. Indoor surveillance camera features selectable off/low/medium/high infrared mode, backlight compensation adjustment, and 2.8-12 mm auto-iris varifocal lens. Consuming 450 mA, CCTV camera also includes adjustments for light sensitivity, exposure, white balance, digital noise reduction, color, and sharpness. Tri-axis mount allows unit to be ceiling or wall mounted.

Fujikura Europe Ltd, Fibre Optics Division    Chessington, Surrey KT9 2NY,  United Kingdom
Oct 01, 2010 Intended for factory, manufacturing, R/D, and lab environments, FSM-100P ARCMaster(TM) offers capabilities to control plasma zone of fusion ARC. Split v-groove clamping system accommodates optical fibers from 60-2,000 µm, while travel range for sweep arc promotes MFD matching capability as well as ability for reshaping non-circular fibers in preparation for splicing. Splicer also offers PAS and IPA alignment technologies, splice loss estimation technology, and Internet firmware updates.

Perceptron, Inc.    Plymouth, MI 48170
Sep 29, 2010 With Wireless Video Scope, technician can control imager/probe independently of screen, maintaining comfortable viewing angle while maneuvering imager into challenging locations and orientations. UV/Blue Imager uses LED to illuminate fluorescent dyes, aiding in detection of automotive leaks. Suited for inspecting cylinder walls and valves, Dual View Imager has cameras pointing forward and to side of imager, and enables user to change view by toggling switch near base.

Midwest Optical Systems, Inc.    Palatine, IL 60067
Sep 29, 2010 Suited for imaging at 350-1,100 nm wavelengths, low-reflectivity NI Filters come in 4 optical densities of 0.3, 0.6, 0.9, and 1.2 with overall transmission of 50, 25, 12.5, and 6.25%, respectively. Units feature uniform attenuation simultaneously over entire visible and near-IR range imaged by most industrial CCD/CMOS cameras. Available in 1, 2, and 3 mm thicknesses, filters have reflection-inhibiting vacuum-evaporated protective overcoat that minimizes undesirable back reflections.

Olympus Imaging America Inc.    Center Valley, PA 18034
Sep 29, 2010 Splashproof DSLR camera, E-5 features 12.3 megapixel high-speed live MOS sensor with TruePic V+ image processing engine that includes "Fine Detail Processing" technology for detailing in photographs. It has 3 in. dual axis swivel HyperCrystal® LCD with 920,000 dots to frame HD videos and still images at any angle. In-body mechanical image stabilization allows for camera movement up to 5 steps EV and delivers blur-free images. Device captures video in 720p HD video at 30 frames/sec.

GAO Comm    Toronto M1B 2K4  Canada
Sep 28, 2010 Designed for maintenance of digital, analog, FM, or bilateral networks, handheld Model 1129D provides single-channel, multi-channel, and all-band scanning as well as signal-to-noise ratio measurement and spectrum and frequency analysis. Portable meter tests 128/ITU-TJ.83 Annex A/B/C modulated signals and offers signal level measurement range of 30-120 dBµV at precision level of ±1.5 dB. Optional constellation diagram generation is available.

CH Products    Vista, CA 92081
Sep 28, 2010 Featuring black housing and 10 programmable pushbuttons, IPD Launch Joystick provides intuitive control for pan, tilt, and zoom camera functions. Pushbuttons may be used to navigate between workspaces, cameras, views, and PTZ presets. Equipped with USB 1.1 interface, 3-axis resistive joystick integrates seamlessly with software applications supporting USB joystick inputs via Microsoft DirectX. No device driver or manufacture-specific SDK is required.

L.S. Starrett Company    Athol,, MA 01331
Sep 28, 2010 Available in 2 models, Automotive Inspection Sets help mechanics measure proper distance or alignment between parts in tightly confined spaces. Model S898Z-1 combines pliers, Flex-O-Post, dial indicator with .001 in. grads and 1 in. travel, and fitted plastic case, while Model S898Z-2 additionally includes magnetic base. Both are suitable for measuring amount of front-end play or ball joint wear, as well as checking part movement associated with other applications.

Vernon Tool Co.    Oceanside, CA 92054
Sep 28, 2010 Suited for small- to medium-sized fabricators of tube frame assemblies, MasterPipe(TM) Profiler (MPP) 2-axis, CNC pipe cutting machine is powered by Windows®-based OS and operated via touchscreen. It consolidates setup, programming, and cutting into one operation, and pre-loaded cut library optimizes pipe configuration flexibility. Capable of performing range of standard cuts, machine handles 1-12 in. OD pipe in lengths up to 40 ft.

Global Lighting Technologies Inc.    Brecksville, OH 44141
Sep 27, 2010 Utilizing LED-based edge-lighting technology, Edge-Lit Light Guides provide bright, uniform light where needed for directional symbols, on/off buttons, company logos, rotary switches, sliders, and other graphic icons. Edge lighting technology employs side-firing LEDs and focuses light into thin light guide of 0.6 mm or less. Placed between PC board/circuit sensor and graphic overlay, light guides are compatible with variety of overlays.
