Asylum Research    Santa Barbara, CA 93117

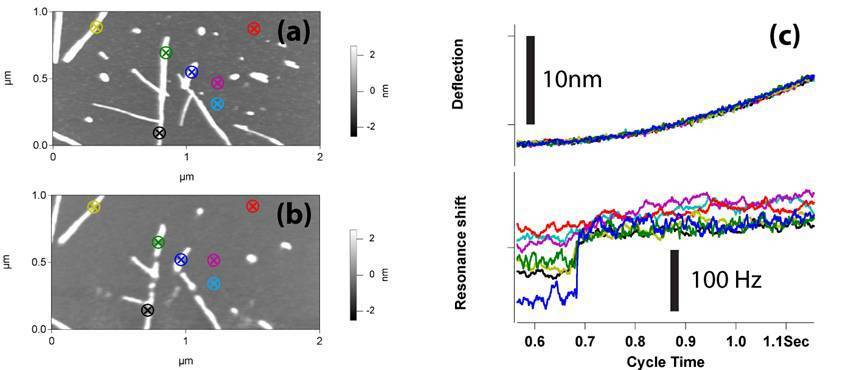

Jun 19, 2009 MFP-3D(TM) and Cypher(TM) AFMs feature Ztherm option, which provides localized heating with sensitivity to less than or equal to 10-22 L materials property changes. Ztherm package can also be used to evaluate contact stiffness and dissipation as function of temperature with advanced techniques such Dual AC Resonance Tracking (DART). Integrated piezo actuation allows high resolution AC imaging of samples for surface topographical mapping before and after thermal measurements.

Y-Connect, Inc.    Middletown, PA 17057

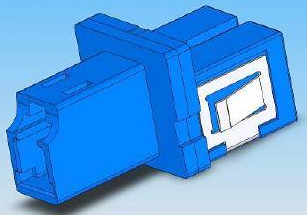

Jun 17, 2009 Duplex and Quad LC Adapters include modularized multiport dust shutter providing dust as well as eye protection for Class III A and lower lasers. Units offer secure panel mount latching and are compatible with T.I.A. FOCIS 10B duplex and quad panel cutouts, allowing users to double connection densities using existing simplex or duplex SC adapter panel cutouts, respectively. Available in MM, SM, and APC, products meet UL 94 V-0 flammability requirements and are RoHS compliant.

Y-Connect, Inc.    Middletown, PA 17057
Jun 17, 2009 Suitable for singlemode (SM) and multimode (MM) applications, SC and LC adapters are available with phosphorous bronze sleeve and provide reliable connections between SC and LC connectors. Simplex LC-SC Hybrid adapter is designed with secure panel mount latching and compatible with TIA FOCIS 10B. LC-SC Hybrid adapter, available in MM and SM is offered in blue, beige, green, and black; meets UL 94 V-0 flammability requirements; and is RoHS-compliant.

Rockwell Automation    Milwaukee, WI 53204
Jun 17, 2009 Equipped with integrated laser alignment system, GuardShield Safe 4 transmitter and receiver pair is available in 14 and 30 mm resolutions with protective heights from 120-1,920 mm. Also offered in 14 and 30 mm resolutions, GuardShield Cascadeable Micro 400 consists of Type 4, 3-box curtain for small assembly machines. With operating range of 30 m, GuardShield Safe 4 PAC is available as 2-segment pair with 600 mm protected height or 3-segment pair with 840 mm protected height.

IPG Photonics Corp.    Oxford, MA 01540
Jun 17, 2009 Able to produce 9.6 kW of single-mode power through one fiber at total efficiency exceeding 23%, YLS-10000-SM commercial solid-state production laser is suited for use in remote cutting/welding and directed energy applications. Its optical scheme consists of fully-integrated MOPA (master oscillator power amplifier), with output delivery fiber 4 m long directly spliced into power amp. Brightness is enhanced by output power and Gaussian beam quality at 1,070 nm emission wavelength.

CRAIC Technologies Inc.    San Dimas, CA 91773

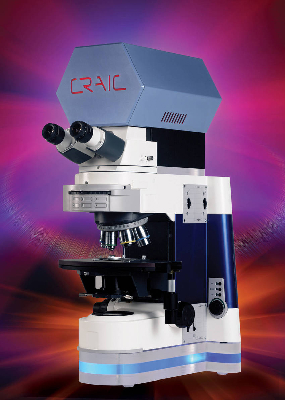

Jun 16, 2009 Integrating spectrophotometer with UV-visible-NIR range microscope and software, QDI 2010 Forensic(TM) Microspectrophotometer is specifically configured to accurately and non-destructively analyze many types of trace evidence. Applications include comparison of dyes in textile fibers, analysis of UV absorbers in clearcoats used on automotive paints, and characterization of gemstones. System can also be configured to image and acquire spectra of questioned documents from deep UV to near IR.

Electro Standards Laboratories    Cranston, RI 02921 3403
Jun 16, 2009 Fully compliant with 802.3u 100 Base TX/FX standard, QuickSwitch® model 4195 fiber SC duplex to RJ45 auto fallback A/B switch/converter allows for accessing 2 separate SC duplex, multimode, 100 base FX ports from 100 Base TX fast Ethernet port. It has built-in fiber optic/twisted pair copper conversion. Unit allows for setting switch position manually or remotely when in A/B switch mode, while it automatically selects its switch position in auto fallback mode.

Vytran    Morganville, NJ 07751
Jun 16, 2009 Using Graphite Filament Fusion technology, Model PSX-3000 produces clean, low-loss splices in standard and large mode area double-clad fibers. True Core Imaging(TM) and Active Alignment technology provide precise core alignment and splice loss determination, while Windows-based laptop PC interface offers configuration and control, and database records all splicing data. Model PSX-3000 can be set up as simple splicer or as integrated system with cleave, clean, splice, and recoat capabilities.

Megladon Manufacturing Group, Ltd.    Austin, TX 78758
Jun 15, 2009 Featuring HLC SCRATCHGUARD technology, Bend Insensitive Trunk Cables are suited for data centers, CATV headends and private networks. Cables utilize Draka's bend insensitive fiber in both 10X and 100X versions. They can be configured in loose tube or tight buffered designs with various fiber counts and lengths, and are supported with all standard fiber optic connectors including SCAPC HLC.

Abrisa Technologies    Santa Paula, CA 93060
Jun 12, 2009 Featuring transparent conductive coatings designed to keep optical glass free from moisture and fog, LuxVu(TM) Heated Optical Windows also aid in de-icing in extreme weather conditions. Transparent conductive coating can be combined with variety of custom display enhancements and coatings. Product is suited for ruggedized outdoor displays, imaging and sensing devices in field such as traffic, ground security, and UAV cameras, and optical instrumentation panels on air and ground vehicles.

Dontech, Inc.    Doylestown, PA 18901
Jun 11, 2009 IMO-bond(TM), optical coupling of contrast enhancing cover glass to front polarizer of display, eliminates reflections from rear surface of optical filter and front surface of display system. Process of applying rigid optical filters to electronic displays via refractive index matched optical (IMO) bonding process includes index-matched adhesives that optically couple cover glass or touch screens to display to eliminate reflection and enhances sunlight readability by greater than 90%.

Abrisa Technologies    Santa Paula, CA 93060
Jun 11, 2009 Utilizing thin film coating, Infrared Blocking Hot Mirror protects outdoor-use LCDs from solar heat and radiation while also reducing their temperature. It reflects energy between 750-1,200 and works as cover glass to protect LCD display, effectively mitigating total IR energy directed at display during daylight hours. Thin film coating eliminates black-out that is common when viewing unprotected outdoor LCD under bright sunlight.

Newport Corp.    Irvine, CA 92606
Jun 11, 2009 Millennia Prime Series of 532 nm green diode pumped solid state (DPSS) lasers are suited for 24/7 applications where uptime is critical, including photovoltaic solar cell manufacturing, hard disk texturing, and semiconductor inspection. They feature low noise less than 0.04% rms, pointing stability less than 2 µrad/°C, and are available in 6, 10, and 15 W versions. Compact lasers can be integrated into industrial machine tools or used where space is critical.

Newport Corp.    Irvine, CA 92606
Jun 10, 2009 Featuring flexible power control for continuous wave (CW) to modulated operating mode, Alliant(TM) 100 W IR laser exhibits single-mode beam quality and wall-plug efficiency that deliver maximum power at smallest focused spot. Brightness is suited for industrial machining applications such as precision cutting, spot and seam welding, and metal sintering. Tested for 24/7 operation, laser is based on ProLite® Xt high brightness laser diodes and supplied in rack-mount enclosure.

NuSil Technology    Carpinteria, CA 93013
Jun 10, 2009 Available with refractive index of 1.54 and viscosities from 3,500-8,000 cP, LS-3354, LS2-3354, and LS3-3354 are designed for potting, encapsulating, backfilling, and dampening applications requiring soft gel with optical clarity. Cure can be achieved at ambient temperatures with humidity or accelerated with heat, and gels can be removed for rework if needed. Available in 1:1 mix ratio, products are suited for protecting electronic components from dust, debris, and moisture.

PerkinElmer, Inc.    NORFOLK, MA 02181
Jun 09, 2009 Combining dynamic counting range of 1 cps to 1 Gcps in single operating mode and low-noise performance, Gigahertz Photon Detection Module (GPDM) is designed for analytical and clinical diagnostic applications under low-light level conditions. Its dynamic range and SNR enable OEMs to perform fluorescence and luminescence measurements with one detection system.

Newport Corp.    Irvine, CA 92606
Jun 09, 2009 To optimize safety, ergonomics, and space efficiency, SmartTable® OTS(TM) is available with shelving and support rails. All accessories attach directly to table frame for system mobility. Shelving products expand storage space in lab, allowing researchers to remove non-essential items from table. Functioning as bumper guard for vibration-isolated table, Hip Bar lets users lean into experiment to adjust table components.

Newport Corp.    Irvine, CA 92606
Jun 09, 2009 Optimized for use with Mai Tai® HP ultrafast laser, Inspire(TM) Optical Parametric Oscillator is suited for advanced imaging and spectroscopy applications. Fully automated for computer-controlled tuning, it delivers greater than 1 W average power from 345-520 nm and more than 400 mW from 490-750 nm. Providomg gap-free adjustable pulse widths from 80-350 fs, tunable ultrafast laser source is insensitive to ambient temperature changes.

Vicon Industries Inc.    Hauppauge, NY 11788
Jun 09, 2009 Pre-loaded with ViconNet video management software, single chassis NVR Shadow includes up to 6.5 TB of usable, internal storage space in RAID 5 configuration. System provides extended storage through 8 hot-swappable drives that are accessible from front of unit. It can simultaneously record 50-95 cameras, depending on cameras' frame rate, recording quality, and resolution. Operating system drive, as well as CD/DVD, are not part of RAID array and are located internally.

Opto Diode Corp.    Newbury Park, CA 91320
Jun 09, 2009 Designed for automotive and colorimetry industries, ODD-525W has active area of 0.62 mm², and peak sensitivity response of 525 nm. Features included are spectral bandwidth of 70 nm, and storage and operating temperatures range between -30°C to 85°C and lead soldering temperature at 260°C. Available in hermetically sealed standard TO-46 can, unit can be used in auto light-dimming, fluorescence detection, color sensors, and daylight detection tasks.
