Bolt-on Trunnion Tables target 4-axis machining centers.
Martin Machining Services Inc.
Elsmere, KY 41018
Apr 19, 2013
Available for Kurt vises, including DL675, DL688, and DL640, Stallion 9/20 and 9/23 bolt on to any machine's rotary indexer, allowing operator to precisely mill, drill, tap, and contour up to 3 sides of part in one setup. Tables feature heavily ribbed cast iron construction for rigidity. Model 9/20, measuring 9 x 20 in., holds single 6 in. vise, while 9 x 23 in. Model 9/23 holds double- or single-station 6 in. vise. Both have 0.001 in. flatness over 23 in. and 0.001 in. squareness to faceplate.
CNC Horizontal Rotary Table features 118.11 in. table top.
CNC Indexing & Feeding Technologies
Wakeman, OH 44889
Jan 08, 2013
Employing servo motor and hydraulic braking system for rigid clamping during machining, HR-3030 offers 153.75 in. dia table swing, 0.001° min indexing increments, and 110,230 lb max work load capacity. Design can be used as full rotating axis incorporated into machine's control or as indexer with M-Mate AC servo controller. Built for horizontal mounting, machine features double lead worm shaft and worm wheel system for precision and minimal backlash.
Fixturing and Clamping Tables offer entry level option.
Unanderra 2526 Australia
Oct 22, 2012
Intended for modest fabrication shops, ecoLine Tables are typically 5-sided units with regular pattern of bores located across top and around sides and limited set of fixtures and clamps. Table sizes range from 1,000 x 200 mm to 1,500 x 3,000 mm. Suitable for use with metals, wood, plastic, or glass, ecoLine targets industries where accurate and rapid assembly methods are required and wherever economic positioning, clamping, tacking, and welding is necessary.
Scissor Lift Table features triple belt design.
Enkon Systems Inc.
Walled Lake, MI 48390 - 1662
Sep 25, 2012
With integrated rail system mounted on top frame, Electric Belt Drive Scissor Lift Table provides static positioning indefinitely to ± .01 in. and precision control to ± .06 in., which can be improved with encoder. Vertical travel speed is 1.7 ips with 1,300 lb capacity. Equipped with flash-resistant 110 V electrical plug, UL listed control package, and zinc-plated components, lift is suitable for pick and place in cleanroom applications.
Downdraft Table keeps breathing zones contaminant-free.
Airflow Systems, Inc.
Dallas, TX 75243 8314
Sep 19, 2012
Running at 81 dBA with direct-drive blower design, DT-3000V2 provides source-point collection and filtration of powder, dust, fumes, smoke, and other contaminants produced during industrial processing and production operations. System generates 195 fpm of downdraft air velocity across 19.25 ft², grate-style work surface to draw contaminants down and away from worker’s breathing zone. Contaminants are collected and filtered from air flow path with MERV 17 after-filter.
Rotary Module includes center hole for cable feed through.
Morrisville, NC 27560
Aug 22, 2012
Available in 3 diameters of 135, 170, and 210 mm, Model ERS is based on torque motor with hollow shaft for wear-free operation. Electric rotary module can be used as freely programmable rotary indexing table, as workpiece support for laser welding machines, or as axis of rotation for grippers in gantries. Any intermediate position can be approached at repeat accuracy of 0.02°. With optionally integrated pneumatic holding brake, individual positions can be fixed.
Downdraft Table captures metal grinding particles in water.
Clarence, NY 14031
Jun 13, 2012
Offering wet filtration system, Metal Capture Downdraft Table minimizes flammability of materials in workplace while grinding by capturing potentially combustible filings and dust in air/water mixing zone. Material is then deposed of as slurry. Featuring 12-gauge construction, table has 42-gallon capacity and working area of 36 x 60 in. to accommodate large workpieces. System includes casters for maneuvering and shields on both sides and back of table.
Angular Vibration Table has bench-top compatible design.
Acutronic USA, Inc.
Pittsburgh, PA 15222
Mar 19, 2012
Used for testing of inertial sensors and other electromechanical devices, portable 105-AVT features low-noise linear amplifier, ultra-high fidelity motion, and virtually no structural dynamics. Various Units Under Test (UUTs) can be attached to flexible mounting pattern on tabletop. Along with angular acceleration sensor and safe operation detection, features include greater than 1,000 radians/sec² peak acceleration, ±5° displacement, and flat acceleration response.
Direct Drive Rotary Servo Tables have 250 mm center aperture.
Philadelphia, PA 19152
Jan 05, 2012
Using direct drive motor technology, AccuRing tables provide accurate angular positioning and velocity control with zero backlash and no gear wear or vibration. System accuracy and repeatability of stage are maintained over time, and performance is ensured with encoder resolutions to 0.18 and 0.36 arc sec. In addition to accuracy of ±5 to 20 arc sec and bi-directional repeatability of ±0.5 arc sec, features include 115-350 Nm torque, 200 rpm speed, and 68 table height.
Heavy-Load Positioning Table supports up to 12 tons.
Rockford, IL 61125
Oct 26, 2011
Intended for car body assembly applications, modular and maintenance-free FIBROMAT is lubricated for life, driven by spur gear toothing, and can be equipped with pneumatic indexing upon request. Basic version is equipped with asynchronous servo gear motor with preconfigured drive converter, but modular concept also allows users to select motor(s) to meet application needs. Three sizes are available with 1,000, 1,250, and 1,600 mm dia table top.
Electric-Hydraulic Scissor Lift Table positions heavy objects.
Herkules Equipment Corp.
Walled Lake, MI 48390 1662
Sep 15, 2011
With 10,000 lb capacity, Electric-Hydraulic Scissor Lift Table has 16 in. lowered height with 30 in. of travel, 48 x 96 in. platform, and tubular steel scissors. Pushbutton up/down control pedestal also contains external power unit, and check valve included within high-pressure gear pump head lets operator stop and hold lift system at any position during normal operation. Heavy-duty lift system also includes 230 Vac, 3 HP, 60 Hz, 3-phase, NEMA-4 motor and unidirectional flow control.
Low-Profile Rotary Table has high-resolution design.
Physik Instrumente (PI)
Auburn, MA 01501
Jul 12, 2011
Driven by piezo motors, higher-precision version of M-660 has 0.6 in. profile, direct measuring encoder, and direct drive and can accelerate to velocities of 720°/sec. Directly coupled precision optical encoder resolves positions down to 4 µrad (0.00023°), providing phase-lag-free, backlash-free feedback to servo controller. Self-clamping ceramic drive promotes stability, with no energy consumption at rest and no heat generation.
Motorized Rotary Table features 130 mm center aperture.
Philadelphia, PA 19152
Apr 26, 2011
Constructed of anodized aluminum, RTLA-130 features micro-step drive that enables angular speed up to 20°/sec and double row of preloaded bearings that allow for off-center loads. Device offers load capacity of 50 kg and travel range of 360° with 0.001° resolution and 0.005° repeatability. Measuring 240 x 240 x 62 mm, stage is equipped with precision ground and hardened worm gear, 2-phase stepper motor, and Omron optical home sensor.
Stainless Steel Lift Tables suit pharmaceutical manufacturing.
The David Round Co., Inc.
Streetsboro, OH 44241
Apr 22, 2011
Designed for use within controlled environments found in pharmaceutical manufacturing, Ruger Industries all-stainless steel lift tables feature protected hydraulics and polished finish to facilitate wash-downs. External surfaces are entirely paint-free, meeting mandates of many drug makers for clean room equipment. While providing ergonomic benefits, tables come in capacities up to 2,000 lb and have respective raised and lowered heights of 42 and 18 in.
Automated Rotary Tables utilize direct drive motor.
Robotic Automation Systems
Waunakee, WI 53597
Mar 28, 2011
Designed for automated box or tote filling systems at end of plastic injection molding machines, automated rotary turntables have direct drive motor with torque monitor, eliminating tensioning and maintenance. Available in 36, 48, and 60 in. dia sizes, units operate on count signal from molding machine, robot, or weigh hopper, and can be programmed to fill different box or shipping container sizes and shapes. Hinged door NEMA 1 control cabinet is included.

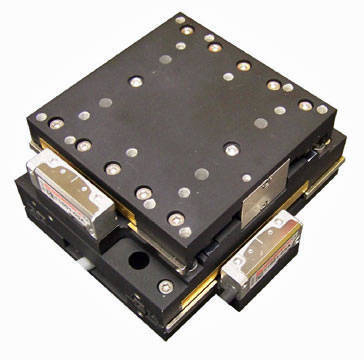

XY Positioning Stages come in aluminum-based versions.
Westborough, MA 01581
Mar 23, 2011
Combining direct drive linear motor with 81 x 93 mm footprint, MMG Mini-Mag Stages offer 25, 50, 100, or 150 mm travel with uncompensated accuracy from 2-8 µm and resolution options from 1.0 µm down to 5 nm. Units feature 8 kg load capacity, integral anti-creep linear guideway, and adjustable limits. For XY sample positioning, sustained throughput up to 2,000 moves/min is possible. Single phase option can operate in vertical orientation with loads up to 0.25 kg for precision imaging applications.
Rotary Table offers high-precision gripping options.
Hardinge Workholding Division
Elmira, NY 14902
Mar 16, 2011
Equipped with collet-ready 16C spindle, 210 mm Model GD210LP accepts standard 16C collets, step chucks, Sure-Grip® expanding collets, and custom collets with optional collet closer. Stiffness and rigidity are achieved with large diameter bearings and fail-safe clamp systems, allowing part weights up to 220 lb. With up to 233 lb-ft clamping torque, table handles off-center drilling, cross-axis milling, and other high-force cutting applications with ±15 arc-sec accuracy.
Scissor Lift Tables offer near deflection-free operation.
Buffalo Grove, IL 60089
Mar 01, 2011
Designed for industrial and laboratory applications, Xtreme-Z Lab Jacks come in 4 models with lift heights from 4.5-12 in. All are stable under minimum or maximum load, with ±.015 in. deflection over full range of movement. Largest model offers respective dynamic and static weight capacities of 150 and 250 lb. All models feature adjustment handle that is removable and machined to accept powered movement. Mounting top and bottom plates are standard and metric grids, respectively.
Downdraft Workstation protects users dusting for fingerprints.
Kansas City, MO 64132 2696
Nov 30, 2010
Protector Downdraft Powder Stations keep users safe by containing powders during fingerprint processing. Allowing unrestricted operator movement, open-sided and open-top workstation comes in 2 or 3 ft widths and may be placed side-by-side with other workstations. Use of recirculated air promotes energy conservation and workplace air quality. Along with Type 304 stainless steel work surface with Flow-Zone perforations, features include blower, exhaust prefilter, and exhaust HEPA filter.
Electric Ball Screw Scissor Lift Table is optimized for control.
Enkon Systems Inc.
Walled Lake, MI 48390 - 1662
Nov 18, 2010
Serving automation and robotic applications where control is of utmost importance, electric ball screw lift table offers static load positioning and speed directed by variable frequency drives. It can integrate with any automated system, is compatible with ac or dc motors, and lifts up to 50,000 lb with control capability rated to ±.03 in. Captured wheel guides prevent lift's platforms from tipping, while catch nut system prevents lift from falling in case load bearing nut fails.
