Machinery & Machining Tools ->
Punching Machines
Punching Machines
(Showing headlines 1 - 20) more ....
|
Multipunch Linear Rail System accepts standard unitized tools.Multicyl, Inc.
Bolton, ON L7E5R1 Canada
May 01, 2012
Available with standard rail sizes from 2-10 ft, MLR System is suitable for variable punching applications in sheet metal, angle iron, extrusion, or tubing. System is adjustable along Y axis with quick change set-up to accommodate punching in various part lengths and hole combinations. Operating with shop air, MLR System can meet OSHA standards without additional guarding.
|
 Specialized Tooling installs self-clinching nuts in 1 operation.PennEngineering® (Penn Engineering)
Danboro, PA 18916
Mar 02, 2012
Integrating modified punch and anvil, PEMSERTER® Tooling can install PEM® Type S self-clinching nuts permanently in thin aluminum sheets without need to pre-punch mounting hole in separate operation. Raised ring on anvil allows fastener to pierce its own mounting hole and then assists in final clinching process. PEM Type S nuts with thread sizes ¼-20, 5/16-18, M6, and M8 and with -2 shank length can be installed in aluminum sheets from 0.059-0.79 in. thick and no harder than HB 79.7.
|
 Ultrasonic Welder enables punch and weld in one step.Herrmann Ultrasonics, Inc.
Bartlett, IL 60103
Feb 22, 2012
Featuring modular design, Model MPW offers ultrasonic welding as well as means of die punching filter membrane material into appropriate shape and transporting material to weld region. System utilizes reel-to-reel guide system to index membrane material into position via tension control. Cylinder actuates ultrasonic tooling through die-punch assembly, cutting material to size. As tool passes through punch, vacuum is applied to hold material in place for welding operation.
|
 Modular Punch Station operates at 400 cycles/min.AZCO Corp.
Fairfield, NJ 07004
Feb 08, 2012
Driven by servo motor, Modular Punch Station uses through hardened punch and die tooling for precision cuts. Roll of base material is placed on motorized unwind, and as dancer moves, unwind feeds out material to set of idler rollers. Servo driven nip rollers pull material through punch station, and motorized rewind winds material onto cardboard core. Operating from 110 Vac, station is mounted onto base plate and all functions are controlled via color touchscreen.
|
 Fiber Laser Cutting Systems deliver consistent quality.Hypertherm, Inc.
Hanover, NH 03755 0010
Feb 01, 2012
HyIntensity Fiber Laser systems HFL020 (2 kW) and HFL010 (1 kW) are designed for cutting applications, including marking. Each system delivers consistent cut quality across diverse material types, including brass and copper, and thicknesses up to 5/8 in. on mild steel. Design facilitates integration with and installation onto existing cutting tables, even those equipped with plasma torch. Cut quality and tolerances are optimized for fine-feature cutting on materials from gauge to plate.
|
 Laser Tube Cutting System delivers high degree of automation.BLM Group USA
Wixom, MI 48393
Sep 27, 2011
Able to cut large diameter, thick walled tubes, LT JUMBO Series can process mild, high strength, alloy, and stainless steels. System can be used to cut round, square, and rectangular tubes as well as non-tubular open structural sections ranging from 3-20 in. dia and lengths to 60 ft. All loading, cutting, and unloading operations are controlled by CNC, and system control software automatically selects optimal cutting method.
|
 CNC Turret Punch Presses have energy efficient design.LVD Group
GULLEGEM 8560 Belgium
May 04, 2011
Strippit M-Series presses feature 47-station turret that has three 3.5 in. auto-index stations and four 2 in. stations, all of which accept shaped punches, dies, and indexable multi-tools. Integrating servo-driven hydraulic press drive, systems support axis speeds up to 380 hits/min on 1 in. centers and up to 900 hits/min on 0.04 in. centers. Units manage workpieces up to 49.21 x 98.4 in., with thicknesses up to 0.250 in., and integrate Energy Reduction System to manage electrical power usage.
|
 Fiber Laser Cutting Machine delivers power and flexibility.Bystronic, Inc.
Hauppauge, NY 11788 3904
Feb 22, 2011
Equipped with 2 kW Fiber 2000 fiber laser, BySprint Fiber 3015 can cut steel, stainless steel, and aluminum as well as non-ferrous metals such as copper and brass. Laser beam is transported to cutting head via passive fiber, and cutting head with 150 mm focal length optimizes performance in cutting of thin and thick material. While performance is optimized for handing metal sheets up to .160 in. thick, laser source provides power enough to process sheet materials as thick as .500 in.
|

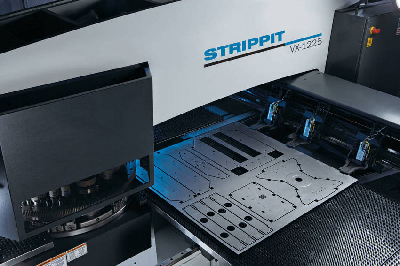

 CNC Turret Punch Press has automation-ready design.Strippit Inc.
Akron, NY 14001-1321
Sep 01, 2010
Enabling accelerated processing of thin sheet materials, Strippit VX-1225 combines 20 metric ton hydraulic ram with 48-station turret and unique table design with 330 lb capacity. Hydraulic press drive and motor system delivers axis speeds up to 530 hits/min on 1 in. centers and up to 1,750 strokes/min. Accommodating workpieces up to .140 in. thick, system has 3 programmable, re-locatable work clamps whose operational capabilities eliminate no-punch zones.
|
50 Ton Ironworker is equipped with 5 stations.Scotchman Industries, Inc.
Philip, SD 57567
Aug 13, 2010
Stations of 50514-CM include 50 ton punch station capable of making 13/16 in. hole in ¾ in. material; 4 x 4 x 3/8 in. angle shear; and 14 in. flat bar shear capable of shearing ¾ x 4 in., ½ x 8 in., 3/8 x 10 in., and ¼ x 14 in. Fourth station, rectangle notcher, can notch 2 ½ x 3 x 5/16 in. and/or 2 ½ x 2 ¾ x 3/8 in., while fifth station allows optional pipe notcher to be mounted without removing angle shear. Lock-out tag-out accommodations and all necessary guards are included.
|
 Hydraulic Ironworker offers variety of standard, optional features.Scotchman Industries, Inc.
Philip, SD 57567
Aug 05, 2010
Complete with 2 valves, 2 stroke controls, and 2 remote foot pedals, Dual Operator 95/140 has hydraulic system designed with 2 pumps for operational consistency. It has 95-ton capacity punch and 9 in. throat depth, which can punch 1 3/16 in. hole in 1 in. material. Along with 4 built-in stations, system offers 6 x 6 x ½ in. angle shear, rectangular notcher that can notch 3 x 4 x ½ in. material, and 24 in. flat bar shear that can shear up to 1 x 8 in. and 3/8 x 24 in. material.
|
 Robotic Beam Cutting and Scribing System automatically generates tool paths.Lincoln Electric Co. Inc., The
Cleveland, OH 44117
Jul 20, 2010
Robotic Beam Cutting and Scribing System automatically generates tool paths from CIS/2 part files for cuts, copes, holes, slots, notches, cutouts, and assembly markings on beams up to 40 ft long, 4-44 in. wide, and 4-18 in. high. Featuring servo-robot laser vision and FANUC ARC Mate® 6-axis robot arm, system is controlled by StruCIM® software that allows operators to load CIS/2 part files to generate code for robot to cut lengths, copes, holes, slots, notches, cutouts, and scribe for assembly.
|
Punch Press Load/Unload Systems have space saving design.Strippit Inc.
Akron, NY 14001-1321
Jul 02, 2010
As retrof for VX, V, VT, S, and ST-Series CNC turret punch presses, PA-Series Load/Unload systems provide continuous processing of materials up to .140 in. thick. With material bundle capacities of 2,500 and 3,000 kg, respectively, model PA-1225 supports sizes up to 98.4 x 49.2 in. and model PA-1530 handles materials up to 60 x 120 in. Both systems work with min sheet sizes of 500 x 1,000 mm. Space-saving design loads and unloads material from same side of turret punch press.
|
 Mobile Finger Punch enhances belt shop workflow.Flexible Steel Lacing Co.
Downers Grove, IL 60515-4200
Jun 28, 2010
Manually operated without aid of electricity or air pressure, Novitool® PUN M(TM) punches fingers into PU and PVC conveyor belts in preparation for installing vulcanized splices. Design facilitates on-location setup and use, and 50 kN punching force is created by lever pulled with one hand. Available in standard widths of 12, 24, and 36 in., punch weighs 55, 66, and 77 lb, respectively, and features open construction that enables punching wider belts in multiple steps.
|

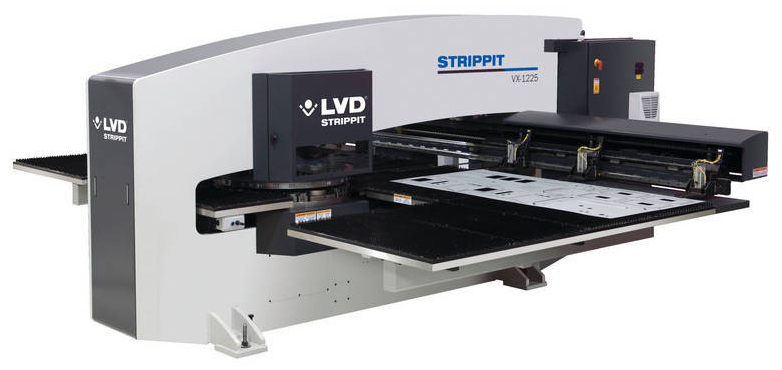

 CNC Turret Punch Presses process thin sheet metals.Strippit Inc.
Akron, NY 14001-1321
May 12, 2010
Combining dynamic, high-speed 20 metric ton hydraulic ram with 48-station turret, Strippit VX-Series delivers speeds up to 530 hits/min on 1 in. centers and up to 1,750 strokes/min. Full 1 in. feed clearance between upper and lower turret allows forming for wide range of applications. Able to handle workpieces up to .140 in., systems are equipped with 3 programmable, re-locatable work clamps; PC-based Fanuc control; double-track turret; and table with 330 lb capacity.
|

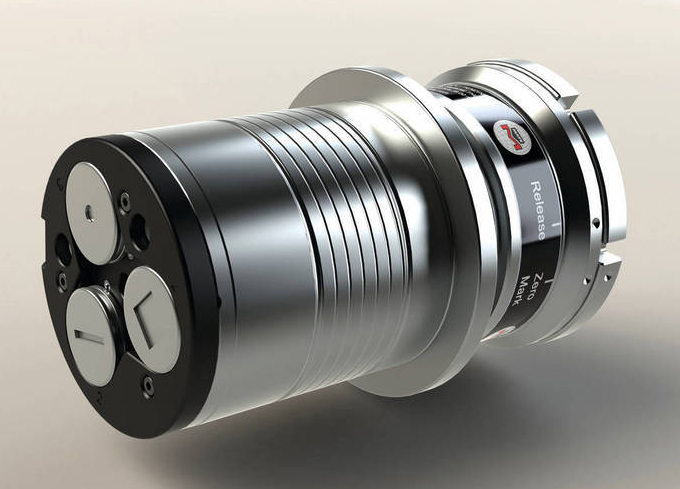

 Indexible Multi-tool achieves any angle setting on workpiece.Mate Precision Tooling
Anoka, MN 55303
Apr 06, 2010
Ultra® IMT(TM) fully indexable multitool is available in 3-station version, which can punch up to 6 mm material at up to 142 kN, and 8-station model that can punch 6 mm material at up to 62 kN. Both assemble/disassemble without tools and include zero mark to indicate start/home position and station ID window to view active station. Ergonomic systems are ported for lubrication, and feature spiral grooves in OD of holder to reduce friction between machine and holder.
|
 Knockout Punch Driver cuts up to 2 in. conduit holes.Greenlee Textron, Inc.
Rockford, IL 61109
Mar 17, 2010
Powered by 18 V Li-Ion battery, Model LS60L can punch hole for 2 in. conduit in 10-gauge mild steel and 12-gauge stainless steel in about 10 sec. Tool senses when hole is completely punched and automatically shuts off to prevent damage to punch and die. Forward handle position optimizes tool balance, and one trigger controls all tool functions. To illuminate dark areas, driver includes LED work light that also provides battery charge and tool maintenance status.
|

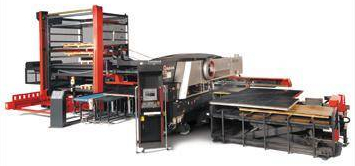

 Turret Punch/Laser suits short-run, complex parts production.Quality Tool, Inc.
Brookings, SD 57006
Feb 08, 2010
Employing servo-electric drive system, Amada® EMLK3610NT delivers high-speed, tight-tolerance punching and laser cutting in combination with forming capability and automated load/unload material handling systems. Programmed software enables real-time dynamic nesting while minimizing setup and production time as well as scrap. System delivers up to 500 hpm on 1 in. centers and handles up to 8-gauge material in 10 ft sheets (8 ft without repositioning).
|
Laser Cutting System employs dual head laser and blade.Eastman Machine Company
Buffalo, NY 14203
Jan 21, 2010
Designed to handle variety of materials, dual laser and blade cutting system features tool head with 200 W gas assist laser and 3 individually aligned and calibrated tool spindles that may be equipped with any combination of rotary and straight knife blades, notches, or punches. Machine achieves operational speeds up to 60 ips and features fume extractor, on-board chiller, touch screen operator control, linear rack and rail drive system, and diagnostic control cabinet.
|

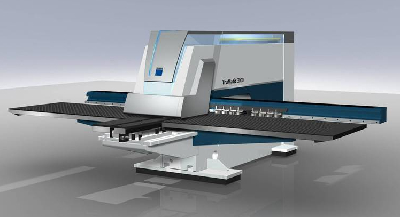

 Punch/Laser Combination Machine suits sheet metal fabrication.TRUMPF Power Tools
Farmington, CT 06032
Dec 11, 2009
Combining punching, laser cutting, and laser welding in one system, TruMatic 3000 Fiber shares fiber-guided TruDisk laser with TruLaser Robot 5020 cell in TRUMPF LaserNetwork. TruDisk 3001 provides 3 kW of laser power and can switch from one application to another in milliseconds. When combination machine is performing punching operations and laser is not required, its energy is available to robot cell, and when cell is being prepared or adjusted, it relinquishes laser to TruMatic 3000.
|
