CyberResearch, Inc.    Branford, CT 06405 2932

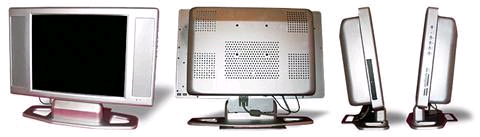

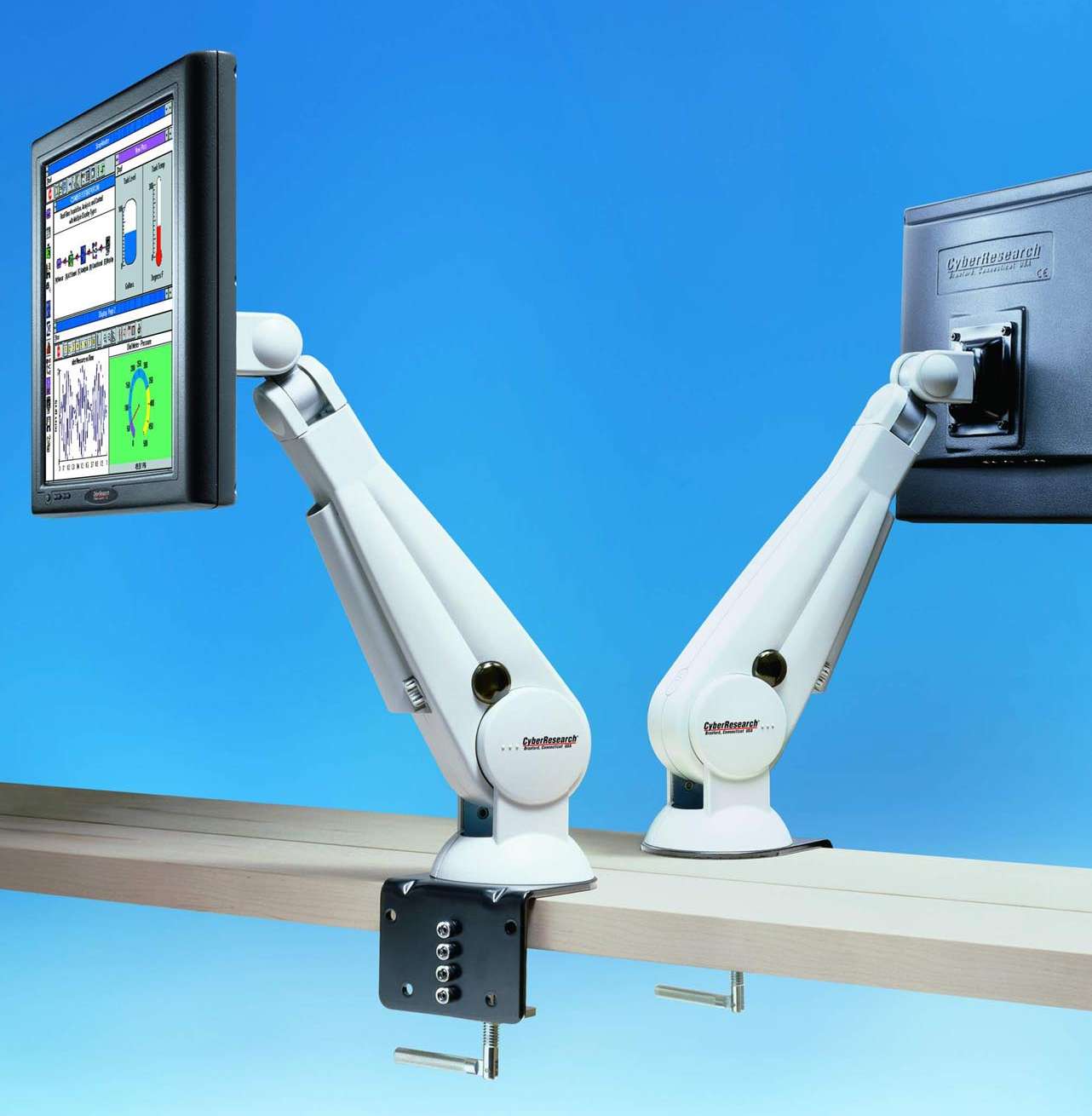

Dec 09, 2002 GDS Series consists of 3 TFT LCD displays with adjustable, clamp, through-hole, or weighted-stand arms. Series offers 15.1 and 12.1 in. screen sizes rated from 300-800 nits. Each monitor offers 2-piece, cast-aluminum shell with optional analog resistive touchscreen. Swivel arm provides 5 axes of rotation: 180° pan left and right, 180° pivot up and down, 270° clockwise and counterclockwise rotation, 90° rotation from horizontal to vertical, and 360° base swivel.

Telescript, Inc.    Norwood, NJ 07648
Dec 04, 2002 Spanish version of TeleScriptAV prompting software provides prompting, navigation, and help files in Spanish. Fully Unicode compliant, software supports all world languages and allows operation in any language using single version of program. System works with off the shelf hardware and is designed for single script prompting applications used in television studio, commercial production, corporate, and government applications.

Omni Displays    Holbrook, NY 11741

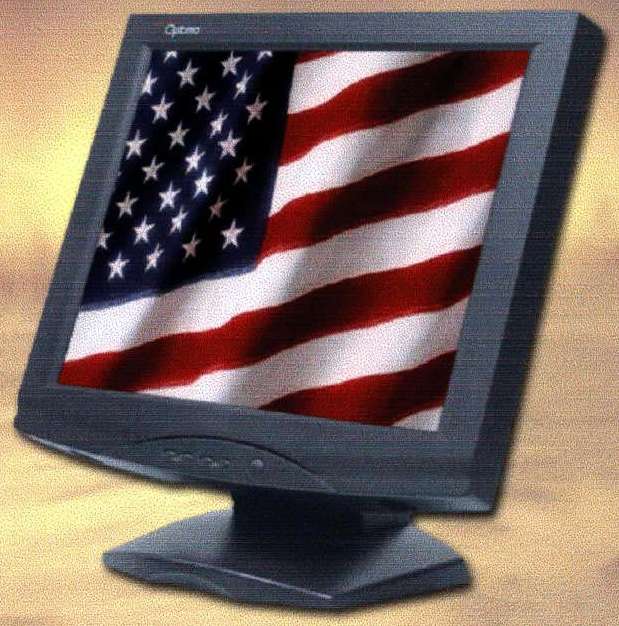

Nov 26, 2002 Offered in sizes from 12–18 in., TFT monitors are wall mountable and support up to 16.7 million colors. Touch-screen LCDs are available in resistive and capacitive variations. On-screen display resolutions range from 800 x 600 to 1,280 x 1,024. Image brightness is rated up to 250 cd/m². Standard LCDs come with or without video functionality and provide analog and analog/digital VGA input. Resolutions range from 1,024 x 768 to 1,280 x 1,024.

LUMEX Inc.    Palatine, IL 60067
Nov 20, 2002 Model LCD-S401M14TF incorporates 3 decimal points, allowing numbers ranging from 0.001 to 9999 to be displayed. Units of measure for pressure indication include psia, MPa, and kPa. Transflective unit utilizes Twisted Nematic LCD fluid against gray background. Device operates from 5 Vac supply, over temperature range of 0 to +50°C. In-line package measures 0.80 x 0.40 in. with 13 0.25 in. long leads on 0.060 in. centers. Custom features are available.

Optrex America, Inc.    Plymouth, MI 48170 2584
Nov 20, 2002 Series C-51505 20 character x 2 line displays employ negative mode panels with company's High Performance Color technology, contrast ratio up to 80:1, and 15 mA operating current. Backward-compatible to existing industry standard displays, they use flat, LC (liquid crystal) fluid to support 5V operation over -20 to +70° C temperature range. Negative mode versions are offered in white, green, and blue characters on black background; positive version are also available.

CyberResearch, Inc.    Branford, CT 06405 2932
Nov 19, 2002 Model GDO 18 provides 235 nits of brightness with SXGA resolution of 1280 x 1024 pixels, 16 M colors, 0.281 mm dot pitch, and optional resistive touchscreen. Desktop stand swivels 30° left-to-right, 5° forward, and 15° back. Only 4.5 in. thick, 18.1 in. monitor comes with ABS plastic case and withstands max operating temperature of 122°F. VGA and DVI input connectors are available at bottom of case. Display includes 1 upstream and 4 downstream USB ports.

Schott-Fostec, LLC    Auburn, NY 13021 3120

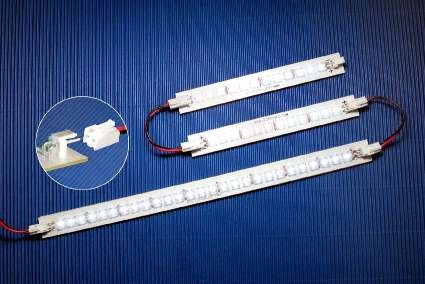

Nov 19, 2002 Red and white LED lightlines are offered in 7 sizes from 4–40 in. Custom color options include blue, yellow, and green, in addition to UV and IR wavelengths. Intelligent design monitors lighthead’s temperature and intensity through continuous feedback loop which, when combined with matrix plate, extends component life. Suited for machine vision industry, units are available with cylindrical/aperatured lenses and polarizers.

Saelig Co., Inc.    Pittsford, NY 14534
Nov 07, 2002 Hi-Lite(TM) scalable displays can join together to form almost any size. Designed as computer peripheral, plug-and-play panels do not require programming capabilities or technical support. Panels' controllers connect to PC or video feed for various modes, while text overwrite function makes immediate announcements. Containing thousands of LEDs, panels can be formed into irregular shapes for effects, or to form 2D or 3D structures.

Dolch Computer Systems Inc.    Fremont, CA 94538

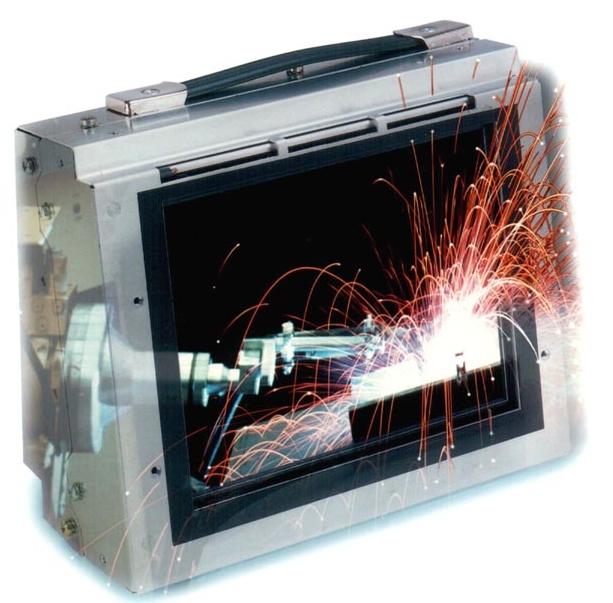

Nov 01, 2002 MilPAC(TM) computer offers full metal enclosure, which protects unit from effects of indoor/outdoor mobile computing, while its aluminum frame shields internal parts from shocks up to 40g (non-operating). Door shields are rated up to IP 65 protection for dust, wind, and moisture exposure. Wireless display communicates through peer-to-peer wireless LAN 802.11b protocol. Unit is equipped with 8.4 in. transflective, daylight-readable touch screen.

Ross Systems & Controls    Savannah, GA 31405 1400
Oct 22, 2002 Training and testing center is comprised of stand alone panel that contains functioning electrical schematic that permits user to change control circuitry to experiment with new configurations. Measuring 4 x 8 in., panel includes banana clip style connectors, stop/start circuits, on and off relay delays, control relays, selector switches, load cells, digital indicators, temperature probes, and pressure transducers. PLC and servo controls are also available.

Dolch Computer Systems Inc.    Fremont, CA 94538
Sep 26, 2002 FlexPAC(TM) portable computer is available with optional mobile touch screen display that communicates through peer-to-peer 802.1 lb protocol up to 150 ft away, regardless of application. It features Pentium® 4 processor running at 2 GHz, system memory up to 1 GB, and 16 MB of video memory. Tri-circuit cooling system can handle up to 150 W of heat dissipation. Up to 6 expansion slots are available for full-sized PCI or ISA add-in cards.

GDS & Associates Systems Ltd.    Regina, SK S4S3R6  Canada

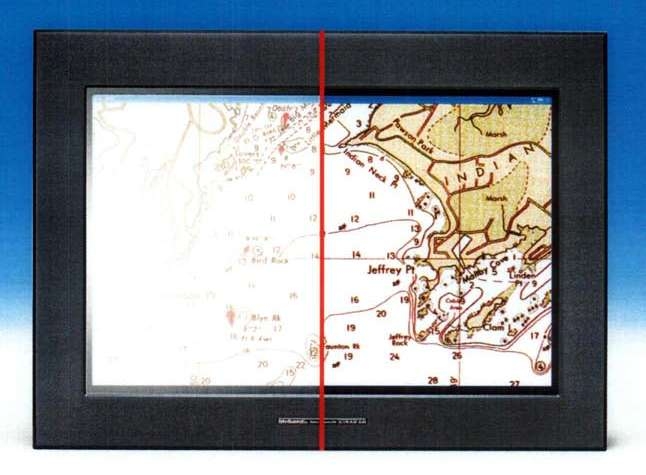

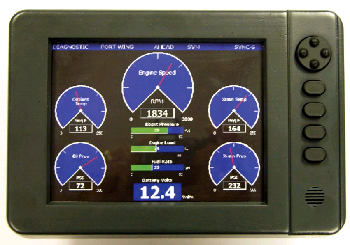

Sep 19, 2002 Morpheus monitors incorporate Thermal Management Systems that allow LCDs to be used in direct sunlight, unharmed. Monitors are available in 3 sizes with 500:1 manual/automatic dimming range: 8.4 in. models offer 800 x 600 resolution, 1,200 cd/m2 brightness and SVGA input signal; 10.4 in. models provide 640 x 480 resolution, 1,700 cd/m2 brightness and VGA input signal; and 12.1 in. models offer 800 x 600 resolution, 1,700 cd/m2 brightness and SVGA input signal.

Bivar, Inc.    Irvine, CA 92618 2593

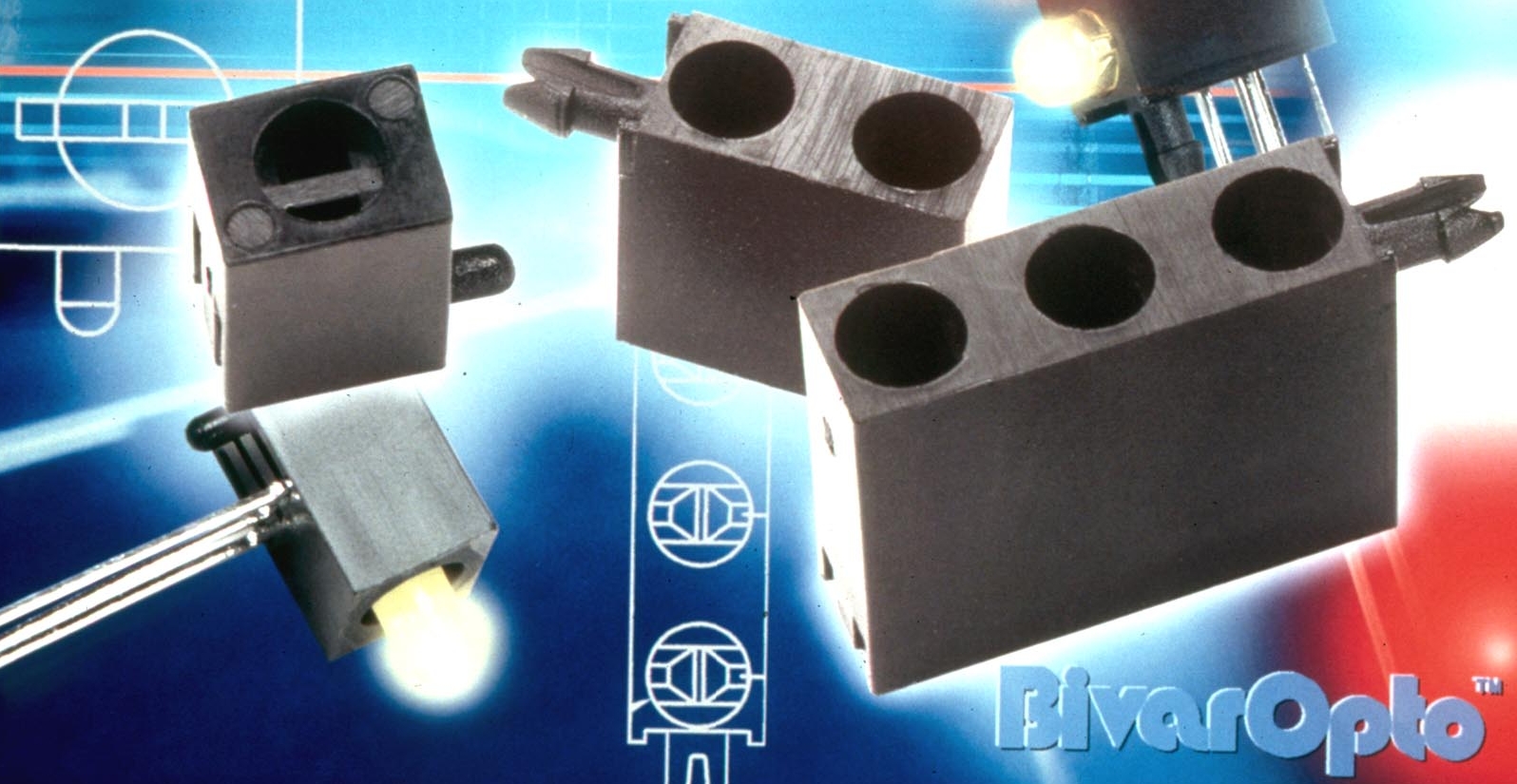

Sep 19, 2002 H-LP Series holders, suitable for single, bi-level, and tri-level T-1 (3 mm) LED display applications, are manufactured from black, 94-VO rated nylon material. They provide PCB retention and uniform elevation during processing and handling, making them suitable for industrial environments. LEDs are perfectly aligned on equally spaced centers. With bifurcated locating pin, widths from 0.170 in., and rigid retention, holders allow virtual side-by-side placement.

NKK Switches    Scottsdale, AZ 85260-3420

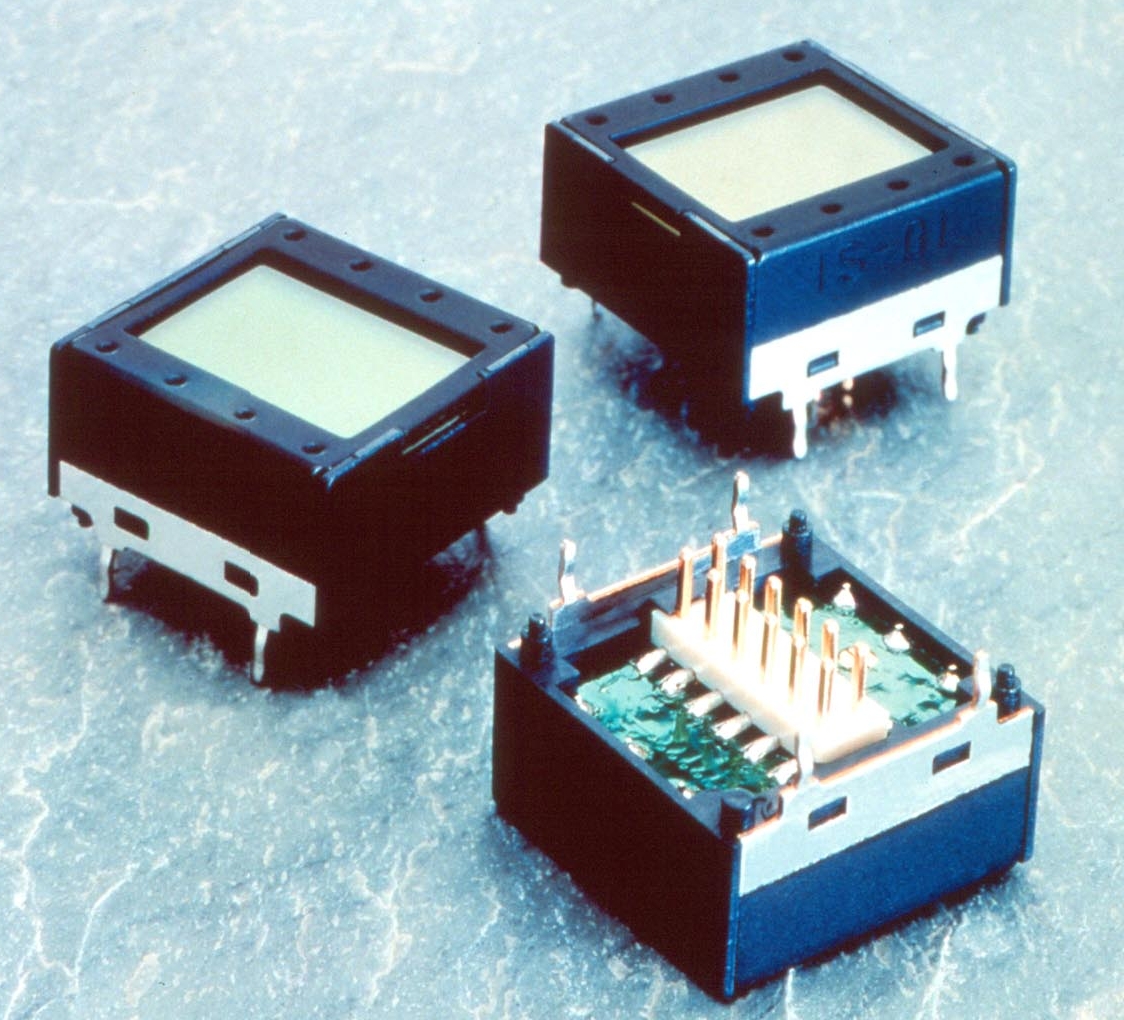

Sep 05, 2002 SMARTSWITCHâ„¢ STN, with 13.9 x 10.6 mm viewing area and 36 x 24 pixel resolution, suits electronic devices that require display of graphics, text, or moving images. It can be used in 1U rack-mount units and in applications where 7-segment displays and LED matrices do not provide enough information. Module is offered with straight PC terminals and features multi-color LED backlighting with standard or super bright options.

Optrex America, Inc.    Plymouth, MI 48170 2584

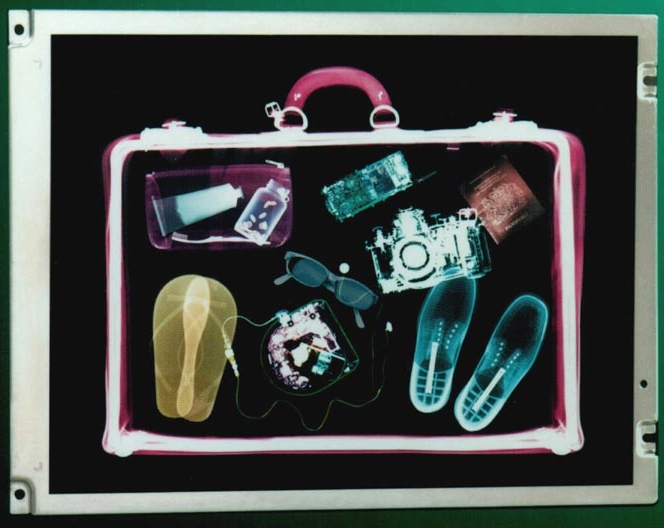

Aug 29, 2002 Digital 10.4 in. VGA TFT display, with user-selectable reverse scan and both 3.3 V and 5.0 V input voltage, handles 150 G shocks and 1 G vibration, and operates over temperature range of 0 to 50°C. Backlight CCF lamps have estimated life of 50,000 hr. Display has 260K colors, luminance of 400 nits, 640 x 480 dot pixel display format, contrast ratio of 300:1, and viewing angle of 120°. Applications include test, measurement, diagnostic equipment, and industrial controls.

Wilbrecht Ledco, Inc.    Saint Paul, MN 55108

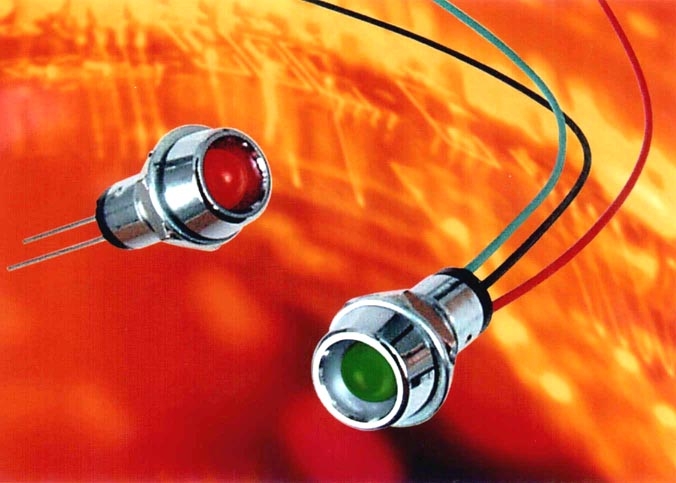

Aug 20, 2002 CR Series panel mount LEDs have reflective, nickel-plated brass housings that stand up to tough use and harsh environmental conditions such as automation control panels, instrumentation, and front panel fault indicators. Equipped with neoprene gasket/washer, chrome finish LEDs are suitable for use in water-tight applications. Single color, bi-color, tricolor, and blinking LEDs have built-in resistors for use in 5-60 Vdc and 120 Vac.

CyberResearch, Inc.    Branford, CT 06405 2932

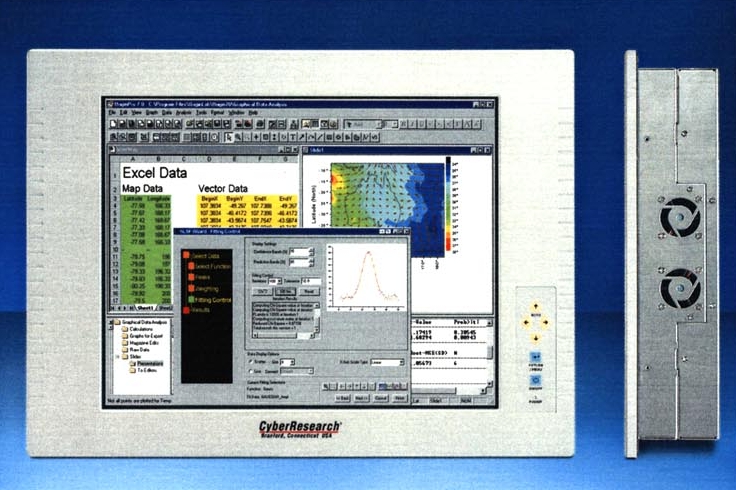

Aug 15, 2002 MPD Displays, with brightness to 1750 nits, are offered with screens from 12 to 17 in. diagonal. Cast-aluminum front panel is sealed for NEMA 4 protection against contaminants such as water, oil, and dirt. All models are offered with optional touchscreens and can be mounted on display swivel arms or brackets via 75 and 100 mm VESA-standard mounting holes on rear panel. Digital video interactive (DVI) input port is provided on 15 and 17 in. displays.

Inor Transmitter, Inc.    Sturtevant, WI 53177

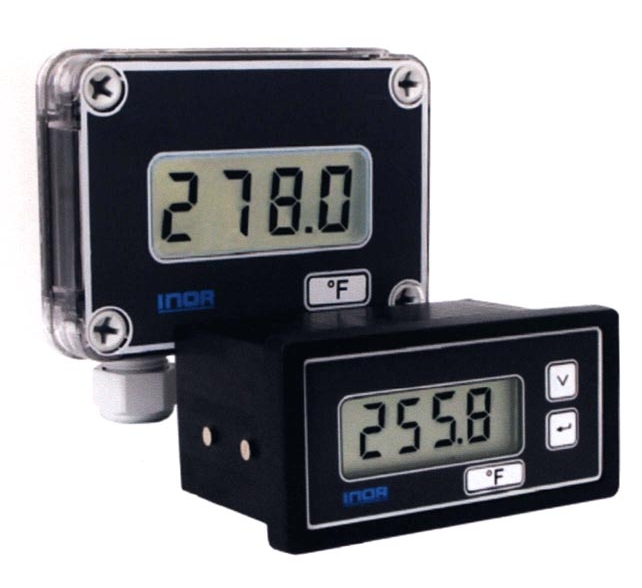

Aug 12, 2002 Digital indicators install directly in 4-20 mA loop without need for external power. Two pushbuttons allow configuration between -1999 and 9999. Voltage drop is just above 5 V, allowing displays to be connected to most 2-wire transmitters with normal output. LCD-W11 mounts on wall and contains scaling pushbuttons inside splash-proof housing. LCD-P11 mounts in panel and contains pushbuttons behind splash-proof front. Both indicators are HART transparent.

Xycom Automation Inc.    Saline, MI 48176

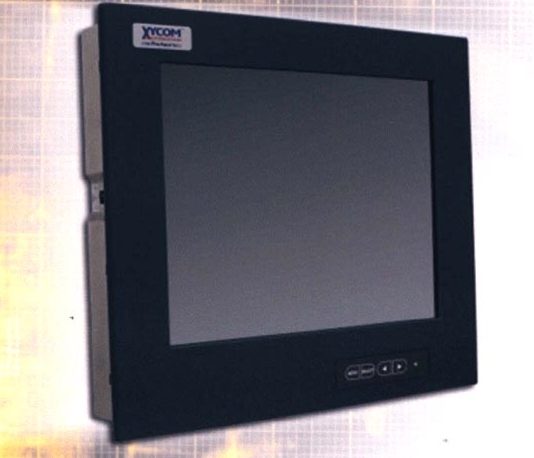

Jul 29, 2002 Model 5015T 15 in. flat-panel LCD monitor displays images with resolutions up to 1024 x 768 pixels and refresh rates up to 75 Hz. It has typical brightness of 300 nit, 400:1 contrast ratio, and 170° viewing angles. Integral scaling engine allows lower resolution images to be smoothly stretched to fill full 15 in. viewing area. Metal construction, with powder-coated, die-cast, aluminum bezel, meets NEMA 4/4X/12 sealing requirements and Class I & H, Division 2 Hazardous Location installations.

Densitron Corp.    Santa Fe Springs, CA 90670
Jul 16, 2002 Model LM5575 applies 64 x 126 pixel display format to LCD panel that measures 93 x 56 mm. Module utilizes FSTN technology for readability, and can be used to provide distinctive user interface on portable/handheld and fixed equipment. Self-contained display with on-board single-chip display driver (SED1575) includes onboard RAM and DC/DC converter. With TAB construction, module presents overall thickness of 2 mm and allows direct plug-in to ZIF connector.
