Raymarine Inc.    Nashua, NH 03063
Mar 01, 2005 Multifunction E-Series combines 100-Megabit networking and video integration with chartplotter, radar, and digital fishfinder technologies. Available as 8.4 in. Model E-80 and 12.1 in. Model E-120, each is equipped with ultra bright, sunlight viewable TFT LCD display for visibility in all lighting conditions, including tropical sun. Both also include 4 video inputs for connection to on-board cameras, DVD players, or satellite television.

Para Light Corp.    Walnut, CA 91789

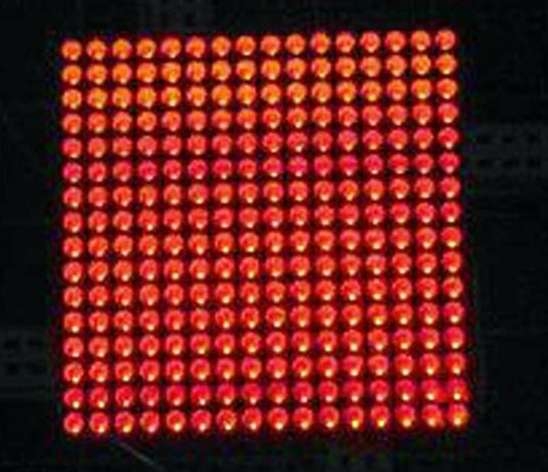

Feb 25, 2005 Measuring 40 x 40 mm, Series 2AA0 features 16 x 16 array with X-Y select and 1.70 mm diameter pixels. Units can be stacked vertically or horizontally for use in information systems, graphics, and advertisement sign boards. Operating in temperatures from -35 to +85°C, displays are available in red, green, orange, and yellow and in both common anode and common cathode versions.

NEC Electronics    Santa Clara, CA 95050
Feb 23, 2005 Measuring 15 in., Model NL10276BC30-17 XGA color LCD Module provides luminance of 300 cd/m² and wide color gamut of 72% of NTSC. Ultra-advanced, super-fine TFT technology enables wide viewing angle of 170° with contrast ratio greater than 10:1. Module can realize simultaneous display of 16.77 million colors by supporting LVDS 8-bit signal output. Unit is suited for medical imaging, motion picture editing, and broadcasting applications.

OTEK Corp.    Tucson, AZ 85714
Feb 17, 2005 Model LBD comes in loop-powered version for 4–20 mA loops of externally powered 5–48 Vdc, 90–265 Vac, or USB. Loop-powered model is used as display with 4 alarm indicators, 4 digits, 101 automatic tricolor backlight, and serial I/O. External power allows Model LBD to use all features such as 4 SPDT relays; 4-20 mA retransmission; RS232, 485, or USB communications; and complete command set. Nuclear, Mil-Spec, Industrial, and Intrinsically Safe models are available.

Gateway    Irvine, CA 92618
Feb 15, 2005 Gateway 30 in. HD-ready LCD TV can be paired with media center or PC and offers widescreen format viewing. Viewing angle of 170° displays images from anywhere in room. It weighs 30.9 lb and can be wall or table mounted. Unit measures 20.5 x 29.13 x 4 in. Featuring resolution of 1280 x 768, contrast ratio of 750:1, and peak brightness of 600 nits, LCD TV offers variety of input sources and NTSC tuner for viewing standard analog TV signals.

Electro Industries/Gaugetech    Westbury, NY 11590
Feb 10, 2005 Multifunction LED Displays feature master/slave capability, allowing use of 3 multi-line LED displays configured to voltage, current, and power. With additional displays, users can obtain 9 LED values from one meter simultaneously. Used as master polling device and volts display, Model P40N broadcasts data to Amp Model P41N and Power Model P43. Technology allows Nexus Meter to have multiple display capability using 1 display port with non-scrolling metering parameters.

Elo TouchSystems, Inc.    Menlo Park, CA 94025
Jan 31, 2005 Models 1746L and 1749L are 17 in. rear-mount LCD monitors with IntelliTouch surface wave touchscreen and injection-molded minibezel with watertight seal. Model 1749L offers viewing angle of 170° V x 170° H, 500:1 contrast ratio, and 250 cd/m² brightness. Featuring same form factor, Model 1746L provides 140° x 140° viewing angle with similar contrast and brightness. Both have built-in support for serial and USB touch interface and remote multilingual on-screen display.

Electro Industries/Gaugetech    Westbury, NY 11590
Jan 28, 2005 Suited for substation automation applications, P60N touch screen HMI display for Nexus series meters is offered with on-line historical trending. This allows display to be used for chart recording applications, delivering chart-recorded data in real-time on graphical touch-screen LCD. Features include 320 x 240 pixel, cold-cathode fluorescent display; ability to view multiple meters as well as out of limit alarms; and harmonic spectrum presentation.

Shuttle Inc.    Deutschland   Germany
Jan 27, 2005 Model XP17 TempAR 17 in. active-matrix LCD TFT display features 1,280 x 1,024 pixel native resolution. Protected by tempered glass panel with anti-reflective coating, unit offers 500:1 contrast ratio for sharp, crisp images. It is suited for content design professionals and serious gamers.

CyberResearch, Inc.    Branford, CT 06405 2932
Jan 20, 2005 Model MRA 15SA 15 in. TFT LCD monitor includes 8-level light sensor and circuits that adjust brightness to compensate for changing ambient light. NEMA 4 seal is provided between screen and aluminum front bezel. Connectors on rear panel include dc power input, analog VGA, DVI input, S-Video input, and composite video input. Optional analog-resistive touchscreen is available and includes RS-232 connector.

Kyocera Display America, Inc.    Plymouth, MI 48170
Jan 11, 2005 Available in 8.4-15 in. sizes, SVGA and XGA industrial TFT LCD modules deliver true color fidelity for flat panel displays. Color transformation algorithm, implemented in hardware, provides real-time, on-the-fly processing on pixel-by-pixel basis to match colors specified in data source. It independently controls chromatic and achromatic characteristics of color construct, and supports 18- and 24-bit color as well as full motion video.

Westinghouse Digital Electronics    City of Industry, CA 91745
Jan 10, 2005 Monitor line, which consists of industrial display chassis with HD-Gradeâ„¢ LCD panels, provide customized display solutions for use in kiosks, gaming devices, and electronic signage. Wall-mount, flat-panel monitors are offered in 17 in. size with 350:1 contrast ratio and 19 in. size with 600:1 contrast ratio - models LID-17v5 and LID-19v2, respectively. Both have 5:4 aspect ratio, 1280 x 1024 native resolution, and 16.2 million display colors.

Highlites, Inc.    Waterbury, CT 06704
Jan 06, 2005 Consuming 4 W, Series ZBLED employs indirect illumination system that clearly marks building exits for commercial, institutional, and industrial environments. High-intensity red or green LEDs are not visible from looking at stencil cutout, yet signs provide contrast and clarity. Available in ac-wired or with self-powered battery backup, units can be wall-, end-, or ceiling-mounted. Canopy and second-face convert ZBLED units into double-faced exit signs.

Sharp Microelectronics    Camas, WA 98607 9489
Dec 23, 2004 Consuming 4.7 W of power, LQ064V3DG01 Transmissive TFT-LCD module is backlit by 2 CCFTs and has 350 nits total brightness. Shock-resistant unit has landscape display orientation and is ROHS-compliant. With dot pitch of 0.204 (H) x 0.204 (V) and active area of 130.56 x 97.92, module features 262,144 colors and 640 x RGB x 480 dot format. It can be used in control systems, factory automation, handheld instrumentation, and test and measurement equipment.

Smart Technologies Inc.    Calgary, AB T3C 0M5  Canada
Dec 23, 2004 Actalyst™ interactive overlays are mounted on plasma displays or LCDs, making them touch sensitive. They are compatible with 17 brands of flat-panel displays, in sizes from 37–63 in. DViT™ Digital Vision Touch technology uses digital cameras embedded in overlay's frame to detect contact on screen. By touching overlay, users can access and control any customized multimedia content, computer application, website, CD-ROM, or DVD, all via attached computer.

Pro-Lite, Inc.    Costa Mesa, CA 92626

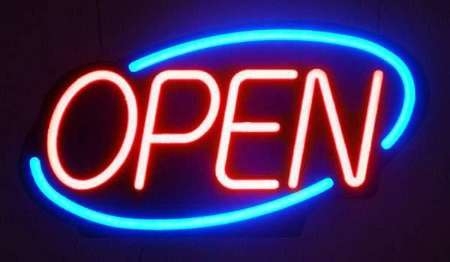

Dec 22, 2004 Suited for indoor and outdoor applications, edge-lit LED Sign is shatter-proof, glass-free, and produced with unbreakable materials. It never leaks gas and is environmentally friendly. Using 18 Vdc, 9–10 W, sign features standard 12 in. character height. It includes on/off switch and is suited for hanging behind window. UL and CUL listed unit can flash or remain static, change colors, do animations, and spell out word vertically or horizontally.

Pro-Lite, Inc.    Costa Mesa, CA 92626
Dec 16, 2004 XPression name badges use red LEDs for readability and contain micro magnet for attachment to shirt pocket. Up to 120 characters can be programmed for display via Windows-compatible PC software, and area is provided for displaying custom logo or web address. Xpression SC serial cable-programming model comes with badge, serial cable, cell battery, and XPression software CD. XPression IR model also adds IR transmitter.

Telescript, Inc.    Norwood, NJ 07648
Dec 10, 2004 Models FPS-150-F, FPS-120-F, and DV-8 are 15, 12, and 8 in. LCD teleprompters, with folding design and custom cases. Largest model weighs 15 lb and has viewing range up to 40 ft with 450 or 0–1,800 nits of brightness. Weighing 10 lb, FPS-120-F has 25 ft viewing range with 300, 700, or 1,500 nits of brightness. Flat panel DV-8 weighs 5 lb and offers viewing range up to 15 ft with 300 nits of brightness. All units feature anti-reflective glass.

Saelig Co., Inc.    Pittsford, NY 14534
Dec 09, 2004 HERCULES Medical Monitors(TM) feature fanless, sealed aluminum housing with IP 65 protection. Water-tight construction means displays can be disinfected and washed down. Through VGA connector, units connect to standard PC or HERCULES Medical PC. Offered in B/W or color, analog SXGA displays range in size from 15-21 in. and accept composite, S-video, or digital inputs. Front glass is anti-reflection coated, and image zoom and shrink capability is provided independently.

Three-Five Systems, Inc.    Tempe, AZ 85281
Dec 09, 2004 Suited for applications in medical, industrial, and retail environments, 15, 17, and 19 in. displays are offered with resistive or capacitive touch screen technology. Each display, available in desktop, rack-mount, or panel-mount configurations, enables creation of graphical, flexible input interfaces that support multiple languages and applications. Changes to application or device can be implemented through software-based screen displays.
