CI Displays    Holbrook, NY 11741
May 11, 2005 Sunlight-readable LCD displays are offered with passive backlight option, as transflective displays that reflect ambient light out, and as hybrid solution comprised of transflective with passive enhancements. Passive enhancements include optical management films, polarizers, diffusers, and various coatings, all combined to address PCB space, power-consumption, and thermal-management issues. Ruggedized displays are custom designed to meet application requirements.

RGB Spectrum    Alameda, CA 94501
May 05, 2005 Suited for mission critical operations, MediaWallâ„¢ 2000 accepts up to 6 graphic and 6 video inputs and displays them simultaneously on up to 4 screens. It supports inputs up to 1920 x 1200 and HDTV with full resolution and real-time performance without dropped frames. Packaged in 2U steel rack enclosure, plug-and-play unit features secure, embedded OS; network-independent operation; and remote, Web browser-accessible control interface.

RGB Spectrum    Alameda, CA 94501
May 05, 2005 Suited for mobile and harsh environments, custom LCDs provide real-time performance and come in 20–55 in. screen sizes with up to 1920 x 1200 pixel resolution. They support Hi-Res RGB, HDTV 1080i/720p, S-Video, component, and composite video, and optional DVI inputs and are offered with resistive, capacitive, surface wave, or IR touch screen integration. Features include web-based control, smooth zoom/pans, and dynamic window sizing and positioning.

NEC Electronics    Santa Clara, CA 95050
May 05, 2005 Models NL160120AC27-05 and NL160120AM27-06/06A are 21.3 in. ultra-extended graphic array (UXGA), amorphous silicon TFT LCDs that utilize SA-SFT technology to offer 170° viewing angle and contrast ratio greater than 10:1. Color model NL160120-AC27-05 features direct, back-light system with 450 cd/m² brightness, while monochrome models NL160120-AM27-06/06A feature 1800 cd/m² brightness. Both incorporate switchable 10-bit internal LUT for customizable gray-scale setting.

NEC Electronics    Santa Clara, CA 95050
May 05, 2005 Touch panel-equipped NL2432HC17-01B provides 2.7 in. quarter video graphic array (QVGA), amorphous silicon TFT LCD with 180 cd/m² brightness, 400:1 contrast ratio, and 25 ms response time. Color display features low power consumption of 220 mW, making it suited for use in GPS-enabled portable terminals as well as smart phones that combine cellular phone and PDA functions.

NEC Electronics    Santa Clara, CA 95050
May 05, 2005 Designed for environments subject to natural outdoor light, 5.5 in. NL3224BC35-22 facilitates viewing of text and graphics with 750 cd/m² luminance, low screen reflectivity, and 500:1 contrast ratio. Quarter video graphics array (QVGA), amorphous silicon TFT LCD utilizes Super-Transmissive Natural Light TFT (ST-NLT) technology. Able to operate in temperatures from -10 to +70°C, product consumes 3.75 W of power.

NEC Electronics    Santa Clara, CA 95050
May 05, 2005 Amorphous silicon SVGA NL8060BC26-27 TFT LCD features 400 cd/m² brightness and 700:1 contrast ratio. Utilizing SA-SFT technology, 10.4-inch display provides viewing angle of 170°. Operating temperature range is -10 to +70°C. With compact design weighing 205 g, 6.5 in. VGA NL6448BC20-18D features 600:1 contrast ratio and 160° horizontal and 140° vertical viewing angles. It consumes 4.4 W of power.

Syntax Groups    City Of Industries, CA 91789
Apr 22, 2005 With black bezel design, Oleviaâ„¢ LT42HVi incorporates 42 in. widescreen, Super-IPS, LCD panel with 16:9 aspect ratio, 1366 x 768 native resolution, and 1200:1 dynamic contrast ratio. It integrates iDEA digital video processing technology, has HD built-in with de-interlacing up to 1080i, and outputs 800 nit brightness. Along with 178° x 178° wide viewing angle, unit offers choice of horizontal- or vertical-mounted, 25 W surround sound, detachable speakers.

Draper, Inc.    Spiceland, IN 47385 0425
Apr 21, 2005 Available in NTSC, HDTV, and widescreen formats with various viewing surfaces, Salara features extruded elliptical case and unobtrusive, motorized screen. Plug-and-play functionality facilitates installation, requiring user to hang screen and plug it in to standard ac outlet via included 10 ft power cord. Screen can be controlled by wireless wall switch or remote control.

Bivar, Inc.    Irvine, CA 92618 2593
Apr 20, 2005 Single-digit, 7-segment BD Blue Series offers 5 digit heights from 0.301–1 in. in 24 styles and models. For uniformity, each segment features 2 chips in series. Connection and choice of common anode or common cathode circuitry enables use in any numeric display configuration. Utilizing compounded diffused lens for even color distribution, Pb-free displays feature standard wavelength of 465 nm and are suited for medical and life support systems, avionics, and industrial controls.

Fluid Components Intl.    San Marcos, CA 92069 5115

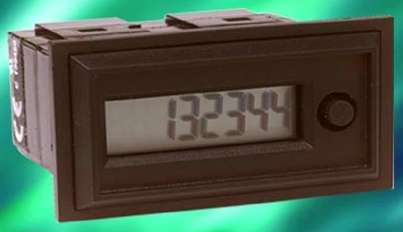

Apr 19, 2005 DM remote- and panel-mount meters provide digital readout of flow, totalized flow, and temperature from company's ST and GF Series thermal-dispersion mass flowmeters. Loop-powered DM10 LCD readout meter, scalable to +1,999 digits, features 1 in. high characters. AC-line powered DM15 features red LED readout, scalable to +9,999 digits, and programmable alarm set-point. Panel-mount DM20 flow totalizer provides local or remote digital readout on 8-digit display.

Pro-Lite, Inc.    Costa Mesa, CA 92626

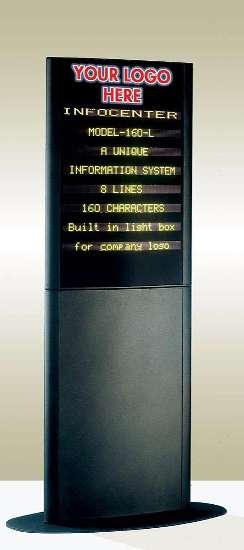

Apr 19, 2005 InfoCenter(TM) features solid-state circuitry that curves around surface and achieves viewing angle of over 160°. It delivers pre-scheduled messages instantly from hand-held keyboard or computer using Windows PC software. Memory capacity is over 99 pages, each with 8 lines and 160 characters of information. Scratch-resistant system uses 1.2 in. illuminated characters, is available with red or green LEDs, and complies with ADA standards.

Kyocera Display America, Inc.    Plymouth, MI 48170
Apr 18, 2005 Series HR Transflective STN LCD Modules provide high-contrast black pixels on silvery, winter-white background. Available with white LED backlights, units operate from -20 to +70°C. Graphic LCDs come in 2.8 in. diagonal size with 128 x 64 dot pixel format, 4.7 in. diagonal with 160 x 128 format, and 5.2 in. diagonal with 260 x 64 format. Display formats for Character Modules include 40 character x 2 line, 40 character x 4 line, 16 character x 2 line, and 20 character x 4 line.

North American Video    Brick, NJ 08723
Apr 14, 2005 Flat screen displays, offered in 15, 17, and 20 in. models, come with jack pack for multiple inputs and VESAâ„¢ mounting interfaces. With 1024 x 768 resolution and 250 cd/m2 brightness, NAVLCD15 offers 400:1 contrast ratio, built-in speakers, and distortion-free viewing. NAVLCD17, offering 1280 x 1024 resolution, has 450:1 contrast ratio. For viewing by larger audience, NAVLCD20 offers 500:1 contrast ratio, 800 x 600 resolution, and 500 cd/m2 brightness.

Global Display Solutions    Bingley West Yorks BD16 1PE  United Kingdom
Apr 14, 2005 Optically-Enhanced TFT Displays are designed for environments with high ambient lighting conditions. Measuring 37 in., touchscreen LCD Display utilizes integrated optical imaging technology to enable user interaction by touch. LCD Displays are available in sizes 6.4–19 in. and are designed for upgrade compatibility to ensure product continuity. Piezo Inverter is designed for multi-lamp backlight systems such as LCD TVs, high brightness LCD solutions, and headrest displays.

STMicroelectronics    Lexington, MA 02421
Mar 30, 2005 Model STV8179F drives vertical coil of deflection yoke to scan electron beam over screen. This, in conjunction with horizontal deflection and beam modulation, creates viewable images. Unit provides peak-to-peak current up to 3.6 A in operating mode, and sustains high output flyback voltages up to 100 V to allow short retrace times required in 2H and High-Definition TVs. Heptawatt package is pin-to-pin compatible with company's linear vertical boosters.

One Stop Displays    Winter Park, FL 32789
Mar 23, 2005 Offering 128 x RGB x 160 resolution, 1.8 in. Model OSDC180-2I provides 127 pixel/in. density, and features parallel data interface supporting 6- to 18-bit parallel RGB digital data. Frame rate is configurable from 60–120 and is capable of animation or video. Display supports typical brightness from 25–100 nits and 262 k color depth for photo quality images and video.

L-3 Communications, Electrodynamics, Inc.    Rolling Meadows, IL 60008

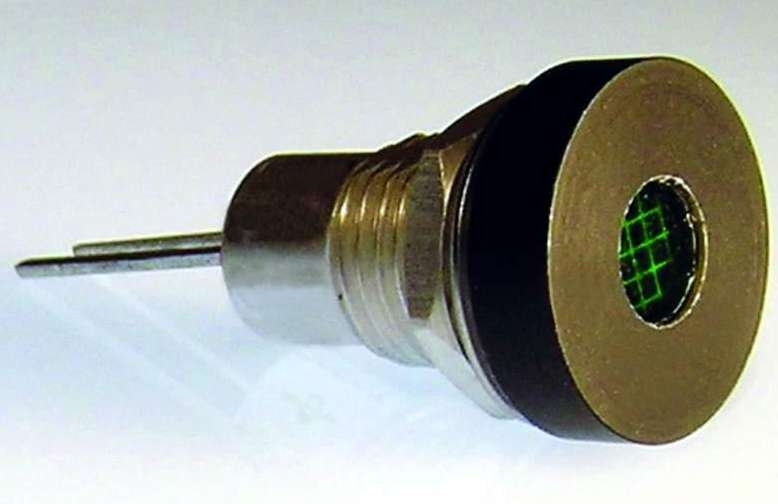

Mar 22, 2005 Able to withstand severe environments, Series ML2030E features solid front housing, clear chromate-finished body with black anodized front bezel, and EMI screen. Panel seal is accomplished by one-piece aluminum housing and bezel with flour silicone o-ring. Terminals can be straight leads or solder loops. Standard display colors are red, yellow, and green with option of diffused or non-diffused output. Indicator operates in temperature range of -55 to +100°C.

Dosch Design US Shipping Ctr.    Altoona, PA 16602
Mar 11, 2005 High Dynamic Range Image Collections are optimized for industrial design, technical visualization, and animation. Industrial Reflections offers 60 HDRI environments, which support appearance of metal, glass, car paint, and other industrial surfaces. Radiant Skies contains 113 HDR images of computer-generated skies for reflection and lighting effects. Compatible with Windows and MAC, images are provided in spherical map, light-probe, vertical-cross, and horizontal-cross formats.

Lascar Electronics Inc.    Erie, PA 16506
Mar 08, 2005 Model OEM 4-LED communicates via serial interface, making it suited for microcontroller-based applications. Each of 7-segment digits and 3 decimal places can be addressed individually and use low-power, red LEDs to produce 0.31 in. high display with typical current consumption of 20 mA at 5 V. Connection to display is via 12-pin DIL with 0.1 in. pitch.
