Synology Inc.    Taipei 103  Taiwan
Jan 08, 2009 Designed for SMB and corporate users, DS209+ 2-drive SATA NAS server can be configured for RAID 0/1 and is capable of reading at 42+ Mb/sec and writing at 36+ Mb/sec. Features include gigabit LAN port, external storage expansion via eSATA port, 2 hi-speed USB ports, and smart fan that adjusts speed according to environmental conditions. Compatible with Windows®, Macintosh®, or Linux-based networks, server comes with AJAX-based Disk Station Manager (DSM) 2.0 NAS management software.

Men Micro Inc.    Lago Vista, TX 78645-4160
Jan 07, 2009 With computing flexibility tailored to application-specific requirements, A20 supports Intel processors - Core 2 Duo to Celeron M - and provides space for two 64-bit/66 MHz PMC or 2 XMC modules. Its 2eSST functionality, via Tundra TSI148 bridge controller, doubles theoretical VMEbus transaction bandwidth to up to 320 MBps. In addition to VGA, GbE, SATA, and USB I/O, this shock- and vibration-resistant, single-slot board features up to 4 GB DDR2 RAM main memory and CompactFlash socket.

Lanner Electronics Inc.    Sijhih City Taipei 221  Taiwan
Jan 07, 2009 Suited for network security and acceleration applications, FW-7872 is built around Intel 945GME chipset and provides Core 2 Duo and Celeron M support, up to 4 Gb DDR2, 4 GbE LAN ports, and 2 internal 2.5 in. drive bays in 1U half-rack network appliance. Remote management features, via IPMI and IP-KVM support, let administrators monitor system and perform maintenance tasks. High-availability features include hardware bypass and redundant power supplies.

Men Micro Inc.    Lago Vista, TX 78645-4160
Jan 07, 2009 Based on 3U CompactPCI®, F215 utilizes SA-Adapters(TM), mounted directly on board via 9-pin D-Sub connector, for physical layer to be realized individually for each channel. It includes 2 CAN interfaces, 2 UARTs, 8-channel binary I/O interface, as well as RS232/422/485. Board also includes FPGA that is loaded automatically after power-up from 4 MB serial Flash. Designed for rugged environments, it operates in temperatures from -40 to +85°C.

ADLINK Technology Inc.    Irvine, CA 92618
Jan 07, 2009 Based on ETX® 3.02 form factor standard, ETX-AT supports high-resolution CRT, single/dual channel LVDS, and TV-out. With power consumption below 10 W, it includes 45 nm Intel® Atom(TM) Processor N270 with 512 kByte L2 cache and thermal design power of 2.5 W peak. It supports up to 2 Gb DDR2 memory on single SODIMM, also incorporating Intel® based 10/100BASE-T Ethernet port, dual-port SATA controller, 4 USB 2.0 ports, 2 serial ports, parallel port, and PS/2 keyboard/mouse interface.

Men Micro Inc.    Lago Vista, TX 78645-4160

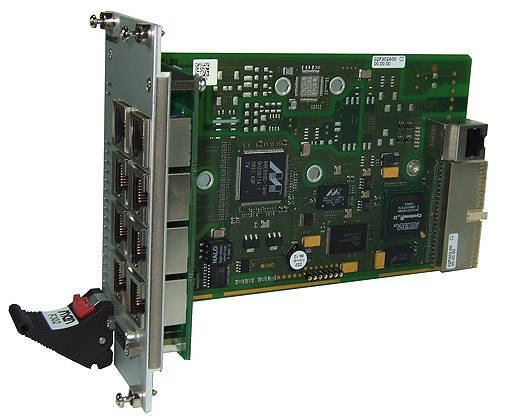

Jan 07, 2009 Offering 8 fast-Ethernet channels at front via RJ45, M12 or D-Sub, F302, 3U CompactPCI card suits application in communication systems. Controlled by FPGA-based low-power CPU, device consumes less than 7 W. It has 12 hp front panel (RJ45) or 16 hp front panel (M12 or D-Sub). With operating temperature range between -40 to +85°C, fault tolerant product restores itself on its own.

Comtrend    Irvine, CA 92618
Jan 07, 2009 Using CT-5376, broadband customers can move HD multimedia content within network via integrated 4-port 10/100/1000 BASE-T Ethernet switch as well as integrated 802.11n WiFi Access Point capable of achieving WiFi throughput in excess of 100 Mbps. Carrier-class device also provides USB 2.0 Host port, which can function as Print Server or Digital Media Server when USB Mass Storage Device is attached. Additional 10/100/1000 FlexPort(TM) can operate as fifth LAN port or GbE WAN port.

Futronic Technology Co. Ltd.    Kwai Fong, N.T.   Hong Kong (prc)
Jan 07, 2009 Combining fingerprint Match on Device and ISO14443A Mifare card Reader and Writer into one device, Model FS25 supports both 1 and 4 KB Mifare card and is suited for 2-finger authentication. Device eliminates privacy issues since it is not necessary to store user's fingerprint data anywhere in system. Designed with 16 x 24 mm crown glass finger scanning window, reader/writer includes Live Finger Detection function for spoof prevention.

PNY Technologies    Parsippany, NJ 07054
Jan 07, 2009 Based on unified architecture, NVIDIA Quadro® FX 5800 by PNY and NVIDIA Quadro FX 4800 by PNY are scalable GPU accelerated solutions that handle datasets and specialized needs of demanding industries. NVIDIA Quadro FX 5800 by PNY offers 4 GB graphics memory and up to 102 GB/sec memory bandwidth as well as 240 CUDA(TM) programmable parallel cores. Featuring 1.5 GB frame buffer with 76.8 GB/sec memory bandwidth, NVIDIA Quadro FX 4800 by PNY incorporates 192 processor cores.

3M Co., Electronic Products Div.    Austin, TX 78726
Jan 07, 2009 Suited for space-constrained applications, MDR Camera Link Full Configuration Cable allows direct cable drops by virtually eliminating cable bend radius requirements of traditional straight exit products. Cable meets EU RoHS requirements and is labeled in accordance with China RoHS marking standard SJ/T 11364-2006.

Atmel Corporation    San Jose, CA 95131
Jan 07, 2009 Based on AVR 8-/16-bit RISC core allowing single cycle instruction execution, Model AT90SCR100 embeds 4 KB EEPROM for data, 4 KB SRAM, and 64 KB programmable FLASH. Unit includes variety of interfaces such as ISO7816, USB full speed 2.0 device and host, USART and TWI, as well as SPI serial interface plus dedicated high speed SPI interface up to 20 Mbps at 20 MHz. With integrated hardware AES 128/256-bit engine, MCU offers cryptographic capability.

Atmel Corp.    San Jose, CA 95131
Jan 07, 2009 Available in DFN8 and QFN44 packages, AT90M25672RU uses GSM/UMTS networks to provide wireless connectivity to range of equipment that communicate without human intervention. It is based on 8-/16-bit RISC core, allowing single cycle instruction execution, and embeds 72 KB EEPROM data memory, 6 KB RAM, and 256 KB ROM program memory. Commonality with secureAVR® family facilitates migration in terms of code binary compatibility, development tools, and reference designs.

Atmel Corp.    San Jose, CA 95131
Jan 07, 2009 With AT91SAM9260 processor running ARM926EJ-S(TM) core at 200 MHz, AT91SAM9G20 Computer-On-Module (COM) reference platform is suited for use in Indesign-designed products. Applications include electronic products with no user interface requiring significant processing capability and supporting variety of interface peripherals, such as Ethernet, USB, I2S audio, and USARTs. Within mini-PCI physical form factor, COM contains 3.3 and 1.8 V power supplies for processor and memories.

Renesas Technology America, Inc.    San Jose, CA 95134-1368
Jan 07, 2009 Built around SH-4A CPU core, 32-bit Models SH74504 and SH74513 offer 2 MB and 1.5 MB embedded flash memory, respectively, as well as 512 KB on-ship SRAM, providing support for driver-assist systems in automotive applications. Units operate at 240 MHz, allowing them to achieve processing performance of 432 MIPS. Fabricated using 90 nm process technology, MCUs come in 17 x 17 mm BGA package with 0.8 mm pitch and operate over temperature range of -40 to +125°C.

Renesas Technology America, Inc.    San Jose, CA 95134-1368
Jan 07, 2009 Based on 16-bit R8C CPU core and operating from 1.8-5 V, R8C/Lx Series includes controller that supports up to 416 pixels of segment- or dot matrix-type LCDs. Data transfer controller manages data transfers from memory to memory or memory to peripherals without CPU intervention, while data flash memory with background operation function allows CPU to execute instructions while data is being written or erased from data flash. On-chip oscillator provides clock signals at 40, 36.864, or 32 MHz.

Renesas Technology America, Inc.    San Jose, CA 95134-1368
Jan 07, 2009 With their on-chip memory - up to 2 MB flash, 512 KB SRAM, 64 KB cache - and peripheral sets, SH74504 and SH74513 accelerate sensor data processing for implementing preventative safety features in driver-assist systems. Both MCUs use SuperH® SH-4A CPU and have 5-channel CAN function that accommodates multitude of sensor and actuator ECUs. Additionally, SH74504 includes higher-bandwidth, 2-channel FlexRay function. At 240 MHz, performance levels reach 432 MIPS and 1.68 GFLOPS.

Renesas Technology America, Inc.    San Jose, CA 95134-1368
Jan 07, 2009 Tailored for car information terminals, SH-NaviJ series model SH77721 SuperH® processor uses 32-bit superscalar SH-4A CPU core rated to 333 MHz, 599 MIPS, and 2.3 GFLOPS. Processing may be performed using only one DDR2 SDRAM chip (DDR333 type), and 32-bit extension bus is provided for connections to external Flash or SRAM. In addition to 2D/3D graphics processor, components include GPS baseband processing module, FM multiplex decoder, and multiple interfaces.

Lanner Electronics Inc.    Sijhih City Taipei 221  Taiwan
Jan 07, 2009 Built entirely with RoHS-compliant materials and production processes, FW-7520 and FW-7560 suit low-end to midrange application markets. Model FW-7560 comes with one storage bay for either 2.5 or 3.5 in. hard drive, along with 2 Serial ATA interfaces for additional storage and one DDR2 SODIMM slot for up to 2 GB of memory. Measuring only 36 mm in height, fanless desktop system, FW-7520 includes 5 network ports, single pair with bypass support, and 2 USB ports for administration.

Cherry Electrical Products    Pleasant Prairie, WI 53158
Jan 07, 2009 Suited for harsh environments and for unsupervised applications subject to vandalism or abuse, J86-4400 features laser-marked non-removable keycaps and lip-sealed trackball made of heavy-duty phenolic material, designed specifically to resist attempted abuse by vandals. Keyswitches have over-travel protection, which means forceful impact will not damage electro-mechanical contacts. Rated IP65/NEMA4, it has been tested for ESD immunity to 10,000 V.

CTC Parker Automation    Milford, OH 45150 9792
Jan 06, 2009 Designed to fit existing cutouts of 15 in. HMI products, PA15T PowerStation comes pre-installed with Interact Level 1 HMI software runtime and is 100% software-compatible with PS family applications. Passively cooled unit incorporates AMD LX700 CPU as well as 128 MB DRAM, 512 MB CompactFlash® card, 2 serial ports (one RS-232 and one RS232/422/485-configurable), and one 100 BaseT Ethernet port. With no rotating media storage devices or fans, platform suits harsh environments.
