Alfa Laval Inc.    Richmond, VA 23231
Jan 29, 2003 Automated AlfaVap(TM) concentrates process liquids that contain dissolved and finely dispersed proteins of animal or fish origin. Utilizing forced circulation, unit can be supplied as single-stage, 2-stage, or 3-stage evaporator depending on heating medium, throughput, or concentration requirements of end product. Capacities are offered from 2,000-35,000 lb/hr. Acceptable process fluids include stick water from fishmeal, glue water from meat by-products, and gelatin products.

Wastewater Eavporators, LLC,    E. Walpole, MA 02032
Dec 11, 2002 Model G30 features well-insulated, heavy gauge, 316L stainless steel tank, encased in 304 stainless outer skin. Heat exchanger has twin vertical plates and internal flue gas passages. Large surface area provides maximum heat transfer. Vertical plates are 95% visible for inspection and cleaning.

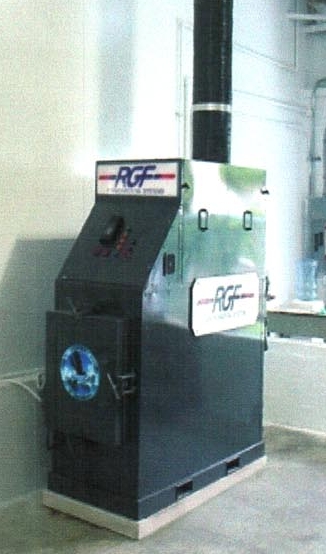

RGF Environmental Systems    West Palm Beach, FL 33404
Jul 24, 2002 Thermo Ox Series 3 Dry Chamber Flash Wastewater Evaporator eliminates need to haul wastewater and problems of corrosion and slurry removal. It leaves dry ash in coated ceramic chamber, utilizes any BTU of wastewater for fuel savings, and can use used oil as fuel. Fully automatic unit is suitable for machinery coolants, PCB waste, textiles, heavy equipment, and machinery coolants.

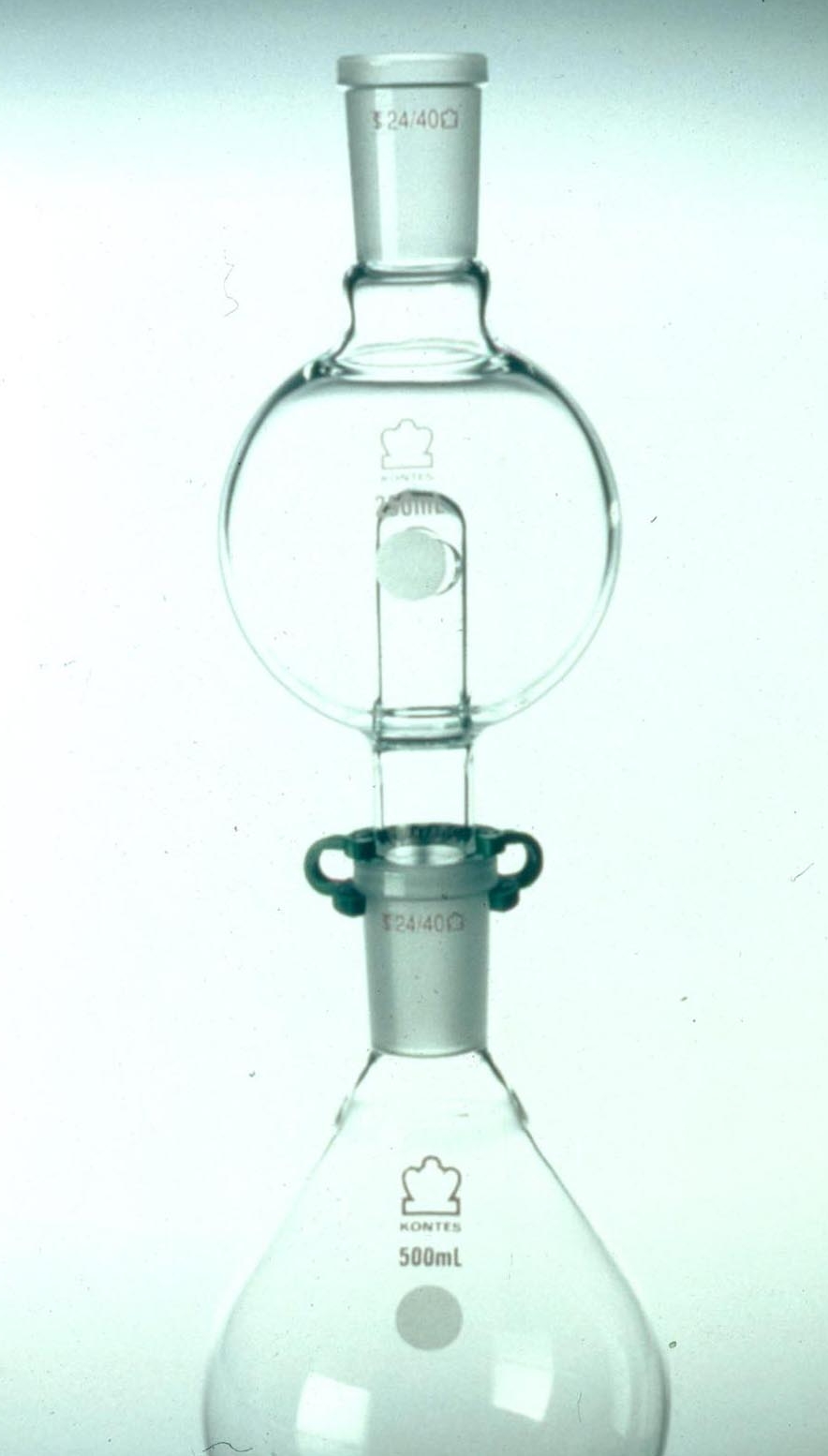

Kimble-Kontes    Vineland, NJ 08362-1502
Jul 19, 2002 Trap series features square bead at top outer joint to provide clamping contact with flat top surface and create seal with rotary evaporator apparatus. Design is incorporated on rotary trap models with and without drain holes as well as top sealed vapor tube model used for excessively foaming organic mixtures. Capacities from 100 to 500 mL in 14/20 and 24/40 joint sizes are available.

Severn Trent Services    Fort Washington, PA 19034-2707
Jun 20, 2002 SWE-II, SENTRY SYSTEM reduces complex water-based waste chemistries. Integrated PLC controls the process, maximizing volume reduction up to 99%. System has redundant safety sensors, 3 stage mist elimination, level control, and options for auto drain, auto decant, and remote modem monitoring.

LCI Corp.    Charlotte, NC 28297 8804
Apr 26, 2002 LabVap(TM) enables users to evaluate thin-film evaporation during early product development. It can be used with heating temperatures up to 650 deg F and for countercurrent or co-current operation. LabVap nozzle designs allow connections to laboratory glassware. System can be disassembled and re-assembled for ease in cleaning. Horizontal design incorporates stainless steel body and rotor, double mechanical seal, and fixed clearance rotor.

Hydro-Blast Inc.    Clackamas, OR 97015
Apr 15, 2002 HYDRO-VAP(TM) 1000E runs at 3 to 4 gph to provide 95% reduction in wastewater. Evaporator heats wastewater to boiling and turns it into vapor. Harmless water vapor is vented through blower-assisted stack and exhausted to outside atmosphere.

Lakeview Engineered Products, Inc.    Fort Wayne, IN 46802
Apr 09, 2002 E-100 Hot Shot electric powered, wastewater evaporator processes 7 gallons per hour. Constructed of stainless steel, it includes side mounted heating elements, counterweighted air cooled lid, and self-cleaning backward inclined radial blade impeller. Belt driven blower, NEMA 4 industrial duty control panel, redundant level controls, and safety devices are also included. Unit is factory adjusted, tested, and ready for operation with line connection.

RGF Environmental Systems    West Palm Beach, FL 33404
Feb 13, 2002 TO-30 Thermo Oxidizer safely eliminates 30 gph or 700 gal per day of plant's liquid waste. It is equipped with PLC and flame modulator, which provide automatic operation. Dry chamber flash evaporator eliminates corrosion problems. TO-30 can replace wash water recycling system, liquid waste storage and hauling, waste oil disposal, floor scrubber wastewater treatment system, and process water oils or solvents.
