Lighted Pushbutton Switch features split-image design.
February 22, 2013 -
Suited for high-density instrumentation panels and display areas with limited space, Series SW44863 Split-Image Switch Series features SMT LEDs on built-in PCB for backlighting 0.51 x 0.42 in. pushbutton. Features include hidden legend lenses with multiple color options for backlighting; multi-image and horizontal or split legend faces conserve panel space. Switches feature SPST circuitry, one NO circuit, momentary snap feel, and legends that can be customized to panel requirements.
Original Press release
Electro-Mech Components, Inc.
1826 Floradale Ave.
South El Monte, CA, 91733 3689
USA
Electro-Mech's New Compact Split-Image Lighted Pushbutton Switch
SOUTH EL MONTE, Calif. -- Electro-Mech Components, Inc. has introduced the Series SW44863 Split-Image Switch Series offering an ideal solution for highdensity instrumentation panels and display areas in a compact footprint.

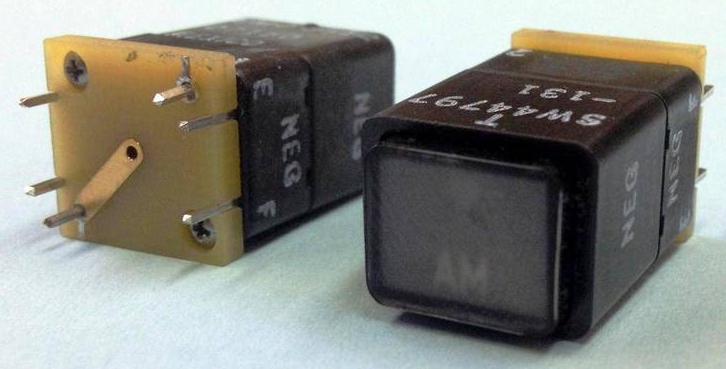

Designed in a low-profile, unitized housing, these compact switches feature SMT LED’s on a built in PCB for backlighting the 0.51 x 0.42 size pushbutton. Pushbutton lenses feature hidden legend lenses with multiple color options for backlighting. The multi-image and horizontal or split legend faces save valuable panel space to maximize small area limitations.
The SW44863 unit is SPST circuitry, one normally open circuit, momentary snap feel, and legends can be customized to panel requirements. The new switches can be provided with two or four LED’s for split light segments. Units can be supplied individually and easily installed directly to the PCB. An optional clear or translucent (smoke) grey lens cover is available for protection or to achieve hidden legends.
Switch ratings are 0.1 Amps resistive, 0.05 Amp inductive at 30VDC or 125VAC. Other features of the SW44863 include an operating pressure of 32 oz. (± 5 oz.), switch travel of 0.030", weight of less than one ounce, and a rated life of 100,000 minimum actuations. Interconnect with PC pins to mount directly to the PCB.
Unit pricing starts at $39.90 each at 1,000 pieces, depending upon LED’s and add-on options, with delivery of 7-8 weeks ARO. Complete specifications are available upon request. Custom configurations are also available.
