Compact 240 W Power Supply has 150% peak load output.
May 30, 2012 -
Comprising 240 W switch-mode power supplies, SPD240C Series has installed width of 64 mm, universal 88-264 Vac input, and 150% peak load capability (3 sec). Products provide power ready relay output as well as short circuit protection, and active power factor correction improves power factor to 0.97 @ 230 Vac. With parallel connection, series offers efficiency rating to 83%, and is UL and cUL listed as well as TUV and CE approved.
Original Press release
Carlo GAVAZZI Automation Components
750 Hastings Lane
Buffalo Grove, IL, 60089
USA

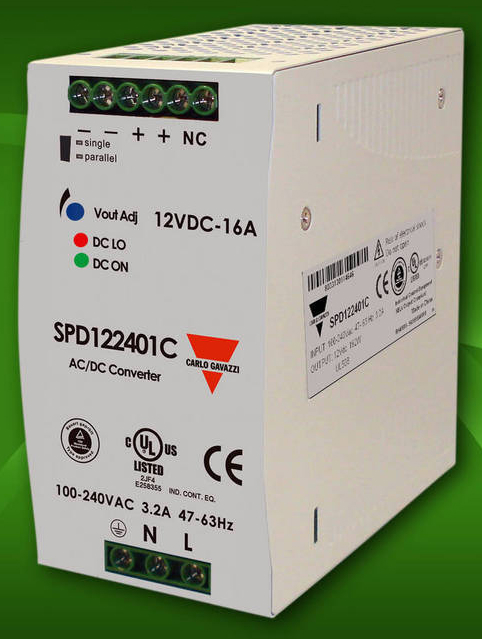

Compact 240 Watt Power Supply with 150% Peak Load Output
Buffalo Grove, IL - Carlo Gavazzi is proud to announce the launch of a new and powerful switch-mode power supply in a compact housing. The SPD240C Series features a 150% peak load capability for a full 3 seconds and, at an installed width of only 64mm, this new series saves approximately 25% DIN-rail width compared with our standard 240 watt power supply. This enhanced 240 watt series also includes Active Power Factor Correction which improves the power factor to 0.97 @ 230VAC resulting in increasing the output power capability. Therefore, the SPD240C Series offers more power, using less panel space, thus making it an ideal choice for DC loads.
Additional standard features included with the SPD240C Series compact power supplies are parallel function, universal AC input, enhanced CE certifications, a power "ready" relay output and short circuit protection. Technical features include:
150% peak load capability
Universal AC input 88-264VAC
Active power factor correction
Parallel connection
Compact dimensions
Power ready relay output
LED for DC power "low"
High efficiency to 83%
The compact SPD240C Series power supplies are UL and cUL listed, and TUV and CE approved, your assurance of high quality and safety. They are available from Carlo Gavazzi's network of sales offices, distributors or www.GavazziOnline.com.
