Automation System produces cable assemblies.
March 18, 2009 -
Built from modular components, TransferModule 6000 includes cable transport system, transfer shuttles, transfer chain, cable loading/unloading stations, control system, and PC-based user interface. Stations can perform stripping, tinning, sealing, shield flaring, and micro-flame soldering, as well as ultrasonic and resistance welding, connector housing insertion, and electrical testing. Typical applications include coaxial, flat, and round multi-conductor and zipcord cable assemblies.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
Schleuniger, Inc.
87 Colin Dr.
Manchester, NH, 03103
USA

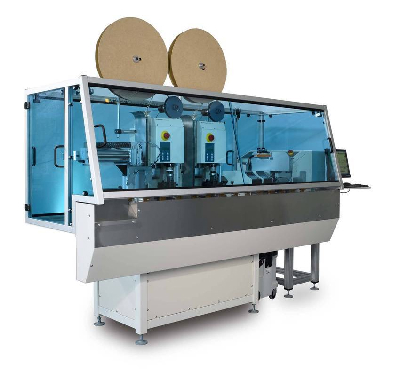

TransferModule 6000 - Cable Assembly Automation
Schleuniger is pleased to announce the introduction of the TransferModule 6000 cable assembly automation system. This system can produce cable assemblies for typical applications including coaxial, flat and round multi-conductor, and zipcord cable assemblies for many different served markets.
The base module is built from modular components and it includes the cable transport system, transfer shuttles, transfer chain, cable loading / unloading stations, control system, and a PC-based user interface. The overall system length is determined by the quantity and size of the stations required to process the completed assembly.
These stations can perform the following processes on each cable end: stripping, tinning, sealing, shield flaring, micro-flame soldering, ultrasonic and resistance welding, connector housing insertion, and electrical testing to name a few. Additional pre- and post-processing accessories such as prefeeders, inkjet markers, coilers, and stackers can be fully integrated into the TransferModule 6000 system.
The TransferModule 6000 uses a parallel processing concept, whereby all cable end processes occur simultaneously. This maximizes the production rate compared to serial processing methods. System operation is via a PC with a high level user interface. This allows quick changeovers and unlimited program storage.
More information can be found at www.schleuniger-na.com. Should you have any questions, please e-mail sales@schleuniger.com or call (603) 668-8117.
Schleuniger is one of the globally leading companies for wire processing solutions and is specialized in high-precision stripping & crimping technology. Manufactured in Switzerland and Germany, Schleuniger machines and equipment are used in various industries and markets all over the world. The Schleuniger Group has own sales & service companies in Germany, USA, Canada, Mexico, Slovakia, Japan and China and a world-wide sales & service network with long-term partners in more than 40 countries. The Schleuniger Group represents the division "Wire Processing" of the METALL ZUG GROUP. The holding company METALL ZUG AG is listed at the Swiss stock exchange (SIX Local Caps, Zurich, Switzerland).
|
|
|
|
|
|
|
|
