X-Y Positioning Stage suits demanding applications.

Press Release Summary:




Available in 3 sizes with travels of 110 x 110, 210 x 210, or 320 x 320 mm, KT-EDLM series delivers 3 micron positioning accuracy per 100 mm travel with repeatability of ±0.5 microns. Straightness and flatness are 2 microns per 100 mm travel, and X/Y axes are driven by synchronous, ironless, electrodynamic linear motors with max acceleration of 7-10 m/sec² and velocity of 400-600 mm/sec. Options include electromagnetic brake and integrated controller.



Original Press Release:

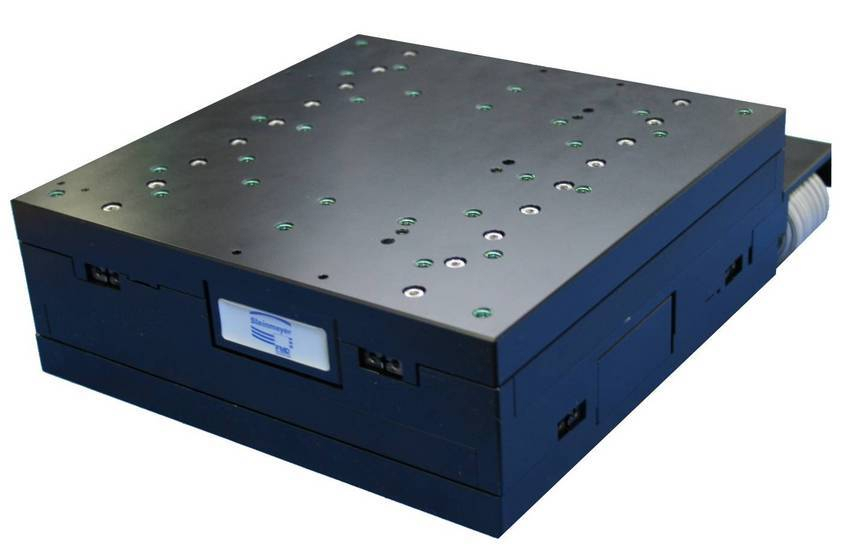

New Compact Series KT X-Y Stage



BURLINGTON, MA--Steinmeyer, Inc. announced a new precision, high performance X-Y stage. The compact KT-EDLM series consists of a 3-piece XY stage driven by synchronous ironless linear motors. Due to its high precision and outstanding dynamic performance this new stage is ideal for demanding positioning applications including:

- high speed inspection systems
- robotics assemblies
- dispensing systems
- gene chip production equipment.

The KT-EDLM stage is available in three sizes with travels of 110 x 110, 210 x 210 or 320 x 320 mm. Positioning accuracy is 3 microns per 100 mm travel with repeatability of +/- 0.5 microns. Straightness and flatness is 2 microns per 100 mm travel. The X and Y axes are driven by ironless electrodynamic linear motors with maximum acceleration of 7 m/s² to 10 m/s² and velocity of 400 mm/s to 600 mm/s. Options include an electromagnetic brake and an integrated controller (inside the stage). A separate motion controller is also available based on customer specifications.

The Steinmeyer group is comprised of two manufacturing divisions located in Germany. August Steinmeyer GmbH & Co. KG (located in Albstadt) has been setting standards for high precision ball screws for over 45 years and prides itself on high quality, innovative designs to meet demanding customer requirements. Our Feinmess Dresden (FMD) division has been producing an extensive line of high precision positioning systems for well over 130 years.

For further information on this new product or others in our extensive product portfolio call 1-781-273-6220 or visit the Steinmeyer group at the following web site: www.steinmeyer.com
