Thermistor Series withstands temperatures up to 482°F.
Press Release Summary:
Manufactured in DO35 package for PCB mounting, Diode Type (DT) Thermistor Series has glass sealed body with 0.20 in. tin-plated leads. Thermal sensor, suited for household appliance applications, works in temperatures down to -58°F and offers tolerance ranges of ±1%, ±3%, and ±5%. Dissipation value is 2.4 mW/C in still air with typ thermal time constant of 15 sec. Resistance values of 25°C are available from 1K-47K ohms. Max power rating is 250 mW @ 25°C.
Original Press Release:

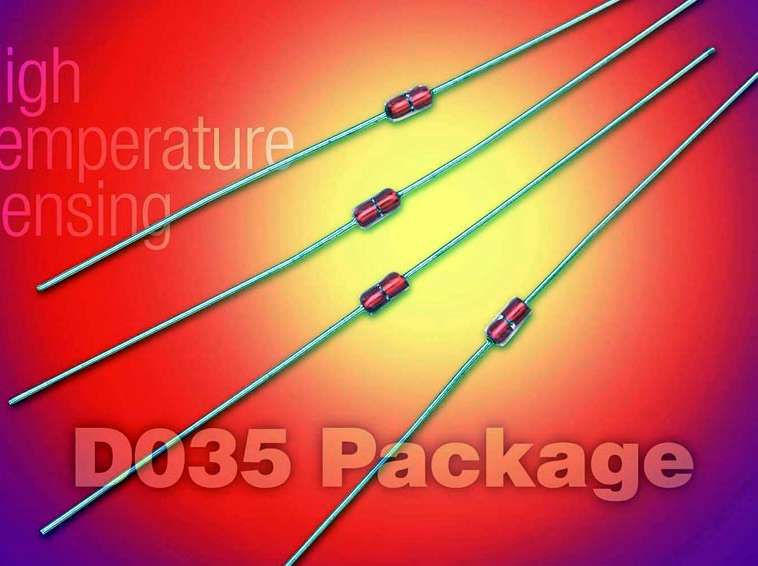

Selco's New Diode Type Thermistor Series Offers High Temperature Capabilities in Convenient DO35 Package
ANAHEIM, Calif. - Dec. 21, 2004 - Selco Products Company has introduced a new Diode Type (DT) Thermistor Series, a highly reliable thermal sensor suitable for use in a variety of high temperature and household appliance applications.
These new DT thermistors offer a wide operating temperature range of -58°F to 482°F (-50°C to 250°C) and feature a glass sealed body for high reliability and stability. Designed in a DO35 industry-standard package for convenient PCB mounting, other outstanding features include robust design and excellent thermal cycle endurance.
Performance characteristics include standard tolerance ranges of ±1%, ±3%, and ±5%, and a dissipation value of 2.4 mW/C in still air with a typical thermal time constant of 15 seconds. Resistance values of 25°C are available from 1K ohms to 47K ohms. Maximum power rating is 250 mW (at 25°C). The DT Series is manufactured with 0.20" tin-plated leads.
The new Diode Type Thermistors are priced from $0.13 each in production quantities with ±5% tolerance (prices vary by tolerance and quantity). Detailed product specifications can be found at http://selcoproducts.com/PDF/ntc_pdf/ntc_DT_series.pdf
For further information on the entire line of Selco thermostats, thermistors, electronic controls, knobs, and digital panel meters, contact Selco/ECC, 605 South East Street, Anaheim, Calif., 92805-4842; Toll-Free: (800) 229-2332; E-mail: sales@selcoproducts.com; Web site: www.selcoproducts.com.
