Single Chip Power Switches meet IEA's 1-Watt Initiative.
Share:
Press Release Summary:
Fairchild Power Switch (FPS) models FSD200, FSD210, and FSDM311 feature burst mode operation for stand-by mode that consumes 0.1 W @ 265 Vac. Off-line switches combine avalanche-rated SenseFET for current sensing with voltage mode PWM IC and are equipped with built-in start-up switch. Units are self-biased and protected, linear control current-to-duty cycle converters with open drain output. They operate from 6.7-21 V at 134 KHz with frequency modulation for low EMI.
Original Press Release:
Fairchild Semiconductor's "Green" Single-Chip BDCMOS Power Switches
Boast High Efficiency While Lowering Standby Power Consumption and Switch Mode Power Supply Component Count
o Meets the "1 Watt Initiative" Standard
San Jose, Calif.-October 10, 2003- Fairchild Semiconductor (NYSE: FCS) introduces three new Fairchild Power Switch (FPS) products featuring burst mode operation for stand-by mode (under 0.1W @ 265Vac) that meets the International Energy Agency's (IEA) "1-Watt Initiative" aimed at reducing stand-by power losses to below 1 Watt. The FSD200, FSD210, and FSDM311 significantly reduce bill of material costs while achieving high-efficiency and obtaining regulatory compliance. The unique integration of each of these FPS products minimizes external components, simplifies designs, and lowers costs in target applications, such as battery chargers and adapters, mobile phones, PDAs, MP3s, C-TVs, monitors and PC auxiliary power. These highly integrated off-line power switches combine a fully avalanche-rated SenseFET (LDMOS) for current sensing (650V or 700V minimum breakdown ratings) with a voltage mode PWM IC, and they are equipped with a built-in start-up switch, eliminating the need for an external start-up resistor. The FSD200 also eliminates the transformer auxiliary winding.
"With their 1-Watt stand-by power, Fairchild's new FPS devices are efficient and environmentally friendly," said Fairchild's product marketing manager for the Fairchild Power Switch. SangTae Im. "In addition, these integrated products provide performance superior to MOSFET/controller or RCC switching converter solutions, while offering the benefits of reduced board space and improved reliability through various protection circuits."
The Fairchild Power Switch products are self-biased and protected, linear control current-to-duty cycle converters with open drain output. They operate from 6.7V to 21V at a frequency of 134kHz with frequency modulation for low EMI. Additional features include internal soft start to reduce the overshoot current at plug in, overload protection, over current protection and internal thermal shutdown protection.

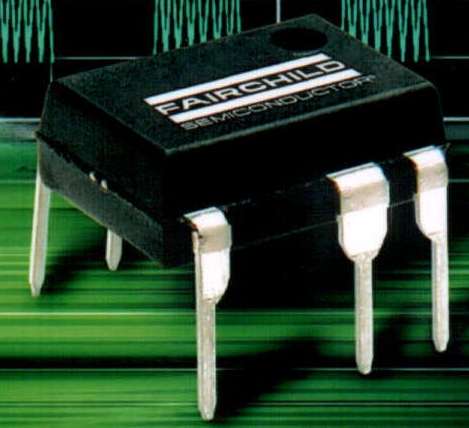

Both the FSD200 and FSD210 are available in 7-DIP packages while the FDSM311 is available in an 8-DIP package. Beginning 2004, these products will be available in lead-free packaging that meets or exceeds the requirements of the joint IPC/JEDEC standard J-STD-020B and is compliant with the European Union requirements, which will take effect in 2005.
Price:
FSD200 US$ 0.31 (1,000 pcs)
FSD210 US$ 0.34 (1,000 pcs)
FSDM311 US$ 0.43 (1,000 pcs)
Availability: Now
Delivery: 5 weeks ARO
For more information about these products, please go to www.fairchildsemi.com/pf/FS/FSD200.html, www.fairchildsemi.com/pf/FS/FSD210.html, or www.fairchildsemi.com/pf/FS/FSDM311.html. For information on other Fairchild products, design tools, and sales contacts, please visit www.fairchildsemi.com.
Datasheets of these products in PDF format are available at:
http://fairchildsemi.com/ds/FS/FSD200.pdf
http://fairchildsemi.com/ds/FS/FSD2l0.pdf
http://fairchildsemi.com/ds/FS/FSDM311.pdf
