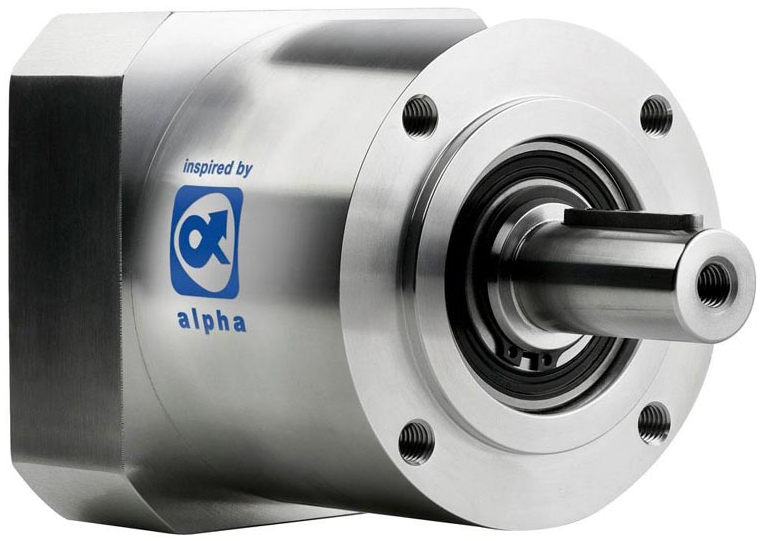

Servo Planetary Gearhead suits precision applications.

Press Release Summary:

Suited as component of servo and stepper motor applications, alphira® low-backlash planetary gearhead is offered in 4 sizes and 5 reduction ratios. Maintenance-free product is housed in unvarnished aluminum case and exhibits greater than 95% efficiency. Designed for cyclic and continuous operation, gearhead has 20,000 hr service life and is built with lifelong lubrication and sealing.

Original Press Release:

Alphira - A New Addition to the Alpha Family

The inline basic precision alphira® product proves to be another valuable addition to an already innovative range of servo planetary gearheads

Fast, flexible, efficient - three attractive attributes to win customers. alpha has broken new ground with the latest in an impressive line of precision planetary gearheads. alphira® is the name of the youngest offspring in the popular alpha product family. Packaged in a lightweight aluminum case, alphira® is precise, power-dense and maintenance-free. With unique mounting dimensions, this basic precision is well poised to tackle your low-precision applications.

Ideal as a component of servo and stepper motor applications, alphira® is optimally equipped for the job. In terms of reliability, efficiency and precision, alphira® is every bit as impressive as its older siblings in the rest of the alpha family.

Technical characteristics in brief:
- Low-backlash planetary gearhead
- 4 sizes (40, 60, 80, 115)
- 5 reduction ratios (1-stage 5, 10 / 2-stage 25, 50, 100)
- Aluminum case, unvarnished
- Lightweight (approx. 2.5 3 kg)
- High efficiency > 95%
- Low noise level
- Designed for cyclic and continuous operation
- Very simple motor mounting
- Service life: 20,000 h
- Lifelong lubrication and sealing

The innovators in servo gear technology, alpha continues to provide solutions which are the most advance in the industry, making machines run faster, more efficient and more productive. alpha's product range includes several series of precision gear reducers, servo couplings and various rack and pinion systems to fit any application.

alpha is a member of the WITTENSTEIN group of companies, recognized globally as a leader in motion control components.

Company Contact:
alpha gear drives, Inc.
1249 Humbracht Circle
Bartlett, IL 60103
