Process Pressure Calibrator ranges from vacuum to 50 bar.

Press Release Summary:

Suited for pneumatic vacuum applications, P100 Gauge and Hand Held Pump offers pressure generation and calibration in one unit with ranges up to 580 psi. Unit provides ±0.20% or ±0.05% full scale accuracy and can display engineering units in bar, Mpa, Kpa, Psi, and mbar. Supplied with calibration certification, Model P100 includes fine adjustment vernier, positive and negative peak function, pressure release value, and easy grip handle with spring, scissor action.

Original Press Release:

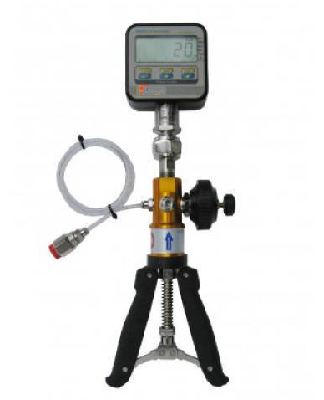

P100 Process Pressure Calibrator

Pneumatic Hand Pumps

Ideal for Pneumatic Vacuum

The P100 Gauge & Hand Held Pumps is an instrument that offers pressure calibration in an easy to use design with ranges up to 580 PSI (50 Bar). The P100 Gauge & Hand Held Pumps combine pressure generation into one unit that is able to display engineering units in bar, Mpa, Kpa, Psi, & mbar.

The P100 Includes:

- Accuracy: ±0.20% of Full Scale or ±0.05% of Full Scale

- Pneumatic Ranges: From Vacuum Up to 50 Bar

- Fine Adjustment Vernier

- Peak Function (Positive & Negative)

- Pressure Release Value

- Easy Grip Handle Spring, Scissor Action

- Selectable Engineering Units in: Bar, Mpa, Kpa, Psi, & mbar

- Calibration Certification Included

For additional information, please contact:

E Instruments International,

172 Middletown Blvd., Suite B201, Langhorne, PA 19047

Tel: 215-750-1212, Fax: 215-750-1399
