Pressure Gauge provides high accuracy.
Share:
Press Release Summary:
Model DPG-6700 digital pressure gauge/transmitter, with 316 SS, media-isolated pressure sensors to 10,000 psig, provides vacuum readings and positive-pressure measurement accuracy of 0.25% FS over temperature range of 32 to 131°F. Operating temperature range extends from -40 to +185°F. Unit is powered by either 24 Vdc loop power or AC/DC adapter. Its 4-20 mA signal output is scalable across entire span. Gauge includes 4-digit LCD, 25-segment bargraph, and ABS case.Original Press Release:

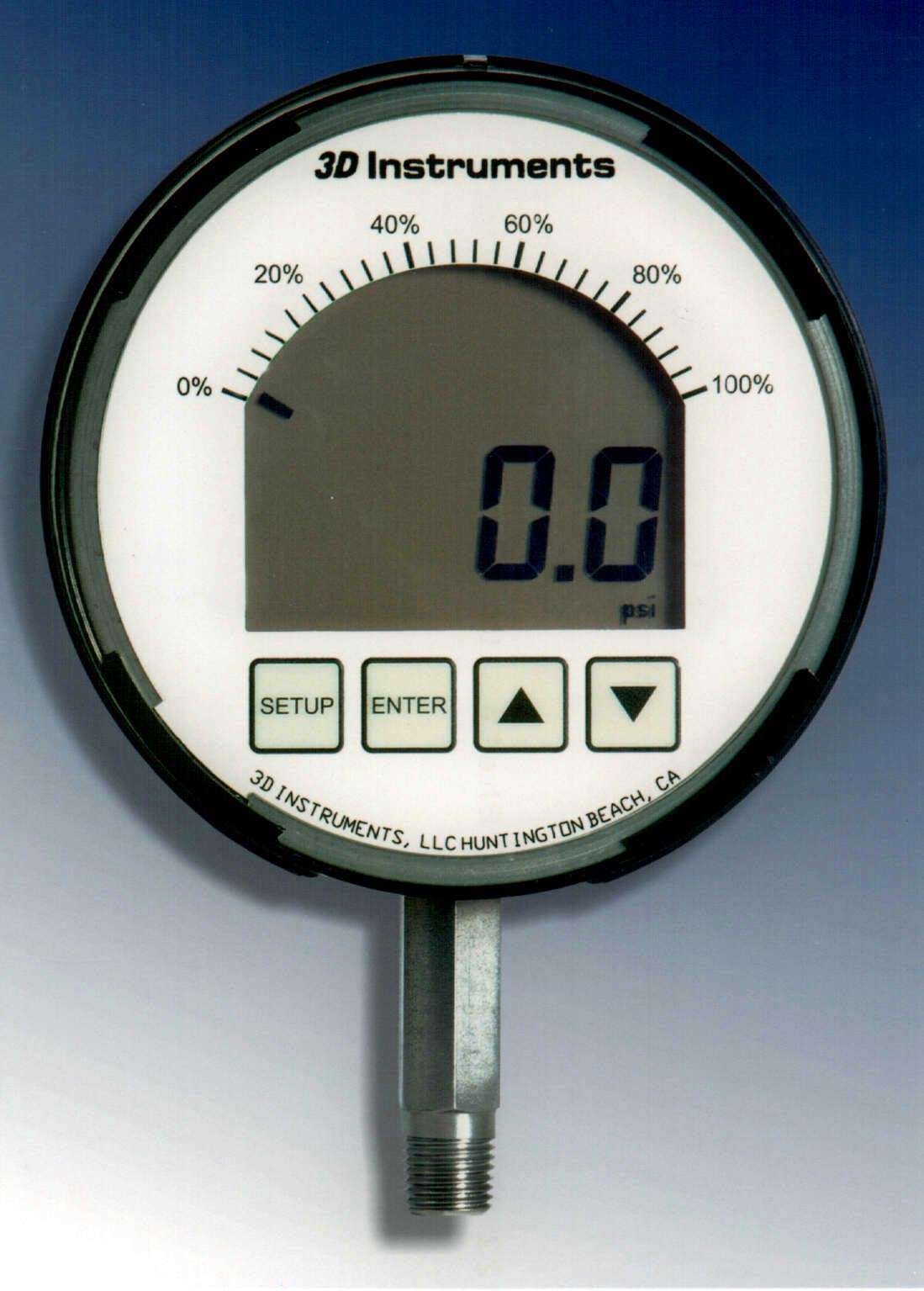

New Digital Pressure Gauge from 3D Instruments
3D Instruments LLC, an ISO 9000 certified company, is pleased to announce the market release of its newest pressure gauge, the DPG-6700 Digital Pressure Gauge. This pressure gauge/transmitter provides for the ultimate in accuracy and reliability in pressure measurement and calibration applications.
The DPG-6700 unites outstanding pressure transducer technology with sophisticated multi-temperature calibration routines to provide for the most stable measurements on the market today!! 316 SS media-isolated pressure sensors, to 10,000 psig, provide vacuum readings and positive pressure measurement accuracy of 0.25% full scale over a temp. range of 32-131 deg F. The operating temperature range extends from -40 to 185 deg F.
Powered by either 24 VDC loop power or an AC/DC adapter, the DPG-6700 contains a 3.6 volt lithium cell which can provide up to 4 years of back-up power. The unit features a 4-20 mA signal output, which is scaleable across the entire span. It is designed to be intrinsically safe for use in Class 1, Division 2, Group C & D hazardous area locations.
A high resolution, 4-digit LCD with oversized 0.75" high characters and a 25 segment bargraph make for unsurpassed readability. The DPG-6700 features a robust ABS case with the ingenious "Dyna-Mount" connection/flange system that allows for field re-configuration of the process connection from bottom to back. Other product features include: dual electronic switches, Hi/Lo pressure query, TARE, multiple Engr. Units and adjustable LCD Damping. Chemical Seals and a 300 series SS case are optional.
The DPG-6700 Digital Pressure Gauge will be available on September 1, 2002
Get more information at: www.digitalpressuregauge.com
