Portable Raman Systems feature integrated fiber optic probe.
Press Release Summary:
Incorporating 6 models, RMP-300 Series Spectrometers are equipped with X-Y-Z stage, laser, spectrograph, and CCD detector. Integrated microprobe incorporates Rayleigh scattering rejection filter, CCD-TV camera for sample positioning/monitoring, and white light illumination. By utilizing probe head, remote and non-destructive measurements can be achieved. With CCD camera located in probe head, user can view targeted sample image and perform measurements of solid or powdered samples.
Original Press Release:

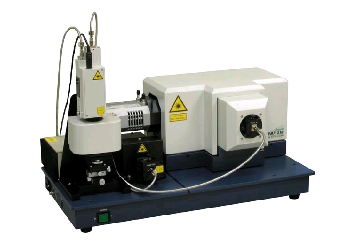

New Fiber Probe Portable Raman System, RMP-300
JASCO is proud to announce the release of the RMP-300 Series portable Raman spectrometer systems. The RMP-300 series instruments feature an integrated fiber optic probe with a small X-Y-Z stage, a compact laser, a high-throughput spectrograph and CCD detector. No special utilities such as coolants are required, allowing the system to be used almost anywhere. The flexibility of the optical fiber coupling enables remote measurements by locating the probe right at the sample. The fiber optic probe features an integrated CCD camera for sample positioning and capture of digital sample images.
The RMP-300 Series consists of six models, RMP-310, 315, 320, 325, 330, and 335, ranging from small, portable units suitable for in-situ measurements to research-grade systems that will meet even the most difficult application requirements.
The RMP-310/315 instruments are both basic models with a fixed wavelength range. The wavenumber range is 200 to 3200 cm-1 for the RMP-310 and 200 to 3500 cm-1 for the RMP-315, while the resolution is 3 cm-1 for the RMP-310 and 4 cm-1 for RMP-315. The RMP-310 features a green (532 nm) laser to provide analysis for the majority of Raman samples. Alternatively, the RMP-315 is configured with a 785 nm laser for deep red excitation of strongly fluorescing samples.
By contrast, the RMP-320/325 models have a wavelength scanning capability. Resolution is 3 cm-1 using the green laser (532 nm) for the RMP-320 and 4 cm-1 using the red laser (785 nm) for the RMP-325. The wavenumber scanning range is 100 to 8000 cm-1 for the RMP-320 and 100 to 3500 cm-1 for the RMP-325. A dual-grating monochromator is also available as an option.
The RMP-330/335 systems are research-grade models employing a high resolution monochromator with a 300 mm focal length. The resolution is 1 cm-1 with the green laser (532 nm) excitation for the RMP-330 and 1.5 cm-1 with the red laser (785 nm) excitation for the RMP-335. A dual-grating monochromator is available for these models as well.
The Raman microprobe incorporates a Rayleigh scattering rejection filter, a CCD-TV camera for sample positioning/monitoring and white light illumination. By utilizing the flexibility of the probe head, remote and non-destructive measurements can be achieved with the probe placed close to the sample. With a video CCD camera located in the probe head, the user can view the targeted sample image easily and can perform measurements of solid or powdered samples. The optical fiber length can be expanded up to 100 meters as an option. In addition, other optional Raman probes can be incorporated with any of the RMP-300 instrument systems.
The RMP-300 system operations are controlled by Spectra Manager II(TM), JASCO's powerful Windows® based cross-platform spectroscopy software package. The system is powerful enough for both laboratory work and on-site measurements in the fields of process control, QC, forensics, art conservation and mineralogy.
For more information, please visit our website at jascoinc.com/rmp, email sales@jascoinc.com for a free quote, or call toll-free 800-333-5272.
