PMC card states absolute position.
Press Release Summary:
Emerald EMC-2000 Multi-axis Motion Controller is available with Master Follower Resolver PMC card option. Optically isolated resolver provides absolute position information on power up for applications such as press controls, where absolute position of press crankshaft is needed to initialize tooling. It has selectable 12, 14, or 16 bit resolution. Resolver to digital conversion accuracy is +/- 8 min of arc.Original Press Release:

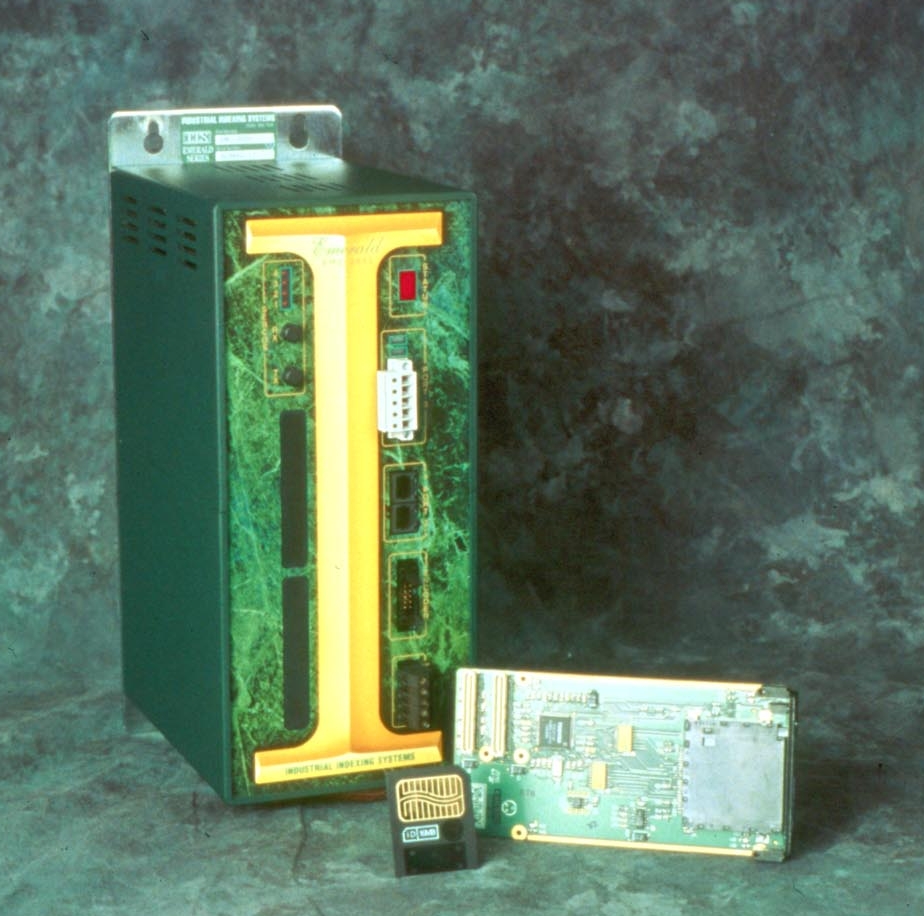

Industrial Indexing Systems Offers New EMERALD EMC-2000 Feature The Master Resolver PMC Card
VICTOR, NY - Industrial Indexing Systems, a world leader in servo motion control systems, today announced the new Master Follower Resolver PMC card option for the Emerald EMC-2000 Multi-axis Motion Controller. The master resolver option provides absolute position information on power up for applications such as press controls where the absolute position of the press crankshaft is needed to initialize tooling.
- 12/14/16 bit resolution; application program selectable
- Resolver to Digital Conversion Accuracy: +/- 8 minutes of arc
Position trap input
- 24 VDC @ 20 ma max
- Optically isolated
- Trap delay: less than 5 micro sec
- PMC card fits inside of Emerald Controller
Industrial Indexing Systems
626 Fishers Run
Victor, NY 14564-9795
Phone: (716)-924-9181
Fax: (716)-924-2169
email: info@IIS-Servo.com
www.IIS-Servo.com
