Pallet Furnace suits heat treating applications.

Press Release Summary:

No. 925 is a gas-heated, 2,000°F furnace with workspace dimensions of 30 x 48 x 36 in. and 700,000 Btu/hr modulating natural gas burners. It includes floor-mounted combustion air blower and 325 cfm intake pressurizing blower with motorized dampers on intake and exhaust. Insulated walls are 7 in. thick and comprised of 5 in. 2,300°F ceramic fiber and 2 in. 1,700°F ceramic fiber. Workload rests on removable pallet with 7 in. thick firebrick insulation.

Original Press Release:

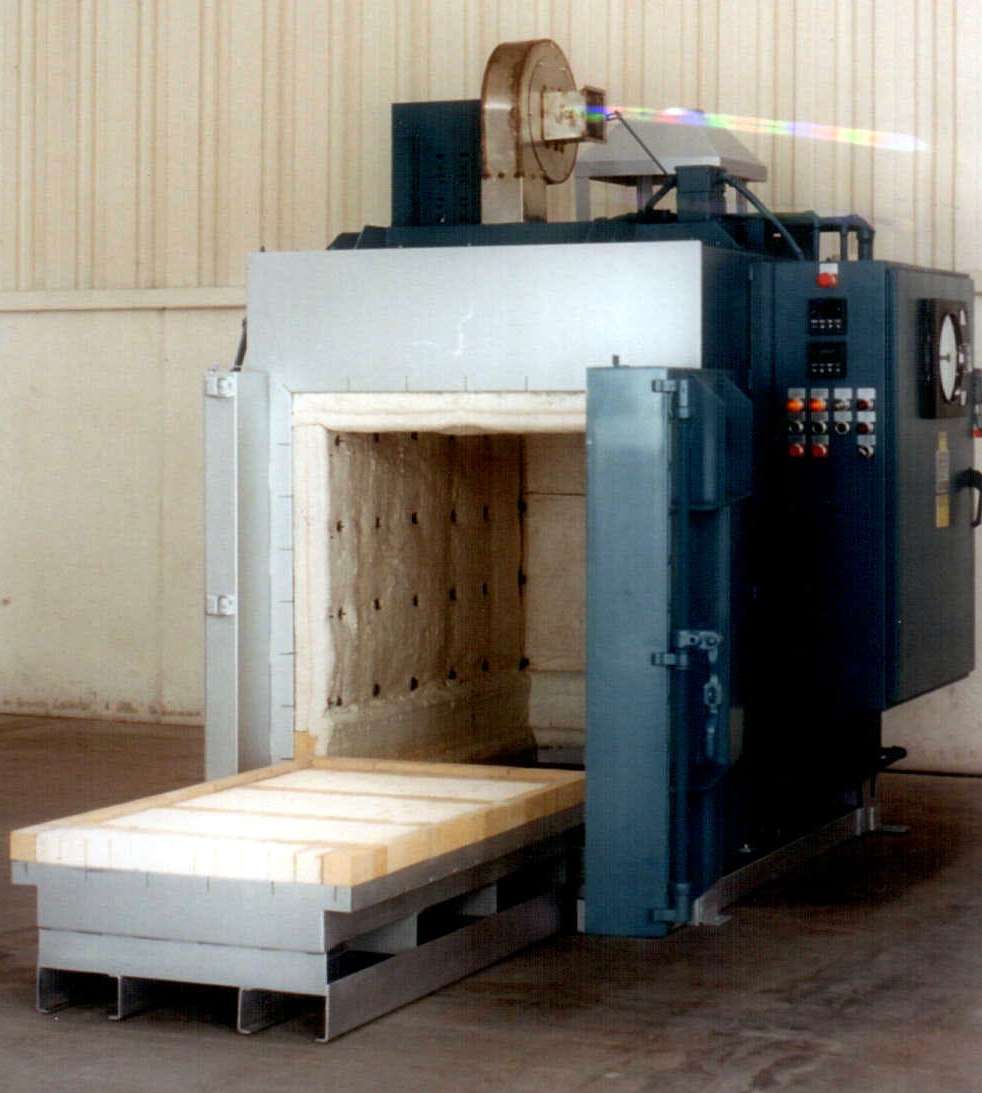

2000°F Gas-Fired Pallet Furnace

No. 925 is a gas-heated, 2000°F pallet furnace, currently used for heat treating. Workspace dimensions measure 30"W x 48"D x 36"H. 700,000 BTU/HR are installed in two modulating natural gas burners with a floor-mounted combustion air blower. This unit also includes a 325 CFM intake pressurizing blower, with motorized dampers on the intake and exhaust for accelerated cooling.

This Grieve pallet furnace is provided with 7" thick insulated walls, comprising 5" of 2300°F ceramic fiber and 2" of 1700°F ceramic fiber. The workload rests on a removable pallet with 7" thick insulation, comprising 4-1/2" thick 2300°F firebrick and 2-1/2" thick 2300°F firebrick.

Built to JIC/NEMA 12 electrical standards, No. 925 includes all safety equipment required by IRI, FM and NFPA Standard 86 for gas-heated equipment. In addition, a 10" diameter circular chart recorder, digital programming temperature controller and recirculating blower airflow safety switch.

For more information, please contact: THE GRIEVE CORPORATION. 500 Hart Road, Round Lake, Illinois 60073-2898 USA. Phone: (847) 546-8225. Fax: (847) 546-9210. Web: Email: Attention: Frank Calabrese.
