Optical Inspection System has motorized rotary stage.
Press Release Summary:
Optical Automatic Smart Inspection System (OASIS) simultaneously measures multiple dimensions on part to accuracy of ±0.0001 in. Working with profile view of part, measurements are taken at rate of 10 times per second. This non-contact machine vision inspection system instantly compares every measurement to dimensional tolerances and issues Pass, Warn, or Fail report. Motorized rotary stage enables parts to be rotated full 360° to get profile images and measurements from every aspect.
Original Press Release:
George Products Company Adds Rotational Capability to the Oasis Inspection System
A new rotary stage enhances the abilities of their Optical Automatic Smart Inspection System (OASIS).

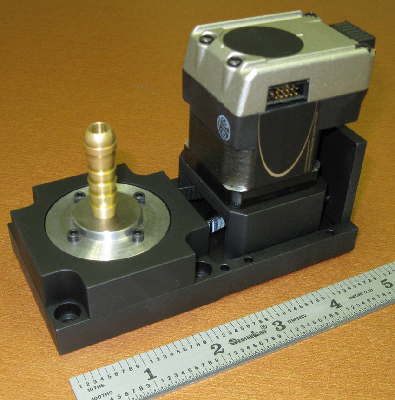

Middletown, DE : George Products Company, Inc., Middletown, DE (www.georgeproducts.com) has announced the addition of a motorized Rotary Stage to their Oasis (Optical Automatic Smart Inspection System).
The Oasis is a full-featured, non-contact machine vision inspection system that measures multiple dimensions on a part to an accuracy of +/- 0.0001", all at the same time. Working with a shadow (profile view) of the part, measurements are taken at a rate of 10-times per second. Just as fast as a user can place a part into the Oasis, every measurement on that part is instantly compared to dimensional tolerances and reports pass, warn, or fail.
With the addition of the new motorized Rotary Stage, parts can now be rotated a full 360-degrees to get profile images and measurements from every aspect of the part. Of course, all of these measurements are taken in real-time as the part rotates within the field of view.
The Oasis software has been enhanced to work with the new Rotary Stage in two modes of operation:
The first is continuous mode. As with all Oasis measurements, dimensions are displayed in real-time with a traffic-light color coded display panel to easily see the status of all dimensions; Green is pass, Yellow is outside the warning levels, and Red is fail - beyond the specified tolerance limits. The part will continuously rotate on the stage, at a user-defined rotational speed, allowing the operator to view the measurements and status display panel as the part turns.
Second is a fixed duration mode. Within the Oasis part program, the user defines how many rotations for the Rotary Stage to make and how many times to measure the part while rotating. Once the cycle is complete, the Oasis displays the actual measurements of Minimum, Average, Maximum, and Range for every dimension. A single click saves all of the data on the Oasis.
By adding the Rotary Stage to the Oasis, inspectors can insure that their parts are within specification limits all the way around without manually turning the part. In addition, rotating the part adds the ability to check additional features such as roundness and concentricity. With the included software update, all of this additional data is recorded with the built-in Oasis Inspection Report or can be automatically imported into any SPC program.
