MCU Evaluation Board leverages Cortex M3 microcontroller.

Press Release Summary:

Used to evaluate Cortex-M3-based LPC1800 MCUs' main features, LPC1850 board comes with 150 MHz LPC1850, 64 MB SDRAM, 32 MB parallel Flash, 512 kB SRAM, and serial EEPROM. It can be operated over USB, external power supply, or PoE. For debugging, board contains JTAG and 20-pin Cortex Debug Connector with ETM, and all communication channels - USB, Ethernet, OTG, UART, and CAN - are provided. DSP functionality makes conversion/output of audio signal over on-board audio amp possible.

Original Press Release:

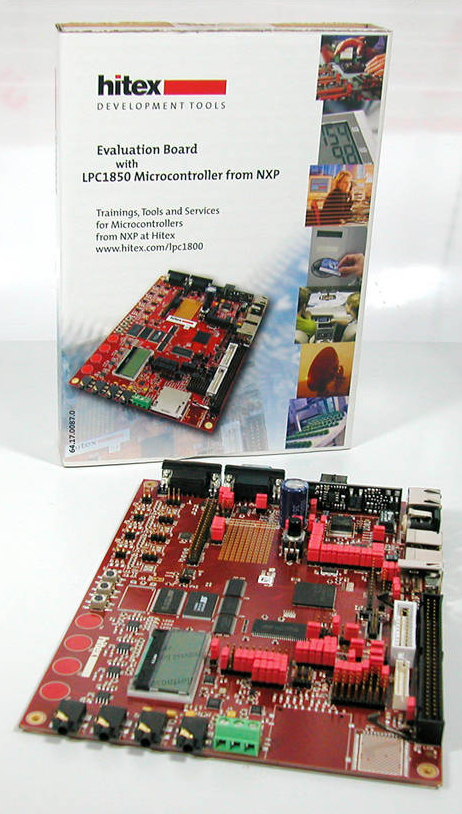

Evaluation Board for the New LPC1800 Family

For NXP's new Cortex-M3-based LPC1800 microcontrollers, Hitex now offers the Evaluation Board LPC1850 ensuring an easy evaluation of the LPC1800 family's main features.

The evaluation board is equipped with a LPC1850 operating at 150 MHz and offers some special features such as 64MB SDRAM, 32MB Parallel Flash, 512kB SRAM and serial EEPROM. It can be operated over USB as well as using an external power supply or power-over-Ethernet. For debugging the board contains a JTAG and also a 20-pin Cortex Debug Connector with ETM. All communication channels (USB, Ethernet, OTG, UART and CAN) are provided.

An iPod interface cable is available as an option. Application samples show how to control the iPod. With the DSP functionality, the conversion and output of the audio signal over the on-board Class-D audio amplifier is possible.

More info:

For more details, please contact:
Hitex Development Tools
Greschbachstr. 12
76229 Karlsruhe, Germany

Customer Inquiries
Roland Helbig
Phone: +49/721/9628-134
Fax: +49/721/9628-149

Hitex Development Tools
2070 Business Center Drive, Suite 280
Irvine, CA 92612

Customer Inquiries
Phone: (800)-45HITEX
Phone: +1/949/86 30 320
Fax: +1/949/86 30 331
