Lift Truck has 9,000 lb capacity.

Press Release Summary:



Model G9-43A telehandler has 43 ft lift height and 30 ft reach with choice of all-wheel, front wheel or crab steering. Long wheelbase and low center of gravity help to keep machine mobile while working on slopes as well as on dirt, gravel, sand or in sticky mud. Boom can be equipped with tilt carriages, swing carriages, slope piler carriage, 6-foot vertical mast, truss boom with winch, instant hook, buckets, and personnel work platform.



Original Press Release:

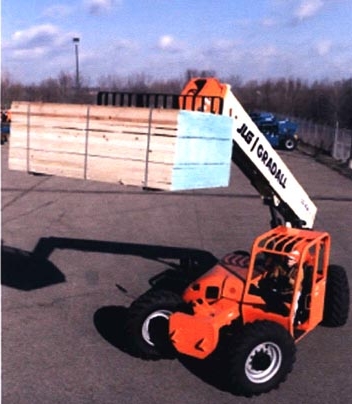

New JLG(R)/Gradall(R) Telehandler Has 9,000-Pound Capacity


McConnellsburg, PA April 11, 2002 - The new Model G9-43A telehandler by JLG Industries, Inc. and The Gradall Company offers a 9,000-pound capacity, a 43-foot maximum lift height and a 30-foot reach with the operator's choice of all-wheel, front wheel or crab steering.

The Model G9-43A has designed-in advantages thanks to an exclusive frame that's unlike any other in the industry. The machine's "backbone" frame is offset slightly to the operator cab side, bringing the mid-mounted engine closer to the center of the machine for excellent left-right weight distribution. Superior frame strength is another advantage of the new "backbone" design.

The even weight distribution advantage complements the Model G9-43A's long wheelbase and low center of gravity, helping to keep the machine both mobile and versatile while working on slopes as well as on dirt, gravel, sand or in sticky mud. The Deere 4045TF150 99-horsepower turbocharged engine is located in a new low, mid-mounted compartment, making routine service functions convenient at ground level.

The G Series operator cab is ideal for operators who appreciate 22 percent more room than they had in earlier models. Equipped with a high boom design, the operator also is provided with good visibility from the comfortable new seating module while the new wrap-around instrument panel is convenient for monitoring vital machine functions. To provide protection from falling objects or the unlikely event of a rollover, the Model G9-43A cab also has FOPS/ROPS certification.

The rugged three-section boom can be equipped with a variety of optional attachments including tilt carriages, swing carriages, slope piler carriage, 6-foot vertical mast, truss boom with winch, instant hook, buckets, personnel work platform and more. Attachment changes can be accomplished in just seconds with the newly designed QuickSwitch mechanism.


G9-43A Basic Specifications

Maximum Lift Height 43 feet (13.1 m)
Rated Capacity 9,000 pounds (4,082 kg)
Maximum Reach 30 feet (9.14 m)
@ 24" (610 mm) load center
Operating Weight 25,200 pounds (11,431 kg)
without carriage & forks
Turning Radius 147" (3.7 m)
Tires 13:00 x 24 - 12 PR, G2 type
Ground Clearance 16.5" (419 mm)
Engine Make & Model John Deere 4045TF150
No. of Cylinders 4
Displacement 276 cu. in. (4.5 L)
Max. Gross BHP 99 HP (74 kW)
Fuel Tank 38 gallons (141 L)


JLG Industries, Inc. is the world's leading producer of mobile aerial work platforms and a leading producer of telehandlers and telescopic hydraulic excavators marketed under the JLG(R) and Gradalle trademarks. Sales are made principally to rental companies and distributors that rent and sell the Company's products to a diverse customer base, which include users in the industrial, commercial, institutional and construction markets. JLG's manufacturing facilities are located in the United States and Belgium, with sales and service locations on six continents.

For additional information, contact:

Ms. Maye Houck

Marketing Communications Manager

JLG Industries, Inc.

13224 Fountainhead Plaza

Hagerstown, MD 21742

TEL: (240) 420-8721

FAX: (240) 420-8732

E-mail: mlhouck@jlg.com
