Inverter-Duty Gearmotors/Motors have variable-speed control.

Press Release Summary:

Pacesetter(TM) 230/460 Vac, 3-phase gearmotors and motors suit factories where various power supply options are present. In addition to range of torque, speed, and horsepower ratings, these CE- and RoHS-compliant products offer Quintsulation(TM) 5-stage insulation system that protects motor from potential spikes or corona damage caused by inverter. Frame motors 34R and 42R, available with dual-voltage windings and inverter-duty ratings, can be matched with type E, F, and 5N gearheads.

Original Press Release:

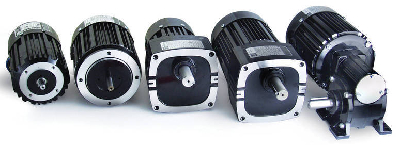

Bodine Electric Company Offers New 230/460 VAC Inverter Duty Gearmotors and Motors

CHICAGO, IL (April, 2009) - Bodine Electric Company added over twenty new 230/460 VAC, variable speed, three-phase gearmotors and motors to their Pacesetter(TM) product line. These new models are ideal for factories where various power supply options are present. They provide a wide range of torque, speed, and horsepower to fit a wide variety of applications such as conveyor systems, packaging machines, and factory automation. These highly efficient, variable speed AC motors can help to reduce power consumption and lower production costs.

The 34R and 42R frame motors are now available with dual voltage windings and inverter duty ratings. When operated with an AC speed control (inverter), these motors have a speed range from 120-3,650 rpm; maximum torque of up to 281 oz-in. (2 Nm) and are rated from 1/4 to 3/8 HP. They can be matched with Bodine's three most popular gearheads, the type E, F and 5N. The type E and F are both parallel shaft designs, with gear ratios from 5:1 to 300:1; their torque is rated from 25 to 341 lb-in. (up to 39 Nm), and power is rated up to 3/8 HP (280 W). The type 5N right-angle gearhead has gear ratios from 5:1 to 75:1. It provides a torque range between 54 and 116 lb-in. (up to 13 Nm) and up to 3/8 HP (280 W) power. Larger type 48R dual voltage motors and gearmotors are already available up to 3/4 HP (560 W).

All Bodine Pacesetter inverter duty AC motors and gearmotors feature Bodine's Quintsulation(TM) 5-stage insulation system, which meets NEMA MG 1-1993, Section IV, Part 31. This insulation protects the motor from potential spikes or corona damage caused by the inverter. Pacesetter gearmotors are UL or CSA recognized for construction, cURus or CSA/UR marked, and in compliance with the Low Voltage Directive "CE", and RoHS compliant.

According to Bodine's regional sales manager, Dan Orr, "Many manufacturing plants and industrial buildings use 460 VAC power. These new models will bring the performance of Bodine's lower voltage PACESETTER(TM) products to the factory floor, and they are more compatible with higher power 460 V inverters (adjustable speed drives)."

About Bodine Electric Company
Bodine Electric Company is a leading manufacturer of high-performance fractional horsepower gearmotors (less than 1HP / 746 Watts), motors and motor speed controls in North America. Bodine Electric offers over 1,000 standard products, and thousands of custom designed gearmotors, motors and motion controls (AC Fixed Speed, AC Variable Speed, Brushless DC, and Permanent Magnet DC). Bodine products are available via an extensive distributor network or sold directly to OEMs. Known for their reliability, long life and competitive prices, Bodine gearmotors are found in many demanding industrial and commercial applications, such as, medical devices, scientific and laboratory equipment, labeling equipment, printing presses, packaging equipment, and factory automation. Bodine is headquartered in Chicago, Illinois with manufacturing and assembly operations in Peosta, Iowa, U.S.A.

Marketing Contacts: Avis Weisman (773) 478-3515, ext. 409 - Marketing Coordinator; or Edmund Glueck, Manager - Marketing and Product Development, ext. 361.
