Inspection Doors help ensure safety in workplace.

Press Release Summary:

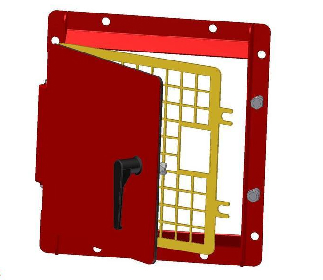

By looking through removable inspection screen guard on Chute Inspection and Access Doors, it is possible to check condition of equipment inside chute without access to moving parts and risk of injury. Surfaces slope away from door panel on interior side of screen to prevent material build-up from accumulating. Available in 12 x 12, 12 x 18, and 18 x 24 in. sizes, doors are constructed of steel with EPDM dust seal that withstands temperatures from -40 to 200°F.

Original Press Release:

Safely Inspect Your Conveyor Equipment While It Is Running with ASGCO Chute Inspection Doors

ASGCO has long recognized the importance of ensuring safety in the workplace. ASGCO's new Inspection Door allows for safe visual inspection of conveyor equipment while the conveyor is running.

The ASGCO Chute Inspection and Access Doors are a necessary part of any material handling system. By looking through the removable inspection screen guard, standard on every door, it is now possible to check the condition of the equipment inside the chute without access to moving parts and the risk of injury. The surfaces slope away from the door panel on the interior side of the screen to prevent material build-up from accumulating, reducing fire hazards due to PRB coal.

By adding an inspection door to your existing head chute, blade change-out and chute clean-out are easier then ever.

o Safety - inspection screen guard standard on every door for the ability to safely inspect equipment while it is running.

o Re-designed Frame - has a 45 degree flange to shed fines from accumulating on the interior of the door.

o Low Profile Steel Construction - with EPDM dust seal that can withstand temperatures from -40 degrees F to 200 degrees F.

o Available in 3 standard sizes: 12" x 12", 12" x 18" and 18" x 24"

o Quick and easy installation

Contact ASGCO today for more information on ASGCO CHUTE INSPECTION DOORS at 1-800-344-4000 or log on to to familiarize yourself with this and many more ASGCO products and services.
