Industrial Touch Monitors feature 15 in. LED backlight panel.

Press Release Summary:




Designed for industrial applications and harsh environments, Model ITM-5115 has IP54 flat sealed front panel and supports operating temperatures from -20 to 60°C. Basic stand-alone Series ITM-5115R M has VGA/DVI input interfaces, while Series ITM-5115 C with optional Box Computer in rear offers all-in-one solution. Series ITM-5115R L and P allow integration with Advantech pluggable Embedded Box Computers via 36-pin LVDS input interface and 164-pin golden finger connections.



Original Press Release:



An Industrial Touch Monitor with Integrated Services



Irvine, California - Advantech, a leading global manufacturer of embedded platform solutions, is releasing the ITM-5115, a 15" XGA Industrial LED monitor with fully flat resistive touchscreen.

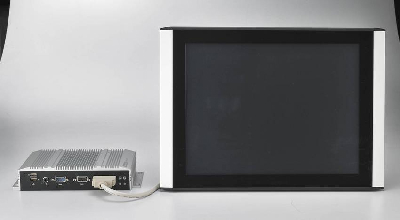

This brand-new ITM-5115 product line provides customers with a complete selection of industrial grade display solutions. The basic ITM-5115R M is a stand-alone monitor display with VGA/DVI input interfaces; the ITM-5115 C series with an optional Box Computer in the rear is an all-in-one total solution; and the ITM-5115R L and P series allow quick and easy integration with Advantech pluggable Embedded Box Computers via a 36-pin LVDS input interface and 164-pin golden finger connections.

Highly Efficient LED Backlighting

While most other industrial displays still use CCFL backlights, Advantech's ITM-5115 backlight panel takes advantage of the reduced power consumption and increased display brightness offered by LEDs. The highly efficient ITM-5115 LED backlight provides a bright display with a wide dimming range, yet realizes a 20 ~ 30% reduction in power. Specifically designed for industrial applications and harsh environments, the ITM-5115 supports operating temperatures from -20 to 60° C, exceeding industrial standards, and the flat-sealed front panel has IP54 dust and liquid protection. The absence of an inverter makes for highly reduced EMI emissions.

More Flexibility, Better Stability

The ITM-5115 industrial monitor is both rugged and elegant, with the side frame rails tidily concealing a variety of peripheral connection cables. The fully flat front touch screen delivers a crisp viewing experience while allowing for easy cleaning. Panel, wall, desktop, and swing-arm VESA mounting are all supported, to accommodate a variety of application needs.

The touch screen, front bezel logo, and installation accessories can be fully customized, saving SI time and effort and shortening time-to-market. ITM-5115 is ideal for kiosk/POI use, HMI equipment controller monitor or other self-service equipment. For added flexibility, more Advantech Embedded Box IPCs designed to co-operate with the ITM-5115 will be available soon.

Last but not least, ITM-5115 is a complete product line that offers a variety of selections: standalone monitor, all-in-one computer, or even all-in-one computer with choice of OS system. ITM-5115R M series (stand-alone monitor) and ITM-5115R C series (all-in-one Embedded Box IPC) are available now, and will be followed by ITM-5115R L series (LVDS interface) and ITM-5115R P series (Pluggable Embedded Box IPC) in 2011/Q3.

ITM-5115

15" XGA Industrial LED Monitor with Fully Flat Resistive Touchscreen

o 15" XGA LED backlight panel provides 20 ~ 30% power savings

o -20° C ~ +60° C wide range operating temperature

o Easy-clean 5-wire resistive touch plane

o Peripheral connectors in frame rail design

o Simple, elegant design with IP54 front panel protection

o VGA & DVI input interface

o Supports panel, wall, desktop, and swing-arm VESA mounting

o Combo RS-232 & USB interface for touchscreen function

o Optional ARK-1500-series Box PC in rear AD box for all-in-one, total solution

About Advantech

Founded in 1983, Advantech is a leader in providing trusted, innovative products, services, and solutions. Advantech offers comprehensive system integration, hardware, software, customer-centric design services, embedded systems, automation products, and global logistics support. We cooperate closely with our partners to help provide complete solutions for a wide array of applications across a diverse range of industries. Our mission is to enable an intelligent planet with Automation and Embedded Computing products and solutions that empower the development of smarter working and living. With Advantech, there is no limit to the applications and innovations our products make possible. (Corporate Website: www.advantech.com).
