Imaging Spectrometer offers reflective correction optics.

Press Release Summary:




Equipped with select accessories, Model 2061 can simultaneously monitor spectra from 100 input fibers on 1,024 x 1,024 pixel, ~13 mm² CCD. Spectrometer features 1 m focal length and accepts various Snap-In(TM) diffraction gratings optimized for spectral resolution or for wavelength range coverage. With sensitive, cooled CMOS or CCD detectors, accessible 50 mm focal plane is suited for simultaneously intercepting and analyzing multiple spatially distinct spectral regions.



Original Press Release:

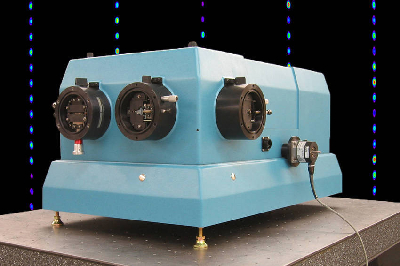

Imaging Spectrometer



New reflective correction optics for spectroscopy imaging applications with two dimensional CCD or CMOS type sensors now available for McPherson's high resolution, one meter focal length spectrometer, Model 2061. Equipped with select accessories, the McPherson spectrometer can simultaneously monitor spectra from one hundred input fibers on one commercial 1024*1024 pixel, ~13mm square CCD. The one meter spectrometer accepts various Snap-In(TM) diffraction gratings optimized for spectral resolution or for wavelength range coverage. With sensitive, cooled CMOS or CCD detectors, the accessible 50mm focal plane is ideally suited for simultaneously intercepting and analyzing multiple spatially distinct spectral regions.

The newly introduced imaging optics enhance the McPherson spectrometer system. Unknown input light from multiple samples, or different regions of one sample, result in distinct high resolution and spatially distinct spectra at the focal plane. Light brought to the spectrometer entrance slit by free-space optics or fiber optics; facilitate difficult measurements of ion temperatures, plasma formation, temperature, boundary layer interaction, and more, even in hostile environments.

Spectral analysis of spatially distinct events via multiple fibers benefit from McPherson spectrometer accessories like multiple entrance slit adapters. They are variable in width, to adjust for resolution and light intensity, and adjustable with respect to image rotation and fiber matching. Put a filter in the optical path, add a multiple fiber assembly, and monitor many, many remote and spatially distinct spectral events simultaneously. Consult McPherson to be sure the spectrometer is ready for implementation in your specific application.

McPherson, Inc. (Chelmsford, MA USA) manufactures a variety of instruments that measure and tune specific wavelengths of light for many disciplines of spectroscopy. The company is proud of its ongoing role in building and delivering research instrumentation to domestic and international universities and research laboratories for over 50 years.

For more information contact:

Erik Schoeffel, McPherson, Inc., 7A Stuart Road, Chelmsford MA 01824-4107 USA
Telephone 978-256-4512 (or 1-800-255-1055); Fax 978-250-8625
Email MCP@McPhersonInc.com and check out our web site at www.McPhersonInc.com
