Illuminated Rocker Switches feature snap-in mounting.
Press Release Summary:
Designed with current ratings of 9 A at 125 Vac or 6 A at 250 Vac, miniature CWSC Series is available with full face LED illumination in red, green, or amber to give operators at-a-glance status indication. Mechanical life of 30,000 operations minimum is made possible by quick-make, quick-break contact mechanism, which limits arcing. Constructed with polyamide housing and polycarbonate rocker, switches have solder lug/.110 in. quick connect terminals.
Original Press Release:

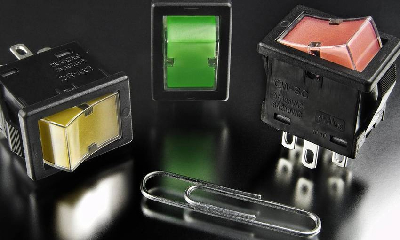

NKK Switches Announces CWSC Series of Miniature, Illuminated Rocker Switches
Series features labor-saving snap-in mounting
SCOTTSDALE, Ariz. (March 26, 2009) - NKK Switches, the world's leading designer and manufacturer of innovative electromechanical switching devices, is expanding its product line of rocker-style switches by introducing the CWSC Series of miniature, illuminated rockers. The CWSC Series features front panel, snap-in mounting that eases installation and lowers assembly cost.
The series is available with full face, bright LED illumination in red, green or amber to give operators an at-a-glance visible status indication. The illumination is diffused through a matching clear cap to guarantee even color distribution.
These switches are uniquely designed to have current ratings of 9A @ 125V AC or 6A @ 250V AC in a compact body. The long mechanical life of 30,000 operations minimum is made possible by the quick-make, quick-break characteristic of the contact mechanism which limits arcing. This single-break, snap-acting contact mechanism provides smooth actuation and audible feedback to operators.
The interior shield of the CWSC switch protects the rocker from any contamination of carbon generated by potential arcing. This extra precautionary measure translates into even better electrical life characteristics.
The housing is constructed of a polyamide material and the rocker of a polycarbonate substance. Terminals are Solder Lug/.110" quick connect, and can be used with connectors to facilitate wiring requirements. The terminal alignment is offset, resulting in high insulation resistance and increased dielectric strength.
The CWSC Series of illuminated, miniature snap-in rocker switches is UL Recognized and CSA Certified. Approval markings are standard on every unit.
A leading designer and manufacturer of electromechanical switches, NKK Switches offers one of the industry's most extensive selections of illuminated, process sealed, miniature, specialty, surface mount and programmable switches. NKK manufactures more than 3.5 million toggle, rocker, pushbutton, slide, rotary, DIP rotary, keypad and keylock switches, each of which can be used as the foundation of a customized design. All switches are designed and manufactured to provide the quality and dependability that has made NKK the benchmark for reliability for over half a century.
NKK continues to lead the industry in responding to the needs of the marketplace with innovation, high reliability, customization and a commitment to excellence. The company provides a full suite of customization solutions that include design, programming, printing and support. NKK maintains a complete network of qualified representatives and distributors through the United States, Canada, Central and South America, Europe and Asia.
Engineers who design the human-machine interface for their products rely on the broad product line, specialized design expertise and customer support of NKK Switches. For more information, contact NKK Switches, 7850 E. Gelding Dr., Scottsdale, AZ 85260. Phone: (480) 991-0942. Fax: (480) 998-1435. Visit the NKK Web site at www.nkkswitches.com.
