IDC Cable features optional strain relief system.

Press Release Summary:




Featuring Tiger Beam one-point Post and Beam contacts, Tiger Beam IDC Cable consists of .0787 in. pitch socket system with choice of up to 25 pins/row. TLSD Series mates with .0787 in. headers and stackers including shrouded, low profile, modified surface mount and through-hole options. Available in single or double ended models, 28 AWG flat cable IDC system offers conductor breakouts, daisy chains, and notch polarization, as well as reversed, middle reverse, or outside reverse options.



Original Press Release:

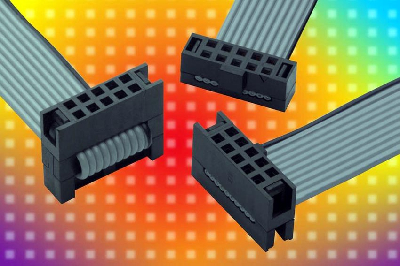

Samtec Introduces Low Cost Rugged Flat Cable IDC System



Samtec has recently added a new Tiger Beam IDC Cable (TLSD Series) to its rugged IDC Cable line. The TLSD assembly has an optional strain relief system for rugged high reliability applications, it also features Samtec's Tiger Beam one-point, Post and Beam contacts resulting in a highly reliable, but cost-efficient alternative to Samtec's 2mm (.0787") Tiger Eye IDC Cable (TCSD Series) which uses a high performance four-finger contact system.

The low profile Tiger Beam IDC Cable is a 2mm (.0787") pitch socket system with a choice of up to 25 pins per row. It mates with a variety of standard Samtec 2mm (.0787") Headers and Stackers including shrouded, low profile and modified surface mount and through-hole options.

The 28 AWG flat cable IDC system is available single or double ended and in a choice of lengths. Standard options include conductor breakouts, daisy chains, reverse wiring, reverse notches, notch polarization, as well as reversed, middle reverse, or outside reverse options.

Prices vary by number of contacts and length of cable; most start at $ .10 per contact, per assembly.

For more information on Samtec's complete line of Rugged Flat Cable IDC systems, contact: Samtec, Inc. P.O. Box 1147 New Albany, IN 47151-1147 Phone: 1-800-SAMTEC-9 or 812-944-6733 Fax: 812-948-5047 Internet: www.samtec.com E-mail: info@samtec.com.
