Horizontal Machining Center optimizes titanium processing.
Share:
Press Release Summary:
Utilizing twin ballscrew-driven axes configuration in X-Y-Z and basic B-axis table, 5-axis Model MEGA5-800 incorporates A-axis tilt-spindle with 180° sweep. Machine accommodates parts up to 1,300 mm diameter and 2,000 mm high while providing X, Y, Z axis travels of 1,425, 1,325, and 1,265 mm. Feed rate is 60 m/min and acceleration/deceleration rate is 1 G. Intended for hard metal applications, XT spindle delivers base speed of 375 rpm and max speed of 6,000 rpm.
Original Press Release:
Cincinnati Machine's Versatile New 5-Axis HMC Demonstrates Optimized Titanium Processing Package at IMTS 2006
MEGA5-800 machine incorporates special performance features including dynamic tuning, coolant delivery system options and tooling to boost titanium throughput by 50 to 100 percent.

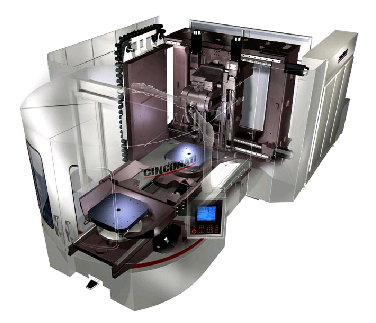

Chicago, IL, September 6, 2006 - Cincinnati Machine introduces the new MEGA5-800 5-axis horizontal machining center at IMTS 2006 in Booth A-8218. Building upon the highly successful 4-axis MEGA Series, as well as Cincinnati's 25 years of experience in the production of 5-axis horizontal machining centers, this machine promises to set the standard for performance in its class. Utilizing the basic MEGA twin ballscrew-driven axes configuration in X-Y-Z and the basic MEGA B-axis table, the new 5-axis model incorporates an extremely compact A-axis tilt-spindle with 180° sweep. This combination of standard features provides precision, 5-sided machining capability for high quality, economical part processing, as well as full 5-axis contouring for processing highly complex parts.
Optimized for Titanium Machining
The IMTS demonstration highlights Cincinnati Machine's suite of technologies and techniques for high-efficiency machining of titanium. The rapidly growing use of titanium in aerospace and other applications has focused industry attention on the need for improved processing capabilities for this difficult-to-machine material, and Cincinnati Machine has responded with a comprehensive package covering machine dynamics, tooling, coolant delivery, chip handling, and even raw material characteristics.
Cincinnati Machine has equipped the MEGA5 with a combination of features that yields throughput increases of 50 to 100-percent compared to conventional processes. The company's titanium process engineers are available in the Cincinnati Machine booth during and after demonstrations to answer questions relating to improving the productivity of titanium machining operations.
Superior Travels, Speed and Capacity
With its extended Y-axis, the MEGA5 offers 1425 mm of X-Axis travel, 1325 mm of Y-Axis travel, and 1265 mm of Z-Axis travel providing the range and part capacity to meet a wide variety of customer needs. Part sizes up to 1300 mm (51.2") diameter and 2000 mm (78.7") high, weighing 2200kg (4840 lbs) can be accommodated. The machine's feed rate of 60 m/min (2,362 ipm) and 1G (386 in/s²)(9.8 m/s²) acceleration/deceleration rate provide unmatched metalcutting performance compared to other machines of this class.
Spindles For Any Workpiece Material
The MEGA5 is available in machine configurations suitable for cutting a variety of materials. The XT spindle configuration is intended primarily for hard metal applications. The XT spindle package is available with a geared spindle providing a base speed of 375 rpm and a maximum speed of 6,000 rpm. Duty rated at 45 kW (60 Hp)/1,146 Nm (845 ft-lb) and continuous rated at 37 kW (50 Hp)/942 Nm (695 ft-lb), it is offered in either HSK 100A or ANSI 50 (ISO 7388.1) versions.
The MEGA5 AP spindle package is intended primarily for aluminum workpieces. A choice of two high-speed spindles is available, one rated for continuous operation at 50 kW (67 Hp) and the other rated at 30 kW (40 Hp). Both spindles feature HSK63A tooling interface and are capable of 24,000 rpm operation.
Proven Components and Design
The MEGA5 utilizes the same rigid, thermally stable symmetrical design as the previously introduced 4-axis MEGA machines. The machine base incorporates an extra large center trough to handle high volumes of chips. It also features three-point leveling in a compact footprint that eliminates the need for special foundations.
The A-axis tilt spindle used on the MEGA5 machine is adapted and refined from the spindle used on the highly successful Cincinnati Machine MAGNUM H5-1000 introduced in 1999.
Minimized Parasitic Time
In addition to its world-class axes rates, the MEGA5 incorporates other features to minimize non-cutting time and maximize throughput. Equipped with the field proven automatic tool changer from the MEGA4, HSK100A or ANSI 50 tools weighing up to 30 kg (66 lbs.) are exchanged in less than 2.5 seconds tool-to-tool. Lighter tools in the 0-to-5 kg range can be changed in less than 2 seconds. The pallet changer is equally impressive, swapping 800mm x 800mm pallets in 14 seconds. The combination of speed and rigidity, along with minimized parasitic time and the reduced workpiece setup time, which results from the 5-sided and 5-axis capabilities, increases the overall machine utilization percentage of the MEGA5 beyond that of a normal horizontal machining center.
