Foot Switch combines control and protection.

Press Release Summary:

Offered in momentary action configuration with SPDT or DPDT circuits, Classic IV foot switches meet environmental ratings requirements of NEMA Types 1/2/4/6/6P/13 and IP68. Cast aluminum housing withstands use in extremely wet applications, and formed steel guards are available for single and twin models to provide some foot protection. Unguarded models have an aluminum base plate with nonskid base. Switches are suited for use with types of equipment.

Original Press Release:

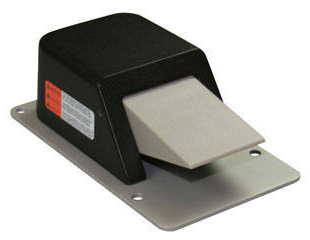

Linemaster Classic IV Foot Switch

February 20, 2009.............Woodstock, CT, The Linemaster Classic IV foot switch was designed with a rugged cast aluminum housing for ease of use and long life in extremely wet applications. It is offered in momentary action and is available in SPDT and DPDT circuits. Formed steel guards are available for both the single and twin models to provide the customer with some foot protection. All Classic IV foot switches are NEMA Types 1, 2, 4, 6, 6P & 13 and meet the requirements of EN 60529 Degree of Protection IP68.

These foot switches can be used on a variety of equipment such as material handling equipment, light industrial machines, operating communication equipment, tube cleaners and medical equipment. Custom switches are available upon request and options can include private labeling, custom paint finishes, and cordsets built to the customer's specifications.

Contact: Linemaster Switch Corp., P O Box 238, Woodstock, CT 06281 USA.
Tel. 860-974-1000, FAX 800-974-3668, Web:
