Flow Instruments are offered with explosion-proof housing.

Press Release Summary:




RT and EB field mounted flow instruments are available with stainless steel, flame- and explosion-proof housing that meets industry standards for ingress protection to IP65 and NEMA 4X for enclosing indoor/outdoor electronic instruments. Operator interface is achieved via 4 externally mounted momentary action pushbuttons, which enable non-invasive contact with instrument using magnets. Also, users can view and operate desired program without need to remove cover.



Original Press Release:

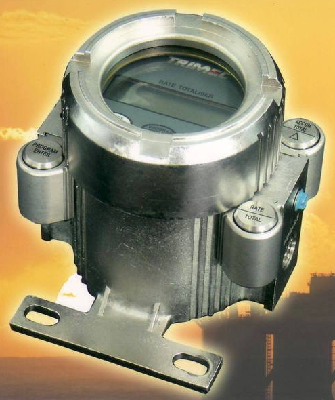

Exd Explosion-Proof Housing for Hazardous Area Applications



TRIMEC-EUROPE have introduced a new Exd explosion proof housing made from stainless steel which can be specified for its range of RT and EB field mounted flow instruments when used in challenging applications, such as offshore oil production. The explosion-proof housing is made from stainless steel and meets industry standards for ingress protection to IP65 and NEMA 4X for enclosing indoor and outdoor electronic instruments.

Operator interface is achieved via four large momentary action push buttons externally mounted, which enable non-invasive contact with the instrument using magnets. Also, users can view and operate the desired program without the need to remove the cover. The housing is rugged, yet compact and available as either a surface mount, pipe mount or rack mount options.

The Exd housing is certified ISSeP-ATEX flame-proof, IIGD EEx d IIC for factory mutual explosion-proof, class1, Div1, groups A,B,C and D, and SAA flameproof, Ex d IIC. It can be specified for a wide range of Trimec flow instruments including battery totalisers, automatic batch controllers and the rate totaliser with 4-20mA, alarm and scaleable outputs, dual flow inputs and linearisation.

More information is available from: Stephen Cox, Trimec (Europe) Ltd,
Haywards Heath, West Sussex, RH16 1BP, UK. Tel: +44 (0) 1444 417880
Fax: 417668. Email: sales@trimec-europe.com www.trimec-europe.com
