Fixed Frequency Synthesizer operates at 10 GHz.

Press Release Summary:




Operating in X-band, Model SFS10000C-LF features typical phase noise of -100 dBc/Hz at 10 kHz offset and typical sideband spurs of -70 dBc. Unit delivers output power of 0 dBm with VCO voltage supply of 5 Vdc while drawing 90 mA and phase locked loop voltage of 3 Vdc while drawing 11 mA over temperature range of -40 to 85°C. Housed in SFS-L1 package measuring 1 x 1 x 0.22 in., RoHS-compliant synthesizer features typical 2nd harmonic suppression of -30 dBc.



Original Press Release:

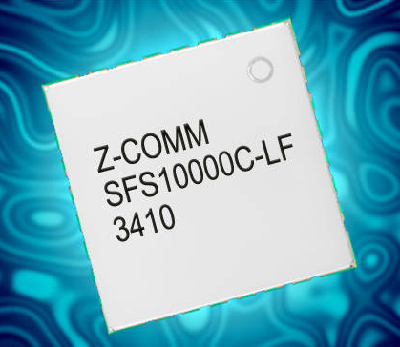

Fixed Frequency Synthesizer: SFS10000C-LF Features Ultra Low Phase Noise



Z-Communications, Inc. announces a new RoHS compliant Fixed Frequency Synthesizer model SFS10000C-LF in X-band. The SFS10000C-LF is a single frequency synthesizer that operates at 10 GHz. This synthesizer features a typical phase noise of -100 dBc/Hz @ 10 KHz offset and typical sideband spurs of -70 dBc.

The SFS10000C-LF is designed to deliver a typical output power of 0 dBm with a VCO voltage supply of 5 Vdc while drawing 90 mA (typical) and a phase locked loop voltage of 3 Vdc while drawing 11 mA (typical) over the temperature range of -40º to 85º C. This Fixed Frequency Synthesizer features typical 2nd harmonic suppression of -30 dBc and comes in Z-Comm's standard SFS-L1 package measuring 1 in. x 1 in. x 0.22 in. It is available in tape and reel packaging for production requirements. The SFS10000C-LF is also ideal for automated surface mount assembly and reflow.

SFS10000C-LF is an excellent choice for broadband transmission and fixed wireless applications that require extremely low phase noise performance and superior 2nd harmonic suppression. Additional specifications for this product can be found on-line at www.zcomm.com/webstore/ProductInfo.aspx?productid=SFS10000C-LF .

For further information on this model or any other product from Z-Communications, Inc. please contact our Applications department via e-mail at applications@zcomm.com or call us at 858-621-2700.

Part Number: SFS10000C-LF

Delivery: Stock-6 weeks

Contact: Z-Communications, Inc.

Tel: 858-621-2700

Fax: 858-486-1927

Email Technical Support - mailto:applications@zcomm.com

Email Sales: mailto:sales@zcomm.com

URL: www.zcomm.com
