Constant Voltage LED Power Supply is available with flying leads.

Press Release Summary:




Supplied in IP67-rated, fully encapsulated, 8.98 x 2.83 x 1.73 in. enclosure, GLV-24-150 has universal 100–277 Vac input range and output voltage of 24 Vdc at 6.25 A. Specifications include 90% efficiency, 0.95 PFC, 500 mV peak-to-peak noise and ripple, 200 ms rise time, 2% load regulation, and 50 A max cold start inrush current at 220 Vac. Respectively, input current is 1.8 and 0.9 A at 110 and 220 Vac at full load. Over voltage, short circuit, and over temperature protection are standard.



Original Press Release:

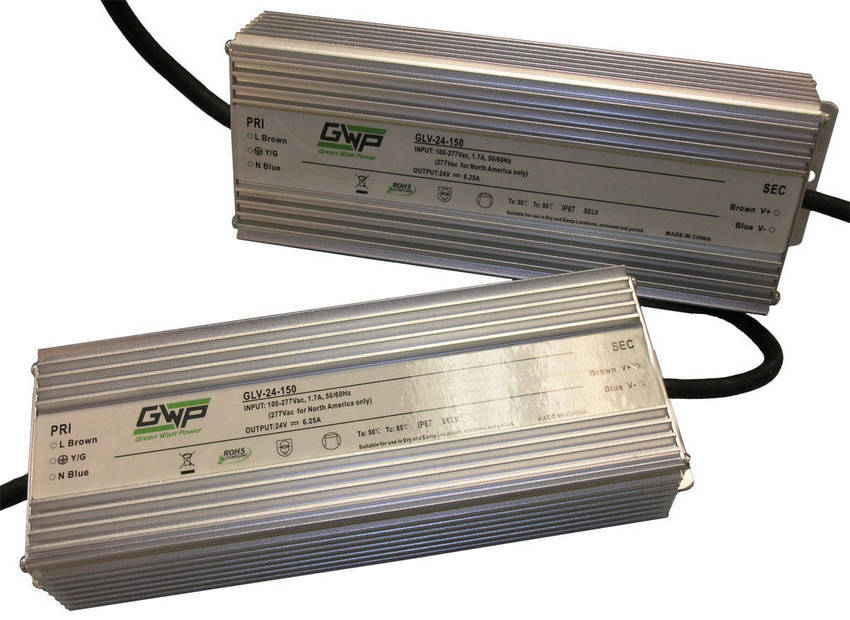

150 Watt Constant Voltage LED Driver



Green Watt Power, a division of Calex Mfg. Co., Inc. of Concord, California, announces the introduction of the GLV-24-150. The GLV-24-150 is a constant voltage LED power supply with a universal AC input range, 100 - 277VAC. The GLV-24-150 has an output voltage of 24 VDC at 6.25 Amps. The unit is housed in an IP67 rated fully encapsulated enclosure measuring 8.98” x 2.83” x 1.73” (228mm x 80mm x 45mm). The GLV case has flanges for convenient mounting and flying leads are available making the unit suitable for a variety of interconnect requirements.



The efficiency of the GLV-24-150 is 90%. The Power Factor Correction is 0.95. The input current at 110VAC at full load is 1.8A and 0.9A at 220VAC full load. The cold start inrush current at 220VAC is 50A max. Noise and ripple is 500mV peak to peak. Rise time is 200ms and load regulation is 2%. The GLV-24-150 is RoHS compliant and features Over Voltage Protection, Short Circuit Protection with auto recovery and Over Temperature Protection. As with all Green Watt Power products, the GLV-24-150 is backed by a Five Year Warranty.



The GLV-24-150 is available from stock to eight weeks. Contact the factory for pricing. To view a complete data sheet of the GLV-24-150 go to http://www.greenwattpower.com/150CV.html. To see our complete product line visit our website at www.greenwattpower.com. We welcome your inquiries at sales@greenwattpower.com or call us toll free at 800-542-3355.
