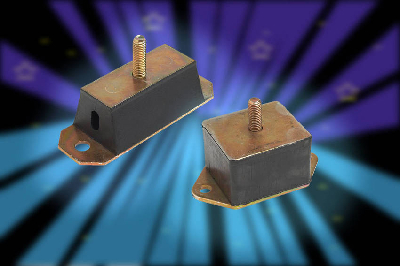

Conical Antivibration Mounts handle loads up to 3,598 lbf.

Press Release Summary:




Designed to dampen shock and vibration, V12Z06MA Series features metric housing made of zinc plated steel and isolator made of nitrile rubber compound, which offers pliability and elasticity. Max isolation load of 6 isolators in series ranges from 1,124-3,598 lbf. With durometers ranging from 45-60 ±5, rectangular mounts are suited for controllers, large pumps, fans, motors, compressors, and other medium load equipment.



Original Press Release:



New Series of Rectangular Antivibration Mounts from AAC Are Designed for Compression Loads up to 3598 lbf



New Hyde Park, NY -- A new series of conical antivibration base mounts from Advanced Antivibration Components - AAC are designed to dampen shock and vibration for compression loads up to 1632 kgf (3598 lbf). Identified as the V12Z06MA...Series, their metric housing is made of zinc plated steel and the isolator is made of a nitrile rubber compound which offers excellent pliability and elasticity. The maximum recommended load of the 6 isolators in the series ranges from 510 kgf to 1632 kgf (1124 lbf to 3598 lbf). They are featured at the AAC eStore where you can order online, request a quote, download CAD models, check stock plus view catalog and technical pages. Typical applications include their use under controllers, large pumps, fans, motors, compressors, and other medium load equipment. Their durometers are 45 and 60 ± 5.

AAC stocks a wide range of antivibration and shock isolation products which include: stud & nut type mounts, base plate fastened mounts, wheels, leveling & foot mounts, suspension mounts, spring, steel mesh & cable mounts, bumpers, shock absorbers & channel mounts, bushings & grommets, pads & tapes, and couplings. These products are stocked in different materials including: rubber, neoprene, urethane, Sorbothane®, stainless steel mesh and springs. Many are suitable for use in extreme environmental conditions. Of special interest is a complete selection of Silicone Gel floor mounts, pads, sheets, plus paste-type thermal gel.

Additional technical specifications are contained in Catalog V110 or at www.vibrationmounts.com. Advanced Antivibration Components - AAC, 2101 Jericho Turnpike, Box 5416, New Hyde Park, New York 11042-5416. Phone: 516-328-3662. Fax: 516-328-3365 Web: http://vibrationmounts.com/NewProducts/RectangularMounts.htm
