Compact Surface Mount Reed Sensors are RoHS compliant.

Press Release Summary:

Capable of switching up to 20 W with individual maximums of 1.0 A and 200 V, MK23 Series non-molded sensors feature minimum of 200-320 Vdc across contacts. Sensors offer multiple lead designs, switching options including SPST or SPDT versions, and require no external power to operate. With smallest version measuring only 13.0 x 1.8 x 2.0 mm, sensors allow for high density PCB population, and suit any application requiring single- or multi-point position or liquid level sensing.

Original Press Release:

MEDER Electronic, Inc. - Introduces a Lower Cost Compact Surface Mount Reed Sensor

MEDER electronic, Inc. today introduced a series of non-molded surface mount sensors, offering a more economic and compact design as compared to their over-molded sensors.

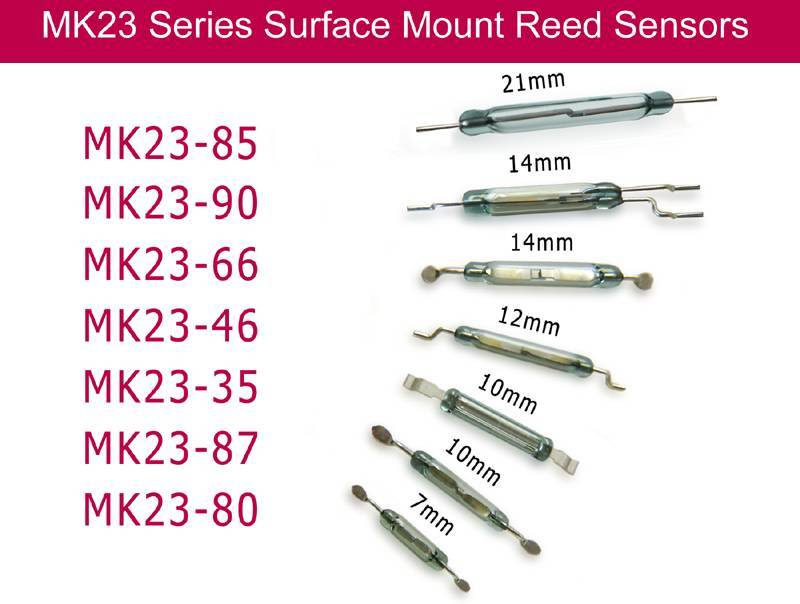

The MK23 Series offers versatility with multiple lead designs, switching options including SPST or SPDT versions, and require no external power to operate. They can be designed into any application where single or multi-point position or liquid level sensing is required.

The smallest of the MK23 Series Reed Sensors measures only 13.0mm x 1.8mm x 2.0mm (0.51" x 0.07" x 0.078"), which allows for high density PCB population with multipoint sensing. The MK23 series is sold in Tape & Reel packing and is suitable for pick and place automation.

Capable of switching up to 20 Watts with individual maximums of 1.0 Amps and 200 Volts; the MEDER MK23 series surface mount Reed Sensors have a minimum of 200 VDC to 320VDC across the contacts. These reed sensors are RoHS compliant.

Contact sales at the number below for quantity pricing; lead-times are stock to 6 weeks. MEDER's stocking distributors have inventory available for fast evaluations and prototyping.

MEDER electronic, Inc. manufactures standard, modified and customized reed switches, reed relays, reed sensors, and liquid level sensors to fit specific applications for electronic OEMs. MEDER electronic is an official source for OKI reed switches. MEDER electronic Inc. products and OKI reed switches are supported by a worldwide network of distributors and representatives who provide design assistance, service and quick delivery.

For more information about MEDER electronic Inc.'s new reed products contact: MEDER electronic Inc, 10 Little Brook Rd, West Wareham, MA 02576. Telephone 508-295-0771: Fax: 508-295-0733:

To learn more about MEDER electronic, Inc. visit:

Company Name: MEDER electronic Inc.
Address 1: 10 Little Brook Rd
City: West Wareham
State: MA
Zip: 02576
Phone: 508-295-0771

Contact Name: Julie Dargie
Title: Marketing & Distribution Mgr
