Cable Extension Position Sensors are offered in 3 versions.

Press Release Summary:




Using thin, flexible stainless steel band, POSITAPE® WB17KT series tape sensors offer measurement ranges of 137, 255, and 393 in. They are available with analog 0-10 V, 4-20 mA, or 1 kW outputs, as well as with either absolute digital SSI or CAN-Bus outputs. Featuring either M12 or D8 connector for electrical connection, sensors are suited for harsh environments that are associated with mobile cranes and related construction equipment.



Original Press Release:

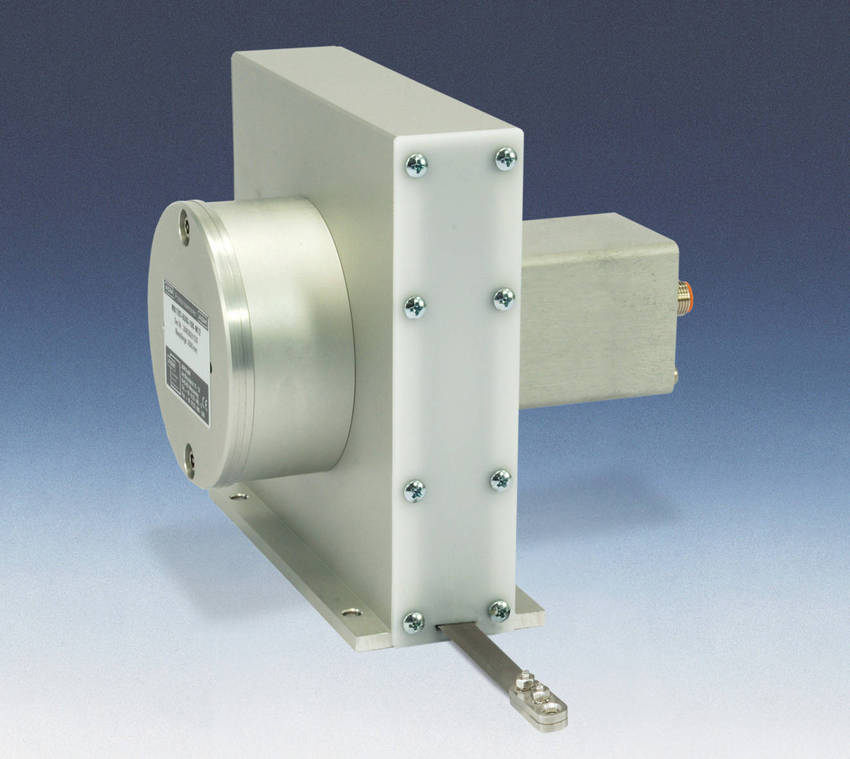

ASM Introduces New Stainless Steel Tape Position Sensor



Elmhurst, IL (May 5, 2009) - ASM Sensors, Inc. has expanded its line of absolute linear position sensors with the new POSITAPE® WB17KT series of stainless steel tape sensors with measurement ranges of 137, 255 and 393 inches. This robust sensor features an extremely high service life in a very compact housing.
For over 30 years, ASM Sensors has been developing WS® cable extension position sensors. WS® sensors have been successfully used in a myriad of automated process control applications by using a flexible, stainless steel cable that is wound with only a single layer around a cable drum. This drum is coupled to an angular sensing device such as a potentiometer or encoder for an electrical signal.

Building upon this proven technology, the new POSITAPE® series replaces the thin measurement cable with a thin, highly flexible stainless steel band. The WB17KT operates in a similar manner as a tape measure. An advantage of this technology is the ability to have a long measurement range in a relatively compact housing. Another advantage is the almost unlimited life of the metal tape and its suitability for the use in confined locations where pulleys must be used.

Due to the smooth surfaces of the tape, the risk of ice build is reduced. An optional brush is available to wipe off debris from the tape as it is being retracted. With these features, the WB17KT series is a rugged, industrial grade sensor that is suitable for the harsh environments that are associated with mobile cranes and related construction equipment.

The WB17KT series is available with analog 0-10V, 4-20mA or 1 kOhm outputs. This sensor is also available with either absolute digital SSI or CAN-Bus outputs. The electrical connection can be made with either a M12 or D8 connector.

For further information please contact:
Application Support: 630-832-3202
ASM Website: www.asmsensors.com
ASM Email: info@asmsensors.com
