Automatic Bandsaws are designed for speedy, safe operation.
Press Release Summary:
Featuring modular components to accommodate individual cutting requirements, HBV Series employs frequency controlled main drive motors with variable-speed range of 65-460 sfm and CNC controls. Hydraulic blade tensioning and material clamping systems ensure steady and precise cuts at all speeds, while heavy-duty machine covers facilitate access to cast Meehanite band wheels and blades. Model capabilities max out at cutting rounds up to 20 in. dia and shapes up to 19.7 x 19.7 in.
Original Press Release:

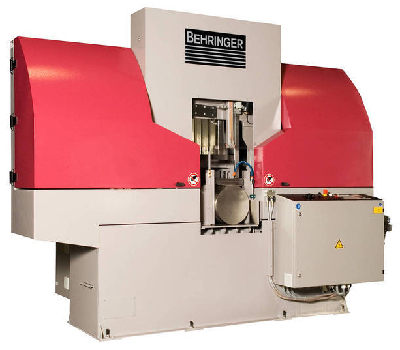

Sleek, Speedy and Safe Define the New Line of HBV Automatic Bandsaws
Morgantown, PA (July 1, 2009) - Building upon sixty years of field experience producing machines for the metal cutting industry across the globe, Behringer Saws has introduced a new line of automatic bandsaws designed for today's workplace. The series of HBV Automatic Bandsaws feature modular components to suit a company's individual cutting requirements, upgrades for maximum operator safety, high cutting efficiencies and a sleek new look for the modern shop floor.
Built with the engineering quality for which Behringer saws are known, the HBV Series of bandsaws are constructed with new streamlined, heavy-duty machine covers for easy access to the saw's cast Meehanite band wheels and blades. These saws come equipped with an extensive array of standard components including full safety coverings, a frequency controlled saw drive and a chip conveyor that runs the length of each machine for clean and efficient removal of chips. Standard equipment also includes hydraulic blade tensioning and material clamping systems to ensure steady and precise cuts at all speeds. Users can add numerous options to build upon the base machine including blade deflection monitoring systems and linear laser measuring devices to improve upon the machine's already superior cutting efficiencies.
Designed for safe operation, pre- and post-cut, the new HBV Series bandsaws also come with material handling enclosures on the feed end of the saw and hardened plastic shields on the front blade side of the cutting table. These covers reduce noise and discourage operators from venturing into the cutting area while still providing excellent line of sight to the material being cut and easy access for cleaning and the changing of saw blades.
The Behringer HBV Series starts with two fully automatic models, both designed with strong cast iron frame construction for long-life in the shop and low-vibration through the cut. The HBV 500A can cut rounds up to 20" in diameter and shapes up to 19.7" wide x 19.7" high and the HBV 420A can cut rounds up to 16.5" in diameter and rectangles up to 19.7" wide x 16.5" high. Both models are equipped to automatically cut material continuously for low maintenance operation.
The HBV Series features frequency controlled main drive motors and have a variable speed range of between 65 - 460 Surface Feet Per Minute (SFM). The speed is easily set, controlled and monitored on the operator's terminal featuring a diagnostic display, data entry and program storage. State-of-the-art CNC controls provide optimum production and cutting efficiencies requiring minimal operator intervention.
Behringer Saws, Inc. provides a full range of sawing and turnkey pre- and post-cut material handling productivity-enhancing products. Behringer supplies world-class quality automatic bandsaws to corporations, service centers, job shops and manufacturers throughout the world. The company also offers the Behringer Eisele brand of manual, semi-automatic and automatic miter circular cold saws, high performance circular cold saws utilizing bi-metal or carbide saw blades and CNC miter circular sawing systems. Also, the Vernet Behringer line of structural fabricating equipment includes high performance drilling, punching, shearing, notching and marking machines along with beam coping and drilling and sawing lines.
For more information on the HBV Series of Automatic Bandsaws, contact Behringer Saws, Inc., 721 Hemlock Road, Morgantown, PA 19543. Call toll-free at 888-234-7464 or visit Behringer's website at www.behringersaws.com
