5C Holder allows machining of any custom angle.

Press Release Summary:




Available for mounting in any Kurt 6 in. vise, 5C Angle Boss (Model No. K5CVMAB) is manually clamped 5C fixture that allows machining of any custom angle desired or 24 precision indexes (±2 arc-min) using mount's index pin. Setup requires user to clamp 5C fixture using 1¼ in. thick ground steel jaws, and parts can be clamped/unclamped using 5C clamp screw. Solution accepts 3¼ in., 3-jaw chuck, and collets may be changed from fixture top without disturbing original setup.



Original Press Release:

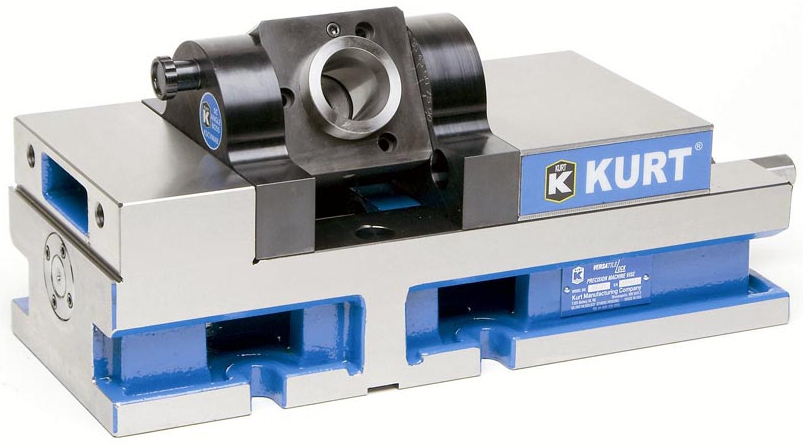

Kurt Introduces the 5C Angle Boss for Mounting in Kurt 6 Inch Vises



Minneapolis, Minnesota: Kurt announces the introduction of the 5C Angle Boss (Model No. K5CVMAB) for mounting in any Kurt 6 inch vise.

This manually clamped 5C fixture allows machining any custom angle desired or 24 precision indexes (+/-2 arc-min) using the mount's special index pin.

Setup is fast and easy. Once the machining position is determined, simply clamp the 5C fixture using the massive 1-1/4 inch thick ground steel jaws. The vise will now hold the 5C fixture for most machining operations. Parts can be clamped and unclamped using the 5C clamp screw. Collets may also be changed from the top of the fixture without disturbing the original setup.

The 5C Model No. K5CVMAB Angle Boss accepts a 3-1/4 inch 3 jaw chuck (sold separately). This is a high quality, dead length 5C holder designed to save many hours of expensive setup time, giving Kurt vise users yet another option for improving machining center productivity.

In addition to standard vises and accessories, Kurt provides integrated custom engineered workholding systems and custom gaging systems for automated manufacturing. Both workholding and gaging are designed around a customer's requirements with systems available for many industries including automotive, medical and aerospace applications.

Interested in more information? Call Kurt in USA and Canada, 1-877-226-7823. Outside USA and Canada, call 1-763-574-8309. Or see at: www.kurtworkholding.com. Email: workholding@kurt.com

Or write to Kurt Manufacturing Company, Industrial Products Division, 1325 Quincy Street NE, Minneapolis, Minnesota 55413. In USA, Fax 1-877-226-7828. Outside USA, Fax 1-612-623-3902.
