Ericsson Extends 3E Gold Design Kit with New Development Boards

o World-Class 3E design kit helps power architects to develop the next generation of energy-efficient systems

o 3E Gold Edition design kit enables easy implementation of Ericsson's Advanced Bus Converters and the PMBus-compliant Point-of-Load DC-DC regulators

o Two new development boards include support for Single-Inline-Package versions of Point-of-Load DC-DC regulators and heavily paralleled operation for high current carrying capability applications

Ericsson has announced an extension to its 3E Gold Design Kit with the launch of two new development board kits. Launched in June 2011, the 3E Gold Edition Design Kit has been widely used by board and system architects and enables the easy implementation of Ericsson's Advanced Bus Converters - the BMR453 and BMR454 - and the company's 3E PMBus-compliant Point-of-Load DC-DC regulators - the BMR462, BMR463 and BMR464.

Developed for system-level power design, the new ROA1285068 and ROA1285077 3E design kits enable systems architects to develop not only the exact power architecture required for their final application, but also to configure and monitor every single component to optimize performance and reduce energy consumption. The two new board kits can also be interconnected with other 3E kits such as the ROA1283835 and the ROA1283836 and can be used as stand-alone kits for smaller systems or educational purposes.

"The availability of these new design and development boards further extend the capabilities of Ericsson's leading-edge 3E Gold Edition Design Kit," said Patrick Le Fèvre, Marketing and Communication Director, Ericsson Power Modules. "In conjunction with the recent launch of the Ericsson Digital Power Compendium, they further demonstrate the company's strong commitment to help engineers in developing advanced power solutions for world-class energy efficiency."

For easy control, monitoring and programming of the target 3E Point-of-Load DC-DC converters, the two boards are PMBus compliant and can be connected via Ericsson's KEP91017 USB-to-PMBus adaptor to a personal computer running the 3E Gold Edition software package.

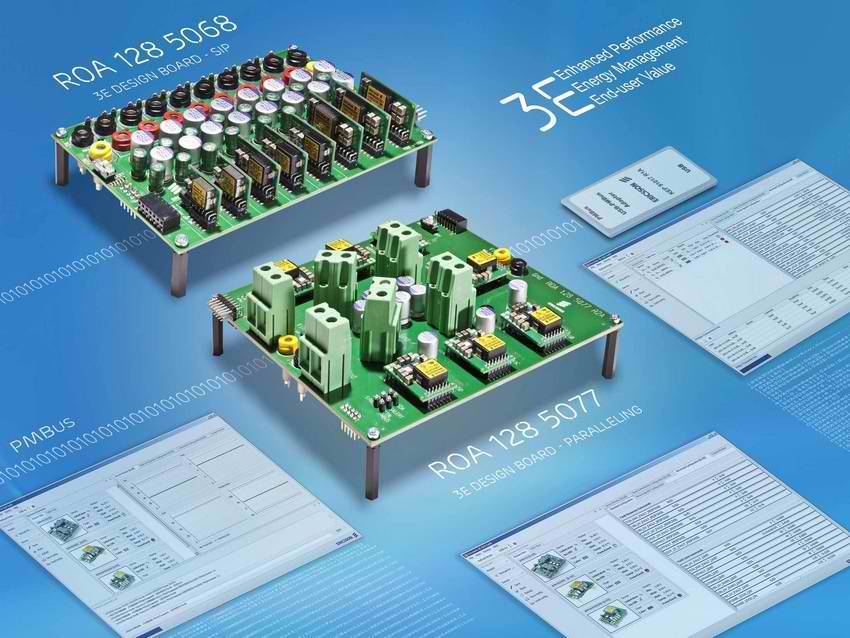

ROA1285068 Design Board - Single-In-Line 3E Point-of-Load

The ROA1285068 is dedicated to the Single-In-Line (SIP) versions of Ericsson's 3E digital Point-of-Load converters. The board includes eight sockets: two for the BMR462/2 (12A SIP 3E-POL); three for the BMR453/2 (20A SIP 3E-POL); and three for the BMR464/2 (40A SIP 3E-POL). In addition to the ability to control, monitor and test single POLs, the ROA1285068 kit also allows parallel operation of up to three modules, delivering up to 120A output current, providing the capability for board power designers to optimize current sharing before application implementation, thereby reducing time-to-market.

ROA1285077 Design Board - Extensive paralleling up to 280A

The ROA1285077 has been specially designed for customers requiring the connection of up to seven modules in parallel, reaching an output current of up to 280A. The board layout has been optimized for high current and includes high-power connectors for connection to external loads; the board also includes seven sockets to accommodate either the 20A BMR463-PI or the 40A BMR464-PI.

Digital Power Compendium

The user guide to the Ericsson 3E Gold Edition software is also available in the recently launched Digital Power Compendium, available for download at, which offers more than 450 pages on important digital power technologies including 17 technical papers and specifications on Ericsson's advanced 3E power converters.


The ROA1285068 and ROA1285077 boards are priced at $800 each.


Patrick Le Fèvre, Marketing and Communication Director

Ericsson Power Modules

Phone: +46 10 716 95 07

Reader Inquiry Reference: E0161(A)

If printing an Internet address please use Power Modules homepage and/or phone number to our International sales office:

Europe, Middle East & Africa: +46-10-716 96 20

Asia Pacific: + 86-21-5990 3258

Americas: +1-972-583 6910 or +1-972-583 5254
