Torchmate    Reno, NV 89502
Dec 19, 2011 Comprising 3-axis motorized system with 2 x-axis drives and 1 y-axis drive and motor, 4X4 CNC Prototyping System is large enough to fabricate medium-sized components. Relay turns plasma torch and other closed circuit tools on and off, while water table upgrade controls dust and airborne particulate. Outfitted with Torchmate 4x4 Driver Software, machine is compatible with CAD/CAM programs that let user create chassis and suspension components, engrave metal, and fabricate metal parts.

AKS Cutting Systems    Cleveland, OH 44135
Sep 23, 2011 Available on accu-kut plasma plate cutting system, tube processing center provides plasma processing of tubes and pipes. When used in conjunction with robo-kut plasma beveling head, system can perform straight or bevel cuts in plate up to 2 in. thick as well as tubes and pipes from 2-6 in. square, rectangular, or round and up to 24 ft long. Featuring unitized, fully welded design, system offers seamless plate and tube changeover.

Hypertherm, Inc.    Hanover, NH 03755 0010
Aug 10, 2011 Approved for Powermax1650®, Powermax1000®, and Powermax1250® systems, Duramax(TM) retrofit torches include HRTs straight torch that is suited for handheld cutting and can be used in hard-to-reach areas. Designed for 40-100 A cutting/gouging with 25 and 50 ft torch lead options, torches come with impact-resistant, fiber-reinforced handles. Conical Flow(TM) nozzle and spring electrode technology help extended consumable life. Convertible machine torch and 75° torch are also available.

Torchmate    Reno, NV 89502
May 02, 2011 Supplied with software that is compatible with CAD/CAM design programs, 2X2 CNC Prototyping System cuts, drills, engraves, and can be used as router or plasma cutter. Machine's repeatability allows users to design part once and manufacture as many as needed. Basic package includes 2-axis machine, 2x2 Driver Software, relay to turn plasma torch or other closed circuit tool on and off, mounting plate, and basic cutting table.

Thermal Dynamics Corp.    Chesterfield, MO 63017
Jan 20, 2011 With 27 A output power on 120 V input and 40 A on 230 V input, portable Cutmaster® 42 cuts up to ¼ in. nominally and up to ¾ in. when jobs require extra power. Design lets user work all day at recommended cut capacity, and Vent2Shield(TM) technology allows use of small compressors. Supplied in heavy-duty carrying case with gloves, glasses, and SL40 plasma torch, machine suits DIYers, automotive and marine mechanics, HVAC professionals, and trade schools.

Miller Electric Mfg. Co.    Appleton, WI 54912 1079
Aug 25, 2010 Accepting any primary input voltage from 208-575 V, single- or 3-phase, 50/60 Hz, Spectrum® 875 Auto-Line is available in handheld and machine torch packages. Auto-line(TM) technology allows use in virtually any location without physical linking mechanism. When connected to Big Blue® diesel engine drives with 12 kW of power, system provides 60 A output to cut 7/8 in. steel at 10 ipm. Auto-Refire(TM) technology automatically keeps pilot arc lit while cutting expanded metal or multiple pieces of metal.

Techno, Inc. - CNC Router Systems    New Hyde Park, NY 11040
Jul 01, 2010 Designed to simplify metal cutting operations, HPLC CNC Plasma Cutter Series is built from heavy-duty welded steel and includes precision drive system and fully automated CNC Plasma Interface to guide users through cutting process. High-quality plasma torch as well as electronic circuitry for automated torch functions promote smooth operation. Unit is available with choice of 3 standard table sizes, which can handle up to 1¼ in. thick material.

Nordson Corp.    Westlake, OH 44145
Apr 07, 2010 Fully self-contained, RIE-1701 bench-top anisotropic reactive ion etch (RIE) system has automated chamber opening system and interlocked chamber enclosure that provides additional safety for those using corrosive gasses. Only vacuum pump package is external to system. Suitable plasma etching and cleaning applications include SiO2, Si3N4, and polyimide passivation removal; interlayer dielectric removal; as well as single-wafer cleaning, descum, stripping, and etching.

Hypertherm, Inc.    Hanover, NH 03755 0010
Dec 02, 2009 Featuring Extreme HyDefinition® technology, HyPerformance® HPR130XD® and HPR260XD® offer argon capabilities, 80 A mild steel bevel process, and PowerPierce(TM) technology for optimal piercing capability. Lead set offers wear resistance, while torch sleeve with integrated bearing design enables infinite rotation. With optional integrated laser pointer, users can accurately align torch on centerline axis or receive visual feedback for programming and robot alignment.

Hypertherm, Inc.    Hanover, NH 03755 0010
Aug 05, 2009 EDGE Pro supports both oxyfuel and conventional plasma cutting systems. It comes pre-installed with Phoenix® software, including CutPro(TM) Wizard to simplify learning and operation of entire cutting system. Unit includes both analog and SERCOS motion control connectivity, touch screen display, and integrated operator's console and it is suitable for wide range of applications-from basic cutting jobs to most complex.

Peddinghaus Corporation    Bradley, IL 60915
May 21, 2009 Employing plasma cutting and precise positioning technologies, Ring of Fire Thermal Processor can process all AISC structural shapes including beams, columns, angle iron, channel iron, HSS square and rectangular tubes, as well as plate and flat stock. System features self-contained dust collection and filtration system, and utilizes no oils or coolants. Capabilities include bolt hole generation, cut-off, surface bevels, weld prep, coping, and electronic marking.

ESAB Welding & Cutting Products    Florence, SC 29501
May 11, 2009 Designed to carry plasma and oxy-fuel cutting stations, Sabre DX Heavy-Duty Gantry Cutting Machine features m3 Precision Plasmarc(TM) system, which allows it to cut and mark with same plasma torch. Available in 200, 360, 450, or 600 A configurations, m3 system provides precision cutting and marking on materials up to 1.5 in. thick and sever capabilities on materials up to 6 in. thick. Sabre DX, supplied in widths from 6-15 ft, reaches speeds up to 1,400 ipm and includes Windows®-based Vision CNC.

Plasma Technologies    Canaan, NH 03741
Apr 22, 2009 Available for Cybermation and Lockformer plasma cutting machines, Retrofit Kit includes everything necessary to replace old electronics with new motors and controls. Hypertherm Automation Edge Ti controller features 15 in. color touchscreen with single station operator's console and built-in servo amplifiers. Also included, MTC software's Design2Fab and Turbo Nest programs provide necessary tools to create complete duct-fitting layouts while minimizing scrap.

ESAB Welding & Cutting Products    Florence, SC 29501

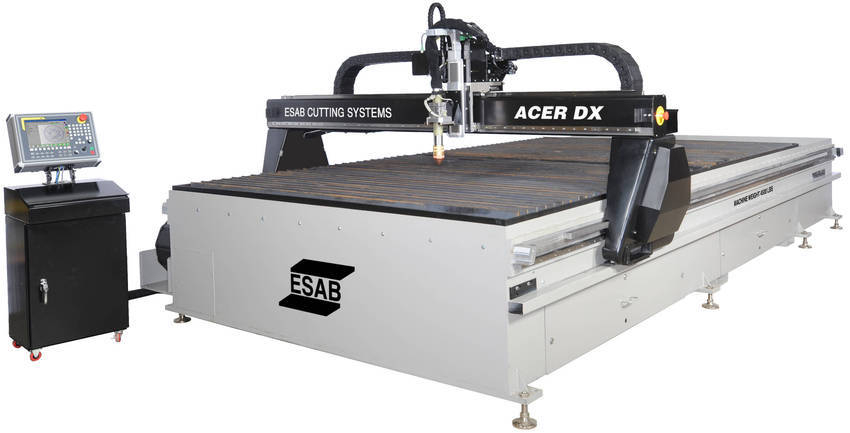

Apr 17, 2009 Acer DX employs m3 precision plasma system (200/360 A), which allows cutting and marking via same plasma torch. Capable of producing precision cuts and marks on materials up to 1.25 in. thick, m3 system also features gas control system that is fully automated by Vision 51 CNC. Machine, available with 5 x 10 or 6 x 12 ft working area, operates at speeds to 1,400 ipm and employs 3-axis precision gantry with rack-and-pinion drives.

Miller Electric Mfg. Co.    Appleton, WI 54912 1079
Mar 12, 2009 Spectrum 625 X-TREME 40 A plasma cutter measures 9 x 5.5 x 13.25 in., runs on 240 V input power, and cuts 5/8 mild steel at 12 ipm and ¼ in. steel at 60 ipm. Auto-Refire(TM) technology eliminates retriggering of torch when cutting fences or other expanded metal material, while electronically controlled air system automatically adjusts torch air pressure. X-CASE(TM) provides protection during transport and storage, and fits plasma unit, consumable box, eye protection, gloves and other accessories.

Miller Electric Mfg. Co.    Appleton, WI 54912 1079
Mar 06, 2009 Weighing only 52 lb, 60 A plasma cutter Spectrum® 875 measures 13.75 x 8.5 x 18 in., runs on 208/230 V single-phase power, and operates at full output when powered on 12,000 W generator. It features Auto-Refire(TM) technology, which eliminates retriggering when cutting fences, grates, and other expanded metal material, while Line Voltage Compensation provides steady cutting arc even when input power varies by ±10%. Unit suits construction, maintenance, and fabrication applications.

Thermal Dynamics Corp.    Chesterfield, MO 63017

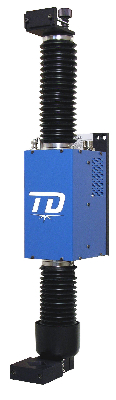

Mar 04, 2009 Equipped with high-contrast display, Model SC-3000 indicates torch height in distance and voltage. Built-in collision sensor retracts automatically, eliminating need for external sensor. With arc voltage range of 0-300 V, unit is ready for all applications from marking to cutting thick materials. To facilitate operation, operating parameters are limited to 2 drop-down menus on user interface.

Thermal Dynamics Corp.    Chesterfield, MO 63017
Feb 09, 2009 Available in 20 and 50 ft lengths, manual 1Torch utilizes 30 consumables that cover spectrum of manual plasma cutting/gouging in 20-120 A range. Features include O2-B and ATC connections and lead extensions that allow cutting at distances up to 100 ft from power supply. Designed as replacement torch, unit can be installed on most plasma systems, when combined with adapter.

Applied Materials, Inc.    Santa Clara, CA 95054
Sep 03, 2008 Optimized for throughput and MTBC ratings, Applied Producer® Etch system performs interconnect dielectric etch steps needed for production of Flash and DRAM memory chips. Reactor design promotes high-throughput, high-yield dielectric etch in DRAM and NAND Flash interconnect structures from 8X-4X nm technology nodes. System is suited for chip manufacturing applications such as low k deposition, strain engineering, litho-enabling films, thermal films, and high-temperature PECVD.

Hypertherm, Inc.    Hanover, NH 03755 0010
Aug 18, 2008 Equipped with built-in CNC interface and 50:1 voltage divider, single-gas Powermax45® is suited for mechanized cutting of duct work and other materials up to 3/8 in. Portable system features 45 A output current, 50% duty cycle, and quick disconnect torch that facilitates transitions between handheld and mechanized applications. Unlike oxyfuel systems, Powermax45 requires no pre-heating of work piece and no regulating of flammable gases.
