Tool & Cutter & Drill Point Grinders

Machinery & Machining Tools, Materials & Material Processing

Grinding Machine produces rotationally symmetrical tools.

October 31, 2014

Engineered for high-production volumes, Walter Helitronic Mini Automation Machine features robot loader that can handle up to 1,500 tools. Double-ended spindle accommodates up to 3 grinding wheels per end to process end mills, drills, step tools, woodworking tools, and profile tools from 0.04–0.63 in. dia. Max tool length is 7.3 in., with minimum diameter of 0.04 in. for production blanks and 0.12 in. for regrinding. Fanuc control and HELITRONIC Tool Studio combine to operate 5 CNC axes. Read More

Machinery & Machining Tools, Services

Mounted Points facilitate safe sheet metal fabrication.

November 14, 2013

Designed for edge-breaking stainless steel sheet metal, Rex-Cut® Mounted Points include non-woven A54GFX Cotton Fiber type which leaves smooth finish, and W222 Medium Rubber version that produces finer finish. Both are self-dressing to workpiece and permit safe handling and fabrication by workers. Products are available in 1 x 2 in. size as well as several other sizes. Read More

Machinery & Machining Tools

Mounted Points offer cool cutting.

April 23, 2013

Manufactured with Premium Pink fused aluminum oxide grain combined with Sol Gel ceramic grain, Premium Purple Mounted Points can be used on all ferrous and non-ferrous materials. Minimized loading and cool running lessen possibility of thermal damage during polishing. Made in USA, mounted points are available on 1/8 in. and 3 mm mandrels. Other sizes, shapes, and grits are available upon request. Read More

Portable Tools, Machinery & Machining Tools

Angle Grinders and Sanders come in 7 and 9 in. capacities.

December 10, 2012

Designed for aggressive use, CP3850 Series is equipped with 2.8 hp governed motor, with choice of 7,700 or 6,600 rpm free speed. Tools feature vibration damping multi-position side handle, auto balancer, and integrated silencer, as well as double action safety lever and 270° swivel guard to protect operator from debris. Weighing less than 6 lb, grinders and sanders are suitable for contouring, deburring, and cutting in metalworking, transformation, manufacturing, and energy industries. Read More

Machinery & Machining Tools

CNC Tool and Cutter Grinder targets volume producers.

July 6, 2012

Featuring 26 kW spindle and 2 wheel packs, Model MX5 is suitable for grinding HSS and carbide cutting tools up to 5/8 in. Grinding wheel and spindle are supported in machine by bi-symmetrical gantry, which evenly straddles tool center line, minimizing effects of thermal growth. Design allows grinding wheel to remain very close to C axis pivot point, which produces maximum profile accuracy for tools requiring substantial 5 axis movements, such as corner radius, or ballnose endmills. Read More

Machinery & Machining Tools

Quad-Axis CNC Drill Sharpener offers one-touch operation.

November 23, 2011

Able to sharpen 400+ drills in one day, XPS-16 uses 3 independent electronic sensors that automatically detect drill length and diameter, locate cutting edge, and calculate web thickness. Heavy-duty unit also hones carbide drill edges as part of automatic process. Equipped with touchscreen LCD panel, machine allows creation and storage of user-specific drill sharpening programs along with pre-installed ones. Bench-top sharpener processes diverse drill types with angles from 90° to 150°. Read More

Machinery & Machining Tools

Disc Eroding, Grinding and Polishing Machine finishes PCD-tipped tools.

August 6, 2010

Combining rotary erosion and fluting with polishing wheel, Model QXD 200 provides mirror-like finish in single machine setup. Machine features 6 programmable axes as well as 6-position tool changer, which allows for flexibility in electrodes and polishing wheel selections that can be utilized in unattended operation. Offline simulation creates 3D model that can be incorporated into other software packages for verification of end results on tool geometry. Read More

Machinery & Machining Tools

5-Axis CNC Tool Grinder produces/modifies rotary cutting tools.

August 4, 2010

Model 528XS GrindSmart series 5-axis grinder is suited for regrinding/modification grinding and manufacturing of rotary cutting tools. Machine includes PentaSmart software for endmills, drills, and step tools, as well as BurCalc software for bur production. Integration of robot is optional. Read More

Machinery & Machining Tools

6-Axis CNC Tool/Insert Grinder produces high-quality tools.

August 4, 2010

Model 628XS, GrindSmart series 6-axis grinder for manufacturing rotary cutting tools and inserts features rotary glass scale on tool rotation axis. Machine's software features interpolation capability and unit also optimizes surface finish on flute and ball relief. It is designed for producing endmills, drills, step drills, form tools, reamers, taps, and any derived variations, as well as surgical and orthopedic cutting tools, and is capable of insert periphery grinding. Read More

Machinery & Machining Tools

Abrasive Mounted Points provide smooth, controlled finishing.

August 3, 2010

Made from non-woven synthetic that is compressed, bonded, and impregnated with abrasives, Mebabrite(TM) mounted points are designed for light deburring, blending, and polishing. They feature medium/fine grits and soft/hard densities for smooth, chatter-free operation on precision machined and cast parts without changing their geometry. Points are available in over 150 industry standard A, B, and W shapes with 1/8 and ¼ in. shanks, in aluminum oxide and silicon carbide abrasives. Read More

Machinery & Machining Tools

CNC Grinding Machine grinds tools up to 5/8 in. dia.

August 3, 2010

Able to handle various batch sizes with minimal setup time, ANCA MX7 is designed to meet needs of tool production facilities. It allows for 10 sec tool change and 10 sec wheel change, and also enables off-line tool design and development using CIMulator3D software. Device's wheel changer stores 6 HSK 50 wheel packs to promote productivity and flexibility. Machine includes permanent magnet spindle for constant torque across rpm range as well as MLX loader for unmanned operation. Read More

Machinery & Machining Tools, Materials & Material Processing

Drill Grinding Machine handles point and split point jobs.

March 26, 2010

With point geometry and sizing under NC, PS52 offers 3 parallel operations with load/unload simultaneous to point and split grinding. System accommodates multiple part-program storage and can produce drills from 1/16-½ in. to max overall length of 6 ½ in. Production capabilities also extend to point included angles from 80° to 140°; Conventional Point, Helical Point, and Multi-facet point geometries; as well as DIN style A/C/B with split point. Read More

Machinery & Machining Tools

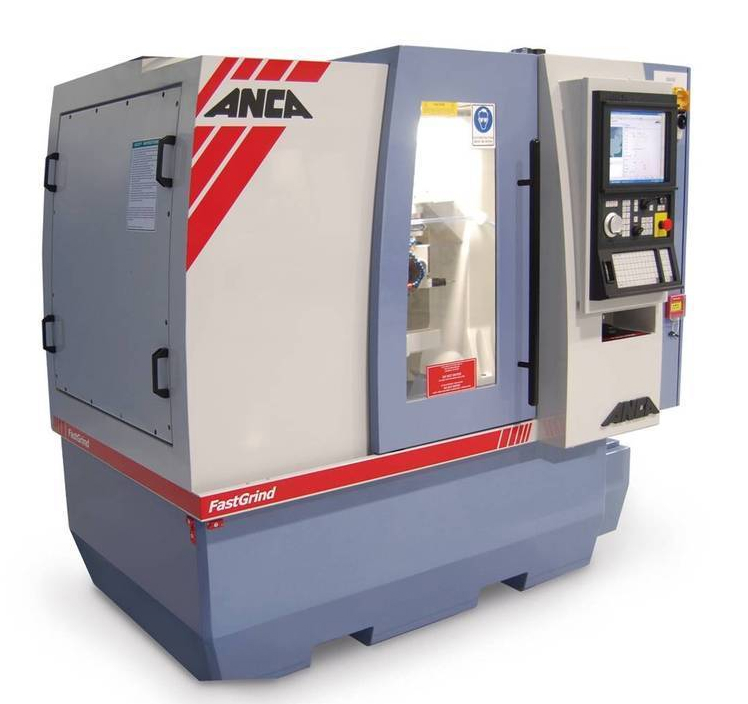

CNC Tool and Cutter Grinder resharpens tools at high speed.

November 10, 2009

ANCA FastGind CNC Tool and Cutter Grinder is designed for .35-12 mm dia tools and offers high positioning accuracies in all 5 mechanical axes. Linear axes are ball screw-driven and 2 rotary axes are direct-driven. Machine has double-ended HSK40 wheel spindle, mounted on single piece casting, with 8 in. maximum wheel diameter. Featuring part probing system and machine axis saddles made from single-piece casting, unit optionally includes iView software and camera with 300:1 magnification. Read More

Portable Tools, Machinery & Machining Tools

Angle Grinder features quick change wheel system.

April 22, 2009

Weighing just 6 lb, 6 in. W11-150 Quick compact class angle grinder suits cutting and grinding applications in metalworking and mechanical maintenance industries. Features included are 9.6 A motor, 1,100 W of power, 29.2 in.-lb of torque, and no-load speed of 9,000 rpm. Unit also comes with encapsulated on/off switch, carbon brush holders, double-lipped labyrinth sealed bearings, and dust-deflecting winding protection grid. Read More

Portable Tools, Machinery & Machining Tools

Cordless Cut-Off/Grinder features paddle switch design.

March 10, 2009

Built with 4-pole motor, 4½ in. M18 Model 2680-22 operates at speeds up to 9,000 rpm and includes L-shape intake vents to keep harmful debris from entering tool and damaging critical components. Grinder also features 3-position handle, tool-free adjustable guard, and Overload Protection to prevent damage in abusive situations. Milwaukee® 18V XC High Capacity LITHIUM-ION technology features DPM(TM) - Digital Power Management to provide maximum tool life and run-time. Read More

Machinery & Machining Tools

Angle Grinder features 12.2 A motor.

January 26, 2009

Weighing just 6.3 lb, WE14-150 Quick 6 in. suits heavy duty cutting and grinding applications in metal working and mechanical maintenance industries. It offers 1,400 W of power, 31 in.-lb of torque and no-load speed of 9,000 rpm. It comes with wheel guard, inner flange, and flange kit for mounting both type 1 and type 27 wheels. Other features included are encapsulated on/off switch, double-lipped labyrinth sealed bearings, and dust-deflecting winding protection grid. Read More

Machinery & Machining Tools

Grinder manufactures and reconditions cutting tools.

December 16, 2008

Engineered for structural and thermal stability, Model CTG-3 features 3-station HSK grinding wheel pack and part programming through NUMROTOplus software. Headstock is direct drive and all linear axes have glass scales. For dynamic stability, dedicated closed loop chiller controls heat build-up within grinding spindle and headstock. Standard 2D simulation allows cross-sectional visualization, while optional 3D virtual grinding simulation with machine collision detection eliminates setup time. Read More

Machinery & Machining Tools

Metal/Stone Cutting Angle Grinder weighs only 5.4 lb.

September 17, 2008

Suited for finishing welded seams, rough grinding for weld preparation, and sanding/cutting applications, Model W8-125 is 5 in. angle grinder that features 8.0 A motor with 800 W of power, 19.5 lb-in. of torque, and no-load speed of 10,000 rpm. Secure racket grip and dual grip zones ensure ergonomic handling, while anti-vibration side handle absorbs up to 60% of vibration. Unit offers safety features including tool-less guard adjustment, spindle lock, and safety slip clutch. Read More

Machinery & Machining Tools

Edge Prep Machine removes drill edge grinding defects.

September 16, 2008

Able to output 150 tools/hr, DXM-50-EZ incorporates CNC technology and eliminates variability/inconsistency in off-hand processing for drill diameters from 1/8-1 in. Edge prep sizes range from 0.0005-0.0025 in. and can be controlled to tolerance of 0.0002 in. To optimize drill performance and consistency, all defects and grind lines present on cutting edge are removed. By strengthening interface between tool and workpiece, variations in tool performance are eliminated. Read More

Machinery & Machining Tools

Cutter is suited for hard, soft, and fibrous materials.

August 4, 2008

Employed for coarse grinding of materials into particles of uniform sizes ranging from granules down to 20-30 mesh, Model SCC-15 Screen Classifying Cutter has 15 in. throat width and can be fitted with 30 parallelograms with 60 cutter inserts. Bed screen perforations range from 1/32 to 1½ in. in dia and up to 3 in. square, according to material characteristics and desired particle size. Shaft rotates at 30-3,600 rpm producing up to 500 cu ft/hr of sized product, depending on application. Read More
