DBBV Service Valve features 6,000 psi rating.

March 3, 2015

Operating mechanically, Double Block and Bleed Service Valve features secondary ball/sealing surface to retain pressure in event that first ball or sealing surface is damaged. Rotating base lets users adjust position of handles to either open or close valve by rotating valve itself into correct position. Weighing 56 lb and operating at temperatures up to 450°F, depending on stem and seal material selected, valve meets NACE MR0175 and NACE MR0103 requirements. Read More

Fluid & Gas Flow Equipment

Magnetically Driven Pump delivers leak-free operation.

March 2, 2015

Comprising sealless centrifugal pumps with ductile iron casing and Tefzel (ETFE) lining for optimal corrosion resistance, Finish Thompson ULTRAChem Series offers max flow rates up to 160 m³/hr and max differential heads to 67 m. Neodymium magnets drive impeller through carbon-filled PTFE-lined barrier for leak-free operation. Max working pressure is 300 psi, and Dri-Coat silicon carbide bearing/shaft option prevents catastrophic failure in event of short-term dry-running.
Read More

Mounting & Attaching Products, Fluid & Gas Flow Equipment

Sanitary Flanges include hose barbs.

February 25, 2015

Available in 0.5 in./0.75 in. mini and 1 in./1.5 in. standard sizes, Sanitary Flanges have oversized hose barb design that facilitates strong adhesion to biopharmaceutical tubing line, minimizing need for ties. Slight raise at port ensures proper capturing of gasket, while true bore design through entire connector ensures smooth transition from tubing to adapter, reducing turbulence. Flanges accommodate various sized tubing including ¼, 3/8, ½, and ¾ in. ID. Read More

Fluid & Gas Flow Equipment

In-Line Regulator Valve is designed for clean gas applications.

February 25, 2015

Weighing as little as 7 lb, Model BL1 can control inlet pressures up to 135 psig and is available with ½ and ¾ in. Tri-Clamp® body connections. All wetted, metal parts are 316L stainless steel and machined to meet SFV-4, while all soft goods meet FDA code of Regulations Title 21, Part 177 USP Class VI. Standard offerings include 316L stainless steel metal plug and standard knob mounted on adjusting screw that facilitates adjustment of set points. Read More

Fluid & Gas Flow Equipment

Wet-Prime Trash Pump incorporates Final Tier 4 engine.

February 23, 2015

Allowing for uninterrupted, continuous pumping, 6HT heavy-duty, self-priming trash pump employs Final Tier 4 Diesel Isuzu engine that meets EPA regulations and does not require diesel particulate filter (DPF) or selective catalytic reduction (SCR). Pump is constructed of heavy-duty cast iron and can self-prime and re-prime automatically. Capabilities include flow rates up to 1,430 gpm, heads to 104 ft, and handling of solids up to 3 in. Read More

Controls & Controllers, Fluid & Gas Flow Equipment

Vacuum Ejector offers 2 product options.

February 23, 2015

Based on energy-efficient COAX® technology, piCOMPACT® manifold-mounted and functional ejector system is available with M8 6-pin connection option. Threaded connection withstands pull force, making it suitable for moving and vibrating applications, such as robotics. Second option is air valve with cleanroom housing for rooms that have requirements such as ISO 14644. Virtually no air or particles will leak from unit if exhaust air is piped away. Read More

Fluid & Gas Flow Equipment, Chemical Processing & Waste Management, Services

Space-Optimized Combined Trap and AAV replaces P-traps.

February 20, 2015

Able to replace conventional P-traps while minimizing roof penetrations, Studor® Trap-Vent™ consists of combined trap and Air Admittance Valve (AAV) designed for use in bathroom lavatory installation venting up to 6 DFU. Available models include 1¼ and 1½ in. assemblies, both in white, that are suited for remodels, restorations, and floating sinks. Compact design offers flexibility where space may be limited. Read More

Electrical Equipment & Systems, Fluid & Gas Flow Equipment

Push-In Liquidtight Fittings simplify installation onto conduit.

February 18, 2015

Without requiring disassembly, Quick-Connect™ Liquidtight Fittings install onto liquidtight flexible metal conduit via 2-step process of pushing conduit into fitting and tightening gland nut. Push-in design, which accelerates installation, also helps protect electrical systems from liquid ingress, corrosion, and extreme temperatures. Captive sealing rings available from 3/8–1 in. in straight, 45° and 90° configurations. Installation method also helps reduce dropped/lost/damaged components. Read More

Fluid & Gas Flow Equipment

Pressure Reducing Regulator is designed for gaseous applications.

February 18, 2015

Offered in ½ and ¾ in. Tri-Clamp® body connections, PA1 has self-draining body design and trims that comply with ASME BPE 2012 SF-4. All wetted, metal parts are constructed of 316L stainless steel. Capable of withstanding inlet pressures up to 250 psig and outlet pressures up to 135 psig, regulator also has EPDM diaphragm and also comes with option of 316L stainless steel metal seat or USP Class VI PTFE soft seat. Standard knob mounted on adjusting screw facilitates adjustment of set points.
Read More

Electrical Equipment & Systems, Packaging Equipment, Fluid & Gas Flow Equipment

Peelable Heat Shrink aids medical catheter manufacturing.

February 17, 2015

Enabling medical catheter manufacturers method to increase yield, safety, and efficiency while reducing scrap, Class VI-approved FluoroPEELZ™ facilitates and accelerates removal of recovered heat shrink from outer shaft by requiring one linear tear. Optical clarity lets operators visually inspect construction during reflow process, and product produces smooth, void-free exterior finish once removed. Read More

Fluid & Gas Flow Equipment

Vertical Turbine Slurry Pump handles abrasive solids.

February 16, 2015

With patented bearing design, Floway® VTSP operates continuously in services with maximum solid content of 10% by weight and excursions of 20% by weight during temporary upset conditions. Pump features 416 SS or 17-4-PH metal shafting, hard-coated shaft in bearing area, and mechanical seal designed for slurry services. Offering 35,000 gpm capacity and pressure limit of 500 psi, pump is suited for mine dewatering, reclaim water, overflow water, seepage, wastewater feed, and thickener overflow. Read More

Fluid & Gas Flow Equipment

Ultra-Slim Heat Pipes use water as working fluid.

February 16, 2015

Available in copper or aluminum, Ultra-Slim Heat Pipes use water as working fluid, continually alternating between evaporation and condensation. Constant cycling of water is caused by high-capillary mesh wick inside, which allows for cooling capacities from 5–35 W. With minimum achievable thickness of 0.6 mm, bendable heat pipes are suitable for LED modules, tablet PCs, mobile phones, and other electronic devices that require cooling within extreme space limitations. Read More

Electrical Equipment & Systems, Fluid & Gas Flow Equipment

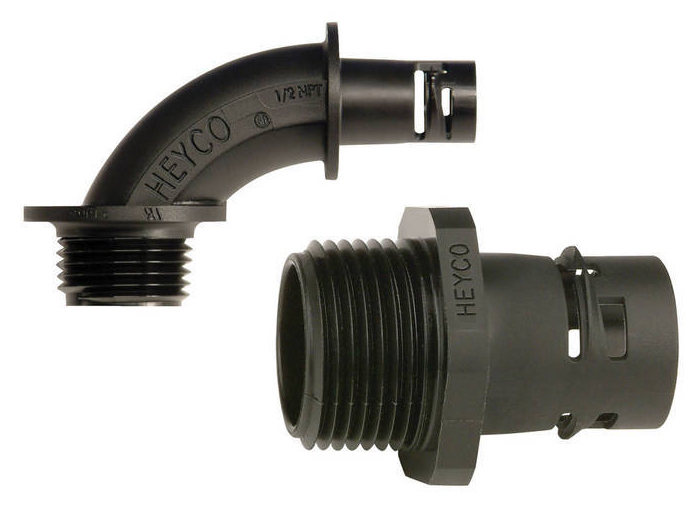

Flexible Conduit and Fittings feature liquid-tight design.

February 13, 2015

For crush and corrosion resistance, Heyco-Flex VI Liquid Tight Electrical Conduit features PVC-jacketed, continuously interlocked hot dipped zinc galvanized steel core. It is approved for both exposed and concealed locations, direct burial and in concrete. Heyco-Flex VI Liquid Tight Conduit Fittings, made of nickel-plated brass, come in straight-through and 90° sweep styles with NPT hubs. Corrosion-resistant fittings have insulated throat to prevent wire damage during installation. Read More

Mechanical Components & Assemblies, Fluid & Gas Flow Equipment, Material Handling & Storage

Lids with Opening Mechanism enable resealable beverage cans.

February 13, 2015

Equipped with XO closure system, any 200 mL to 1.0 L beverage may be re-closed multiple times for staggered content consumption. Resealed cans are pressure stable as well as entirely gas and liquid tight, ensuring beverages stay fresh and carbonated while free from ingress of outside elements and insects. Tamper-proof seal, which covers and secures opening strap, breaks when initially opened, and shelf life of filled beverage cans with XO ends is 12–18 months. Read More

Fluid & Gas Flow Equipment

Atomizing Spray Nozzles positively stop liquid flow.

February 12, 2015

Requiring no liquid pressure, No Drip Siphon Fed Atomizing Spray Nozzles can be used with gravity fed liquids or lift liquids from siphon height up to 36 in. Nozzles positively seal off flow when compressed air supply is shut off, eliminating possibility of drips. Suitable for liquids with viscosity up to 200 cp, nozzles are available in round and flat fan patterns, and are designed for non-pressurized liquid applications that do not require independent air and liquid control. Read More

Fluid & Gas Flow Equipment

Modular Microliter Pump suits medical and lab applications.

February 12, 2015

Designed to convey variety of fluids in parallel at rates of 5 µL to 3 mL/min, Modular Microliter Pump is available with 2–5 independent flow channels, guaranteeing that in each channel defined volume can be conveyed independently of pressure fluctuations in neighboring channels. Modular construction makes it possible to increase number of channels to max of 10. Fluid driving part of pump, which comes into contact with conveyed material, can be exchanged by coupling action. Read More

Fluid & Gas Flow Equipment

Solenoid Valves feature max pressure of 10,000 psi.

February 10, 2015

Constructed of stainless steel, SVH-111/SVH-112 Series is used to control flow of high pressure air, water, hydrogen, nitrogen, and other gases or light liquids. Direct acting solenoid valves are normally closed units that open when energized and close when de-energized. With temperature range of -350 to 400°F, NEMA 4 and 7 rated valves are also suitable for high pressure manufacturing as well as fuel cell and cryogenic applications. Read More

Fluid & Gas Flow Equipment

Replacement Nozzles enable accurate chip placement.

February 9, 2015

Available for Panasonic NPM machines with high-speed and multi-functional placement heads, Replacement Nozzles offer high-productivity alternative to OEM nozzles. Most standard nozzles are available in variety of materials, such as high strength plastic, tool steel, and ceramic. Nozzles utilize same style reflectors as OEM with special hard coating to provide waterproofing, prevent scratches, and maximize tool life. Read More

Fluid & Gas Flow Equipment

Piezo Driven Proportional Valve has micro-sized design.

February 2, 2015

Measuring 5.5 x 18.50 x 22.61 mm, ViVa® piezo actuator driven Micro Valve can offer proportional control with <1 mW power consumption and operates with flow rates from 7 Lpm at 140 psi. This micro-sized driving proportional flow valve, supporting 10–150 psi operation, can be used for controlling liquid hydrocarbons and has been tested for use with Air, Nitrogen, Helium, and other gasses. Read More

Fluid & Gas Flow Equipment

High-Pressure Jack Hose suits non-impulse applications.

January 29, 2015

Manufactured with abrasion-resistant PIRTEKTOR cover, Model PJK-04 features static working pressure of 10,000 psi. Due to its application and in line with industry standard, hose has 2:1 safety factor. Hose assembly is specifically for use in non-impulse applications such as hydraulic jacks used with petroleum-based fluids within temperature range of -40 to +120°F. Read More
