Therm-Omega-Tech, Inc.    Warminster, PA 18974
Oct 03, 2012 Designed for domestic hot water systems, Circuit Solver™ responds to changing water temperature and automatically changes flow to keep hot water temperatures evenly distributed. Valve minimizes heat-loss by reducing fluctuations in average temperature and flow rate, and lowers flow in hot water return lines, minimizing erosion-corrosion problems caused by excessive velocity. Constructed of all stainless steel, Circuit Solver complies with California AB1953 and meets NSF-61 standards.

ASCO Numatics    Florham Park, NJ 07932
Oct 03, 2012 Incorporating FasN™ universal connection system, 212 Series connects to any type of fitting, including NPT, quick-connect, and solvent-bond. Valves operate at pressures up to 150 psi and temperatures to 180°F. Engineered plastic body is built to achieve up to 1 million operating cycles. Tested and certified by NSF International, valves are suitable for reverse-osmosis and misting applications in food/beverage industry, restaurants, grocery stores, and boilers.

FIPA, Inc.    Atlanta, GA 30318
Oct 01, 2012 EKPP, EKP, and EMM Series integrate pressure regulation to reduce consumption of compressed air and energy without impacting cycle times. Equipped with automatic pressure regulation, they reduce compressed air usage by up to 50% per work piece, regardless of porosity. In addition, EMA and EKP-LSE Series can achieve savings of up to 97%, for airtight work pieces, via electronic air-saving function. All systems use 50.8 psi internally, reaching max vacuum level at feed pressure of 58 psi.

FasTest, Inc.    Roseville, MN 55113-1317
Oct 01, 2012 Designed to connect to CGA 540, 580, and 580 RPV gas valves, G-Series provides repeatable connections to pressure vessels in bulk filling facilities. Products connect by inserting collet onto tank valve and rotating bail roller handle over connector and tank valve, instantly locking connector in place. Smooth operating, one-hand bail roller actuation lets technician quickly connect/disconnect vessels. Respectively, CGA 540 and 580 models are compatible with external and internal threads.

Viking Corp., The    Hastings, MI 49058 9706
Oct 01, 2012 Accelerating and facilitating installation of sprinklers in suspended tile ceilings, cULus-Listed Model FSC-25U allows for lateral and vertical adjustment. Collar-style center bracket locates and secures sprinkler in required position within ceiling grid while also providing vertical adjustment to accommodate flush, semi-recessed, and concealed-style sprinklers. Complete assembly uses corrugated, stainless steel flexible hose (unbraided) and is rated to 200 psi max working pressure.

Edmund Optics    Barrington, NJ 08007
Sep 28, 2012 Suited for Raman spectroscopy or Life Sciences instrumentation, TECHSPEC® Raman Longpass Edge Filters create sharp transition between transmitted Raman signals and blocked laser wavelengths. Single-filter solution, used for reducing spectral noise in Stokes shift applications, have hard coated design. Providing deep blocking for maximum laser rejection, filters come in 325, 355, 473, 488, 514.5, 532, 632.8, 785, 980, and 1,064 nm cutoff-wavelengths in both 12.5 and 25 mm dia.

Asahi/America    Malden, MA 02148
Sep 27, 2012 Comprising Series 94 quarter-turn electric actuator with self-powered battery and open/close timer mounted to ball or butterfly valve, Quarter Master Remote Cycle™ is intended for remote areas where power sources are limited or unavailable. System features NEMA 4X engineered resin enclosure with stainless steel trim, on/off switch, adjustable open and interval times via dip switches, and manual override. Once fully charged, 12 Vdc rechargeable battery can cycle 1,100 times.

Metallurgical High Vacuum Corp.    Fennville, MI 49408
Sep 25, 2012 Available with capacities of 300 and 414 cfm, MHV Survivor™ vacuum pumps act as bolt-in replacements designed to handle water vapors encountered in existing primary and secondary freeze-drying operations. Oil-sealed rotary piston design lends to reliability, while standard gear-type oil pump provides positive lubrication of bearings and all other moving parts. Heavy-duty roller bearing design on main shaft promotes longevity and corrosion resistance.

Frommelt Products Corp.    Milwaukee, WI 53224 9520
Sep 24, 2012 Insulator Dock Seal with Light-blocking Header maximizes sealing efficiency and minimizes daylight leaks with light-blocking header that has rows of layered, horizontal pleats which conform around protrusions as trailer backs in to dock. All trailer and forklift contact surfaces are reinforced with Durathon™ fabric over flexible vinyl base fabric for wear resistance. Also, corners are reinforced with layers of Durathon fabric and flexible high-molecular weight polyethylene sheeting.

Parker Hannifin Corp., Parflex Div.    Ravenna, OH 44266 9137

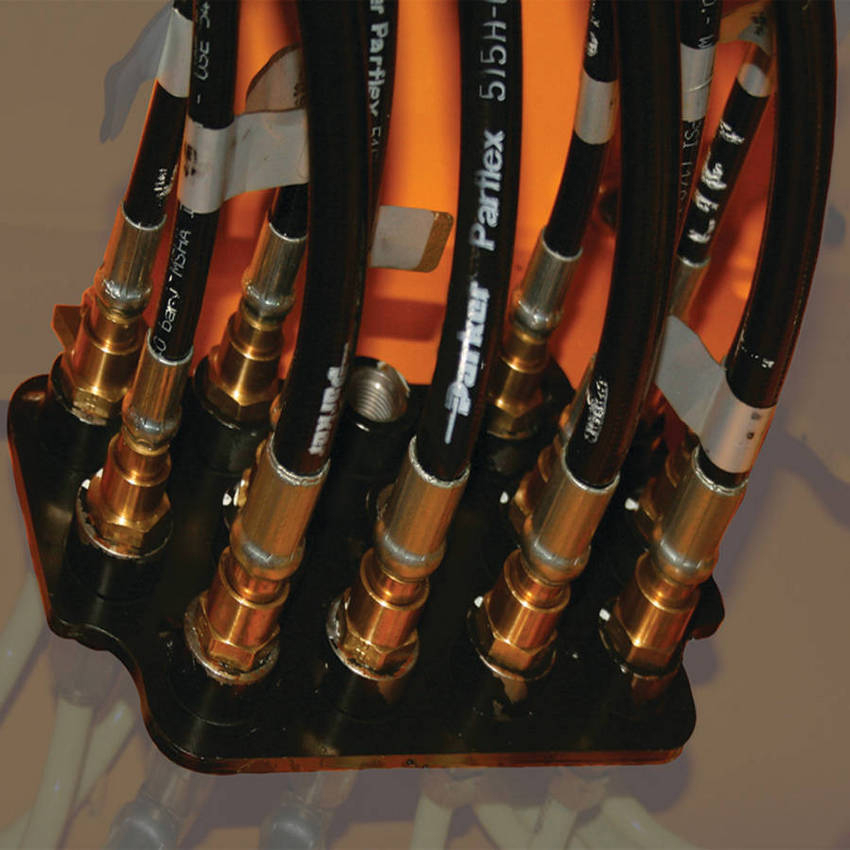

Sep 24, 2012 Intended for low-pressure hydraulic and pneumatic systems, Rapid Assembly Hose system consists of Parflex 515H hose and Parker RA (Rapid Assembly) quick connecting hose fittings and adapters. This quick to connect hose and fitting system improves assembly time as well as system weight. Parflex 515H hose is suited for routing through tight spaces while maintaining flexibility, and sizes range from 3/16–½ in. ID in single- or multi-line assembly.

Eaton Corp.    Pittsburgh, PA 15272
Sep 24, 2012 Sealed from dust and contaminants, medium voltage W-VACiMB Circuit Breakers protect transformers, capacitor banks, motors, busbar sections, and cable. Units feature modular design consisting of vacuum interrupter, encapsulated pole unit, and universal mechanism assembly. Housed in 18 x 18 x 18 in. package, 17.5 kV breakers serve both 50 and 60 Hz segments of underground mining industry, and meet/exceed requirements of E2 and M2 in accordance with IEC 62271-100.

Equilibar    Fletcher, NC 28732
Sep 24, 2012 Available in line sizes from 1/8–4 in. EVR Series Regulators are true pressure regulators, meaning vacuum level stays where user sets it regardless of swings in system flow rate. Vacuum, vacuum through positive pressure, and absolute pressure calibrations are available. Technology is scalable to larger sizes and higher flow rates should industrial demands require them.

Enerpac (Industrial Tools)    Milwaukee, WI 53201 3241
Sep 21, 2012 Allowing users to remotely jack and lift in mining applications, RTJ-Series features 10-ton capacity and can be operated in horizontal, angular, or vertical positions. Kit includes hydraulic jack, hydraulic high-flow hand pump, and shielded/polarized hoses. Inverted piston with oversized bearing surfaces withstands harsh conditions, while metal guards protect coupler from accidental damage during transport and positioning, and internal HP Safety Relief prevents overload mishaps.

EXAIR Corporation    Cincinnati, OH 45249-1621

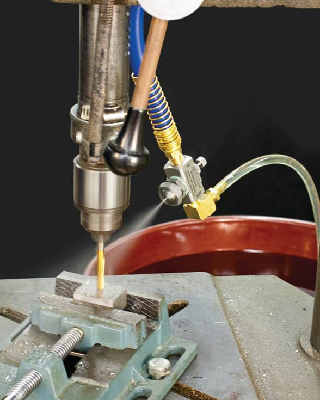

Sep 21, 2012 Featuring stainless steel construction for corrosion resistance, Siphon Fed Spray Nozzles atomize fluids in range of spray patterns. Units require no liquid pressure and can be used with gravity fed liquids or lift liquids from siphon height up to 36 in. With nozzles, users can coat, treat, and paint variety of products using compressed air and liquids with viscosity up to 200 cP. When used with water, nozzles offer efficient way to evenly cool hot items in automated processes.

Norgren    Littleton, CO 80120
Sep 21, 2012 Featuring modular design, VS Series enables expansion of single stations by up to 16 valves using plug-in PCB technology. Three sizes of plug-in sub-base valves are available with flows ranging from Cv = 0.52 up to 4.2. Manifolds come with 2 spool technologies: softseal spool for optimized flow rates, and glandless spool and sleeve, which delivers millions of cycles. Both can be incorporated in same manifold to meet application requirements.

Assured Automation    Clark, NJ 07066
Sep 21, 2012 Designed for pressure, temperature, flow, and level control, V Series features bodies of carbon or stainless steel with NPT, Socket Weld, Tri-Clamp, and 150 or 300 lb Flanged end connections. Sizes range from ½–8 in., and control signal options include 4–20 mA and 3–15 psi. Characterized to meet custom flow requirements, valves also feature rotary stem that makes series suited for throttling applications; throttling component is constructed from solid stainless steel ball.

LBP Manufacturing, Inc    Cicero, IL 60804
Sep 21, 2012 Compatible with Keurig® and other single-serve brewers, UpShot™ Solution is composed of 100% recyclable polypropylene with outer seal that can also be made with recyclable materials. Unit features proprietary mesh design that enables consumers to see and smell coffee or tea once fresh seal is opened. Designed to accommodate 8-12 g of coffee grinds, UpShot gives roasters ability to control the fill and achieve optimal coffee- to-water ratio.

Norgren    Littleton, CO 80120
Sep 21, 2012 Combining cylinder, pilot and control valves, position sensors, and speed regulators in single unit, Integrated Valve and Actuator Control eliminates tubing and remote valve islands typical of pneumatic operations. Cleanline version, with switches and valve inside smooth casing, features IP67 rating, making it suitable for operations such as food or beverage handling where frequent washdowns are required. IVAC requires 1 electrical connection and 1 pneumatic connection for operation.

Salina Vortex Corp.    Salina, KS 67401
Sep 19, 2012 Offered in 4–16 in. diameters, Model HDPV2 is suitable for handling powders, pellets, and granulars. Wide bonnet eliminates dead pocket where material could build up, while long body frame allows inspection and replacement of seals and parts while gate remains in service. Valve also includes replaceable nylon insert on rising clevis, shimming system that compensates for seal wear, and reusable precut gaskets. Cast into frame, air cylinder mount minimizes area where potential leakage could occur.

Parker Hannifin Plc    Barnstaple Devon EX31 1NP  United Kingdom
Sep 18, 2012 Electronic controls for P1/PD series pumps, available with or without programmed electronic control unit (ECU), let users optimize hydraulic performance and efficiency in mobile and industrial open circuit applications. Basic functions include fan control, proportional displacement and pressure controls, and overcenter capability. Designs without ECU are available with either displacement default position and with or without displacement sensor or hydro-mechanical pressure limiter.
