Lian Li    Keelung   Taiwan
May 01, 2013 Model PC-Q27 Mini-ITX chassis measures 7.8 x 11.8 x 9.4 in. and supports graphics cards up to 7.6 in. Brushed aluminum unit accommodates up to three 3.5 in. hard drives and features I/O panel with 2 USB 3.0 ports. Measuring 8.9 x 12.0 x 13.5 in., model PC-Q28 holds graphics cards up to 11.4 in. long and up to 7 hard drives, while drive cages are removable. Product has front fan with dust filter and top fan to remove hot air. Both units include front and rear feet stands to sit up off ground.

Logic Supply    South Burlington, VT 05403
Apr 25, 2013 Constructed of nickel-plated steel that protects against EMI/RFI, mini-ITX LGX MK100 1U Rackmount Case comes equipped with dual MagLev fans that provide airflow across high-power Core i solutions. LGX fan mufflers ensure quiet operation and optimize airflow, while minimizing strain on fans. Featuring modular design that allows for customization, case offers variety of faceplate options, including four 2.5 in. drive hot-swap bays, LCD panel with multi-function buttons, and slimline optical drive.

One Stop Systems    Escondido, CA 92029
Apr 12, 2013 Supporting single PCIe x8 Gen3 short card, nanoCUBE allows users to add greater functionality to laptop or workstation using IO card that can be disconnected at later time. Lightweight appliance, connected to computer through Thunderbolt or PCIe expansion, provides quiet operation, enabling use with laptops in noise sensitive field locations. In addition, by adding video editing card, nanoCUBE can create portable video editing appliance.

IKey Ltd.    Austin, TX 78754
Feb 13, 2013 Submersible and fully sealed to NEMA 4X/IP65 standards while closed, iKey® StreetCase™ turns iPad into rugged laptop. Unit houses sealed Bluetooth®-compatible QWERTY keyboard with red LED backlighting that automatically shuts off after 10 sec of inactivity to preserve battery life. Made from ABS polycarbonate, case handles extreme temperatures from -40 to +158°F, and has customized internal rails that lock in place to support ergonomic viewing angle of 115°.

Pixus Technologies    Waterloo, ON N2V 1C5
Jan 14, 2013 Available in 7U and 9U versions, which accommodate 6U pluggable boards, Recessed Enclosure Series allows subrack and boards to be completely protected inside enclosure frame, preventing damage to modules, limiting exposure to dust, and minimizing susceptibility to EMI/RFI. Versions for 3U pluggable boards in 4U overall height are also available. Front-to-rear or bottom-to-top cooling options are standard in 7U to 9U sizes, and wide range of AC or DC power supplies are available.

Pixus Technologies    Waterloo, ON N2V 1C5
Dec 03, 2012 Offered as 19 in. rackmount or desktop enclosure, High-CFM 1U SlimBox holds 2-slot 0.8 in. pitch CompactPCI, VME/VME64x, OpenVPX, or custom backplane mounted horizontally. Enclosure features push-pull cooling configuration with 7 fans for over 115 cfm of airflow. Fans come in separately removable fan trays to facilitate replacement/swapping. Depending on chassis size, SlimBox line offers range of power supply options in pluggable, fixed, N+1, or redundant power configurations.

Pixus Technologies    Waterloo, ON N2V 1C5
Oct 12, 2012 Available in both fan convection and conduction-cooled versions, ATR Series includes ½ and ¾ sizes in long and short ARINC formats. Backplanes are available off-the-shelf or customized in CompactPCI, MicroTCA, OpenVPX, and VME/64x architectures. Depending on needs of application, ½ ATR short enclosure features dip-brazed or screwed and glued options.

National Instruments Corp.    Austin, TX 78759-3504
Sep 20, 2012 Featuring PCI Express 2.0 x 8 links to every slot, 18-slot 3U Model NI PXIe-1085 offers bandwidth of 4 GBps/slot and 12 GBps total system bandwidth. All-hybrid-slot backplane accommodates both PXI and PXI Express modules. Remote system health monitoring optimizes system manageability, while hot-swappable fans and tool-less, replaceable power supply optimize system availability in high-performance applications.

Extreme Engineering Solutions (X-ES)    Middleton, WI 53562
Aug 13, 2012 Measuring 16.5 x 5.5 x 11.5 in., XPand1201 supports up to eight 3U conduction-cooled CompactPCI modules and 2 optional power supply modules. System also supports up to 482 W of total simultaneous power delivery and thermal dissipation of up to 60 W per slot. Accommodating Rear Transition Modules, platform provides I/O flexibility and ability to rapidly prototype deployable systems.

Pixus Technologies    Waterloo, ON N2V 1C5
Aug 10, 2012 Offering up to 4 slots, VME64x SlimBox enclosure is 2U high, 19 in. wide, and 300 mm deep. Backplane comes with active or passive termination and provisions for one or 2 pluggable 47-pin PSU connectors. Hot swappable AC or DC power supplies to 250 W are standard, and other power options are available. Along with optional rear I/O, enclosure offers integrated ESD and EMC protection. Header is provided for system management options with SYSReset, SysFail, ACFail_PS, and Ground signals.

Equipto Electronics Corporation    Aurora, IL 60506
Jul 23, 2012 Able to handle strenuous shock and vibration, N6 heavy-duty enclosure protects electronic equipment in military shipboard applications and other indoor/outdoor situations where sensitive equipment must be protected from hostile environments. Heavy-duty cabinets allow safe placement of systems into any operating environment. Constructed of 14 gauge steel with epoxy painted surface, fully EMI/RFI shielded enclosure can be built to match specific sizing requirements.

Rokform    Santa Ana, CA 92705
Jul 16, 2012 Made from high-impact polycarbonate, RokLock v3 allows users to mount iPad or iPad 2 just about anywhere, including car, boat, kitchen cabinet, wall, or tool box. Case includes RokGard(TM) screen protector and anti-slip hex grip inserts. In addition to standard mounts, variety of accessory mounts is available. Sold separately, Maglok magnetic mount kit fits behind anti-slip hex grips and uses 6 rare earth magnets to mount iPad to any magnetic surface.

Logic Supply    South Burlington, VT 05403
May 31, 2012 Engineered around Intel DN2800MT Marshalltown Thin Mini-ITX motherboard, LGX ML200 features extruded aluminum top and height of less than 1.5 in. Heat pipe provides cooling while protecting internal system from dust and grime. In addition to standard back panel I/O of DN2800MT, enclosure has expansion options for 2 wireless antennas, as well as space for 4-pin power connector for automotive applications. Front panel offers 2 additional USB ports, COM port punch-outs, and power button.

National Instruments Corp.    Austin, TX 78759-3504
May 10, 2012 NI PXIe-1066DC 18 slot chassis features redundant, hot-swappable DC power supplies and fans. Front-accessible power supply and fan tray provides flexibility in position-restrictive applications, and Ethernet port gives engineers remote in-band chassis health monitoring capabilities for system management. These features improve system-level mean time before failure and mean time to repair of systems in measurement and control applications.

Rittal Corporation    Urbana, OH 43078
Dec 14, 2011 Suitable for high-density IT environments, Server Enclosures are designed to provide efficient cable management and heat dissipation. Split-rear doors provide security and allow installation of a variety of handle options, such as those with built-in combination lock. Eight holes are available in roof for cable routing, while L-shaped hinge system allows for tool-less installation and maintenance. Various other accessories are avaiable for cable and airflow management.

Elma Electronic Inc.    Fremont, CA 94538
Nov 11, 2011 Designed to ensure interoperability among 3U VPX boards, 3U Model VPX-300 is built around Virtex-6 FPGA-based front end processor card and uses 7-slot backplane profile per VITA 65 BKP3-CEN07-15.2.3-n. Backplane profile provides 2 clusters through data and control plane switch, handling Gigabit Ethernet and PCIe links, respectively. Clusters are designated Front End, which contains processor board and FPGA elements, and Back End, which contains another processor board, graphics, and GPGPU element.

National Instruments Corp.    Austin, TX 78759-3504
May 06, 2011 Programmable with LabVIEW graphical design tools, Models cRIO-9075 and cRIO-9076 combine 400 MHz Freescale real-time processor and 4-slot chassis with reconfigurable Xilinx Spartan-6 FPGA for custom timing, control, and signal processing. Model cRIO-9075 features 128 MB DRAM and 256 MB nonvolatile storage, while Model cRIO-9076 offers 256 MB DRAM and 512 MB nonvolatile storage. Systems are suited for embedded control and monitoring applications in energy, medical, and robotics industries.

National Instruments Corp.    Austin, TX 78759-3504
Dec 15, 2010 Suited for automated test and control applications, 9-slot PXIe-1078 and 4-slot PXIe-1071 chassis operate over 0 to +50°C range and respectively offer 1 and 3 GBps total system bandwidth. PXIe-1078 accepts up to 4-slot wide embedded controller in one slot and supports up to 8 peripheral PXI Express slots with 5 slots compatible with PXI Express and PXI modules. PXIe-1071 accepts up to 4-slot wide controller in one slot, with 3 slots available for PXI Express or PXI modules.

Fischer Elektronik GmbH und Co. KG    Lüdenscheid   Germany

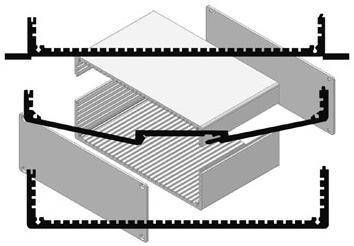

Sep 08, 2010 Combination cases manufactured with profiled aluminum can be combined with one another as well as with modules of other profiles to form tube. Front panel is fastened using screw and guide slots integrated in profile allow insertion of 160 mm Euro cards. Versions with EMC and IP protection incorporate flat seals between cover plates and case and by cord packing between profile halves.

CaseCruzer    Montclair, CA 91763
Aug 18, 2010 Intended for professional photographers, ATA-approved PSC200 includes customized polyethylene foam cut-out in lid for 15 and 17 in. Apple Mac Book laptops, as well as 11-compartment black padded divider system that can store cameras, lenses, and accessories. Exterior is injection-molded with ultra high-strength polypropylene copolymer resin. Measuring 21.75 x 13.75 x 8.99 in., IP67-rated waterproof case is dust tight, submersible, and resistant to corrosion and severe impact.
