Wolfson Microelectronics plc    Edinburgh EH11 2QB  United Kingdom
Aug 12, 2009 Housed in 5 x 5 x 0.9 mm QFN package, Model WM8961 features integrated charge pump, which provides ground-referenced output when driving headphone loads. Class W amplifier, with adaptive dual drive charge pump and DC servo circuit architecture, enables headphone amplifier to deliver up to 30 mW into 16 W load at 1% THD=N. Stereo filter-less class D speaker driver provides 1 W/channel into 8W loads at less than 1% THD+N with 5 V supply.

Maxim Integrated Products    Sunnyvale, CA 94086
Aug 10, 2009 Built around 54 MHz, 10-bit ADC, Model MAX9526 provides 4x oversampling while consuming 200 mW during normal operation and 100 µW in shutdown mode. Supply voltage range of 1.7-3.5 on digital I/O eliminates need for external level shifters when interfacing with video processor. Power-over-Ethernet allows use of existing Cat-5 wiring for both data transmission and power. Designed to power up in fully operational mode, unit automatically configures itself to decode NTSC or PAL input standard.

ADDER CORPORATION    Newburyport, MA 01950
Aug 05, 2009 Deployed alongside DVI, VGA, Display port, or any chosen video standard, CCS4USB incorporates USB True Emulation technology and can connect to any USB interface (HID) device from graphics tablets and joysticks to touch screens. Switch enables Keyboard and Mouse console to work on one computer whilst USB peripherals are connected to another. Working with RC4 remote control, unit can be hidden in cable tray or under desk, eliminating cable clutter.

Starrett, L.S., Co., The    Athol, MA 01331 1915

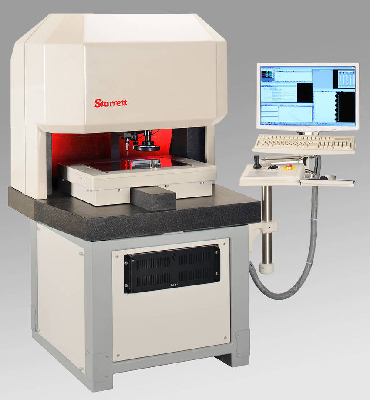

Jul 30, 2009 With 12-50 in. of X-Y travel and 8 in. of Z travel, Large-Format Multi-Sensor Video Measurement System models LF303/LF463/LF713/LF963/LF1273 offer more than 25 ips travel and accuracy to more than 157.5 µin. to verify critical dimensions on complex, multi-featured parts. Each model is available with vision, contact probe, and laser scanning attachments and employs transports driven by no-maintenance, balanced linear motors close-looped to precision scales in all 3 axes.

Texas Instruments, Inc. (TI)    Dallas, TX 75243-4136
Jul 27, 2009 Featuring 6th order Butterworth fixed filter for HD and SD video, Model THS7365 includes bypass mode, which provides up to 250 MHz bandwidth to support full HD 1080p60 or UWXGA video. Total supply current is 21.6 mA at 5 V and 20.7 mA at 3.3 V. Equipped with 3rd order Butterworth fixed filter for EDTV, Model THS7319 features low quiescent current of 1.1 mA/channel and 0.15 µA in power down mode. Both operate from 2.5-5.5 V single supply voltage.

Atlona Technologies    San Jose, CA 95131
Jul 24, 2009 UL/CE approved, model AT-3GSDI20SR transfers high definition video over multi-mode, optical type, fiber optic cables without any signal loss. It can send 3G SDI signals, and allows users to transfer 1080P HDSDI signal at 3Gb/s, supporting single channel SMPTE-424M 3G HD-SDI, SMPTE-292M HD, or SMPTE-259M serial digital video signal. Supporting wide range of video formats including SDI, DVB-ASI, HD-SDI, and 3G-SDI, extenders are ideal for medical imaging applications.

Wolfson Microelectronics plc    Edinburgh EH11 2QB  United Kingdom
Jul 21, 2009 Featuring HexCore(TM) digital baseband interface, Model WM8994 manages, converts, and processes diverse audio sources, including voice, speaker, microphone, music, and headphone signals. Unit can transform capability of portable multimedia devices, enabling music sharing and ability to use voice control with noise-reduction algorithms in in-car environments. Housed in 4.51 x 4.02 x 0.7 mm package, device includes sample rate converter and 4 digital microphone channels.

ADDER CORPORATION    Newburyport, MA 01950
Jul 21, 2009 As 4-port, professional-grade keyboard, video, mouse, and audio (KVMA) switch, AdderView PRO model AV4PRO-DVI enables users to share one high resolution (up to WQXGA) screen and USB peripherals between multiple computers. USB True Emulation technology fully supports all extra keys and functions of HID devices, while flexible independent switching mode lets user select and use different elements of functionality from each connected computer. Switch also supports Dual Link DVI and digital audio.

DVEO division of Computer Modules, Inc    San Diego, CA 92127

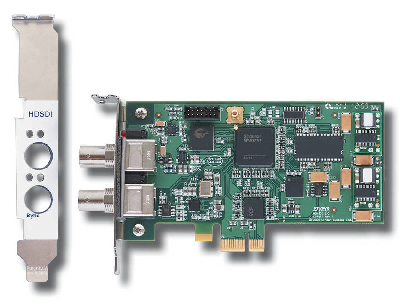

Jul 10, 2009 Suited for video servers and workstations, HD-SDI Master(TM) I or O PCIe LP is a single-channel HD/SD-SDI card that converts from input to output card and vice versa. Unit receives or transmits uncompressed HD/SD-SDI at bit rate up to 1.485 Gbps. Input features include automatic standards detection between 720-1,080, automatic cable equalization, and input monitoring of CRC errors. Output mode features tri-level sync input for transmit frame and rate synchronization.

Intellian Technologies USA, Inc.    Irvine, CA 92618

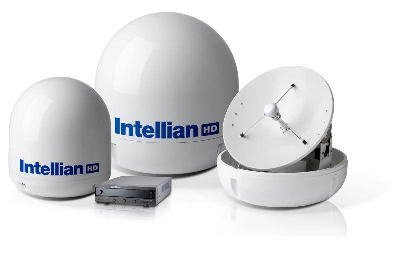

Jul 09, 2009 Able to receive signals from all DIRECTV satellites, d-Series single-dome antennas are suitable for small boats through large yachts, and can be installed on Bimini/buggy top frames or small hard/arch tops. Dual-band units incorporate wide range search algorithm to search, find, and hold satellite signals, and dynamic beam tilting technology to ensure clear, interruption-free program viewing. Featuring IPx6 rating, antennas operate in ±25° rolls and ±15° pitches at 45°/sec.

DVEO division of Computer Modules, Inc    San Diego, CA 92127

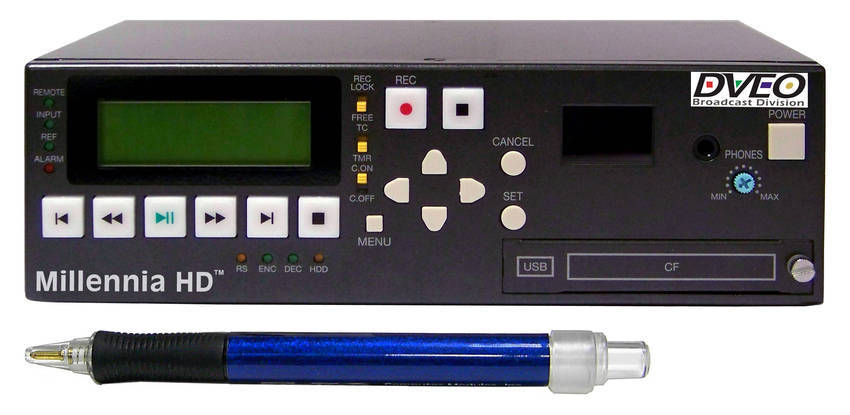

Jul 09, 2009 Available with both removable 120 GB hard drive and CF card storage, Millennia HD is real time, hardware based, H.264/AVC recorder in 8 x 6 x 3 in. system that records up to 11 hr of HD video at 20 Mbps, and up to 30 hr at lower bit rates. It encodes HD-SDI to H.264 and records it onto removable HDD or flash disk, and sends out H.264 signal in DVB-ASI. Unit also decodes stored HDD recordings and send them out as HD-SDI signal. Product operates on 12 or 120/240 V.

BVM Ltd    Southampton Hampsh SO30 0GH  United Kingdom

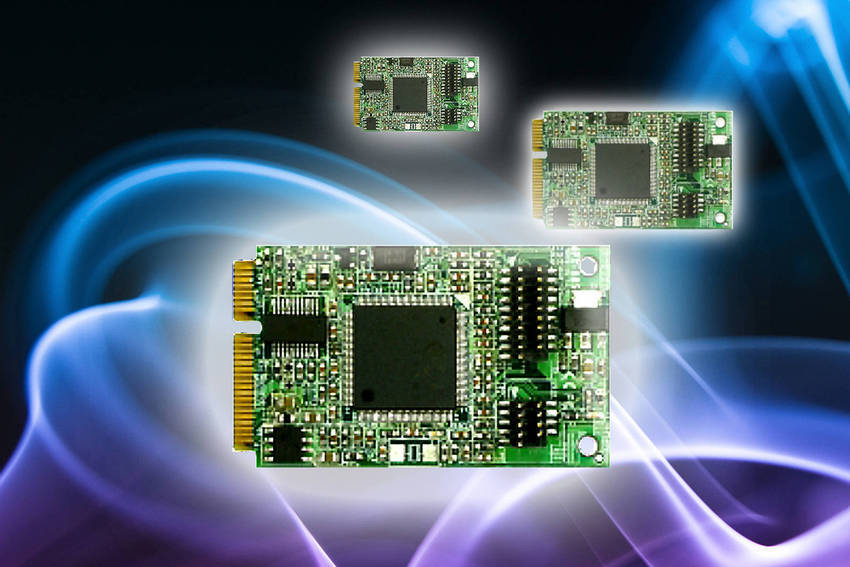

Jul 09, 2009 Mini PCI Express color frame grabber card, MPX-885 operates at up to 30 frames/s and supports 1-8 composite, 1-4 S-Video or composite with 2 YPbPr inputs. Based on CX23885 chipset, unit supports NTSC, PAL and SECAM video formats. Color and monochrome video are supported with full end-to-end 10-bit video data path, stereo or mono selectable audio path is 16 bit throughout. Card offers 2 x Giga LAN, DVI interface, 24-bit dual channel LVDS, 802.11 b/g/n wireless LAN and 4 x RS232 ports.

Vision Engineering Inc.    New Milford, CT 06776
Jul 09, 2009 Falcon 3-axis non-contact video measuring system employs high resolution indexed zoom optics with up to 100x magnification to provide enhanced component edge definition. Indexed camera iris control is used to reduce depth of field, promoting accuracy and repeatability of Z-axis results. Other features include touchscreen color display, controllable quadrant LED illumination, and precision stages with measurement capacity of up to 150 x 150 x 115 mm with NLEC calibration as standard.

Atlona Technologies    San Jose, CA 95131
Jul 09, 2009 Available with support for SDI and HD-SDI standards, 1 x 4 splitter AT-SDI-14, 1 x 4 splitter with re-clocking AT-SD-14RC, 1 x 6 splitter AT-SDI-16, and 1 x 6 splitter with re-clocking AT-SDI-16RC take single input and distribute signal perfectly to 4 or 6 identical outputs. Re-Clocking technology helps buffer and cascade long distance transmissions to send signal over 1,000 ft with resolutions up to 1,080p and full bandwidth up to 1.48 Gbps. Models also support audio.

K-Tek    Prairieville, LA 70769
Jul 06, 2009 Enabling transmitting of data between process sensors/DCS or SCADA systems, DX80 Wireless Transmitter and Receiver includes wireless transmitter node accepting up to 2 analog and 2 discrete switch inputs. Including wireless receiver gateway that accepts up to 55 nodes, system has embedded site survey tool which analyzes strength of radio signal between gateway and specified node. Housed in IEC IP67, NEMA 6 rated enclosure, product offers line of sight range of 3 miles.

Seco-Larm    Irvine, CA 92606-5012

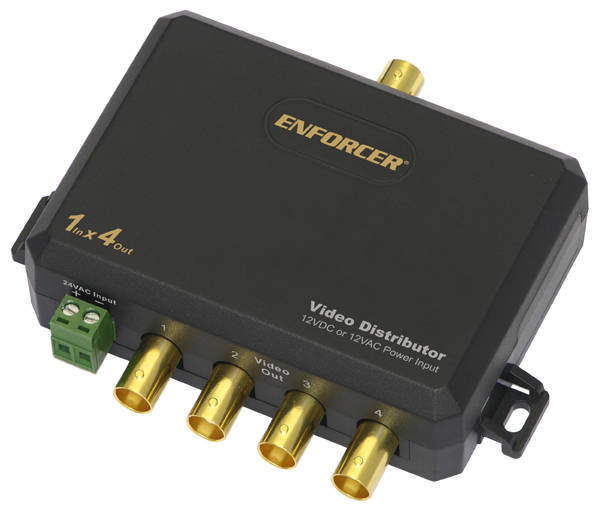

Jun 29, 2009 Suited for distributing video signals to multiple locations, ENFORCER VA-1000 Series are compatible with both color and black and white signals and can be installed at monitor or DVR side of cable run. VA-1102B-WQ 1-in 2-out unit features power pass-through circuit, allowing for excess current and voltage not used by included 12 Vdc power adapter to be used to power other nearby 12 Vdc devices. Dual voltage, 12/24 Vac/dc unit VA-1104B-WQ has 1-in 4-out configuration.

ComNet    Danbury, CT 06810
Jun 26, 2009 Digital fiber optic video transmitters and receivers with bi-directional data include FVTFVR1010SHR single channel with data series, FVT/FVR4014SHR with 4 video and data channels, and FVT/FVR8018SHR with 8 video and data channels. In event of broken fiber connection, video and data transmission is seamlessly re-routed when system is configured in ring topology. Bi-directional data transmission allows for camera PTZ function to be controlled from any monitoring location.

Hewlett Packard    Houston, TX 77269-2000

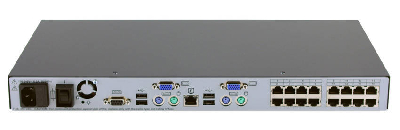

Jun 25, 2009 Starting at 8 ports, HP Server Console Switch G2 is scalable to support up to 256 servers. Device integrates KVM and serial devices into single management console for all servers including blades, network devices, and infrastructure products. Requiring no software to be installed on servers, unit provides true KVM solution for local system management. Using CAT5 UTP cables between switch and server facilitates cable routing and allows field termination of custom cable lengths.

Comba Telecom Systems Holdings Ltd    Shatin   Hong Kong (prc)
Jun 25, 2009 Designed for both indoor and outdoor environments, RX Series features 16 channels for GSM, 3 channels for WCDMA, and feedback cancellation up to 25 dB. Units support GSM 850, 900, 1,800, and 1,900 MHz as well as WCDMA 850 and 2,100 MHz. By converting RF signals into digital baseband, repeaters support Uplink Noise Control and Antenna Feedback Stabilization to minimize interference.

Circuit Design, Inc.    Nagano 399-8303  Japan
Jun 23, 2009 Programmed with 4 channels, transmitter Model CDP-TX-05M-R and receiver Model CDP-RX-05M-R feature narrowband FM 25 kHz channel spacing and operating temperature of -20 to +65°C. Using TCXO as reference oscillator circuit of radio component ensures frequency stability. With output of 10 mW authorized for narrow band FM and double superheterodyne receivers with receive sensitivity in European harmonized ISM band, communication range of 600 m line-of-sight is possible.
