Budzar Industries, Inc.
Willoughby, OH 44094
Apr 14, 2009 Featuring lockable casters, Sanitary Steam Sampling Cart can be moved within laboratory or pharmaceutical environment. Air-cooled water chiller, matched with heat exchanger, ensures consistent steam cooling, while Cooling Water Storage tank and process pump maintain steady cooling water temperatures under variable loads. Utilizing 110 ac power, cart incorporates PLC controller, which displays temperature, humidity, pressure, I/O alarms, level switches, and pressure switches.

Dynalab Corp.
Rochester, NY 14623
Jan 29, 2009 Manufactured from chemical-resistant HDPE, sampling devices suit corrosive environments and hard-to-reach places. Included 100 or 500 ml bottle screws into end of handle and is filled via 4 ports, 2 that allow liquid to enter and 2 that allow air to escape. Suited for industrial and environmental applications, all rod ODs are ¼ in. Drum Samplers are offered with 3 ft handles and 100 or 500 mL capacities, while Liquid Samplers include 6 or 8 ft handle models and same capacity options.

Tiger Optics, L.L.C.
Warrington, PA 18976-2426
Jul 30, 2008 Employing Continuous Wave Cavity Ring-Down Spectroscopy (CW-CRDS) technology, Tiger-i(TM) monitors cleanroom ambient air for gas phase airborne molecular contaminants that compromise manufacturing process quality and yield. It offers immediate, calibration-free analysis, measuring parts per trillion levels of trace hydrofluoride (HF) and hydrochloride (HCl) gases. Built-in reference cell and automated tune function provide 99.9% uptime without calibration, consumables, or maintenance.

Mine Safety Appliances Co.
Pittsburgh, PA 15230
Oct 31, 2007 Using common set of analyzers for up to 32 locations, MultiGard System detects CO, NO2, O2, and refrigerant gases and delivers sample to as many as 4 sensors or analyzers. Fixed system, configured via front touch-screen panel display, directly connects to Allen-Bradley's Ethernet or Data Highway Plus(TM) networks. Time sharing of central analyzers minimizes installation, operational, and maintenance expenses by eliminating multiple systems.

Advanced Instruments, Inc.
Norwood, MA 02062
Oct 10, 2007 Designed to automate laboratory work and reduce time for cell culture process optimization, Multi-Sample 20G Osmometer incorporates 8 computer controlled osmometers and robotic sample handling system, all enclosed in safety cabinet. Features include accurate osmolality measurement in clinical, industrial, and research settings, random-access, data export, fully programmable system controls, LIMS user interface, and barcode reader to provide additional input options.

Perma Pure Inc.
Toms River, NJ 08754
Jun 28, 2006 Suited for continuous emissions monitoring, GASS(TM)-2040 prepares gas samples for analysis. It uses Nafion® technology to remove acid mists, coalescent liquids, water, and particulates without altering concentrations of analyte gases. Unit, which features NEMA-4x stainless steel enclosure and integral stack mounting capability, connects directly to probe and dries sample completely before transporting it to ground. Drying is continuous, self-regenerating process.

Perma Pure Inc.
Toms River, NJ 08754
Mar 10, 2006 Housed in NEMA 4X rated enclosure, GASS(TM)-2040 prepares gas samples for analysis, removing acid mists, coalescable liquids, water, and particulates without altering concentrations of analyte gases such as CO, CO2, HCl, NOX, O2 and SO2. It processes samples containing 50% water at rates of up to 25 L/min, removing particulates as small as 1 µm, and reducing water content to dew point of -25°C. Heated coalescing filter with automatic drain removes acid mists before drying.

Swagelok Company
Solon, OH 44139-3492
Dec 01, 2005 Modular Swagelok® SSV series delivers representative sample from multiple sample streams to one analyzer. This ANSI/ISA 76.00.02-compatible stream selector system controls each stream by double-block and bleed (DBB) module, which eliminates cross contamination and maintains sample integrity. DBB module also performs actuation functions. To provide consistent outlet flow, system features integrated flow loop that also streamlines sampling and purging.

Retsch, Inc.
Newtown, PA 18940
Aug 18, 2005 Rotary Tube Divider, Model PK 1000, extracts 1 or more samples from granular or powdered substances with feed size up to 10 mm. Introduced to divider through vibratory feeder, product passes into cone where tube rotates at constant speed of 50 rpm. With each rotation, portion of sample is deposited through slot into sample collector. Dividing ratio and volume of extracted sample are determined by width of slot, which can be adjusted from 0-73 mm.

Perma Pure Inc.
Toms River, NJ 08754
Jul 22, 2004 Designed to prepare wet, hot, and dirty stack gases for analysis, 1640 Mini-GASS (Gas Analysis Sampling System) allows users to accurately monitor smoke stack emissions. Gas conditioning system extracts sample gas via integrated sample probe and passes it through series of filters, scrubbers, and dryers. Housed in stainless steel cabinet, components remove water, acid mist, and ash without altering concentrations of gases to be analyzed.

BVS, Inc.
Honey Brook, PA 19344 0250
Jul 14, 2004 Protected with powder coat finish, free-standing PPER-400 Automatic Sampler uses flooded-suction concept of operation to ensure that samples retain solubility. All circuits are relay interfaced, and ground fault indicator system relates safe/unsafe conditions. Standard sample lift is 40 ft, adjustable up to 80 ft with pressure supplied by optional split-phase, capacitor-start, diaphragm compressor with solid-state electronic unloader or clean air supply.

Ocean Optics, Inc.
Dunedin, FL 34698
Aug 05, 2003 Variable-angle Reflection Sampling System couples to spectrometers and light sources to measure spectral reflectance of optical substrates from 200–1,100 nm at angles of incidence from 10° to 50°. Modular, optomechanical device has black anodized stainless-steel chamber with 2 ports for SMA 905-terminated optical fibers. Its 3-point fixed surface mount retains sample position, while thumbscrew locks optical assembly at fixed angle.

CDS Analytical, Inc.
Oxford, PA 19363 0277

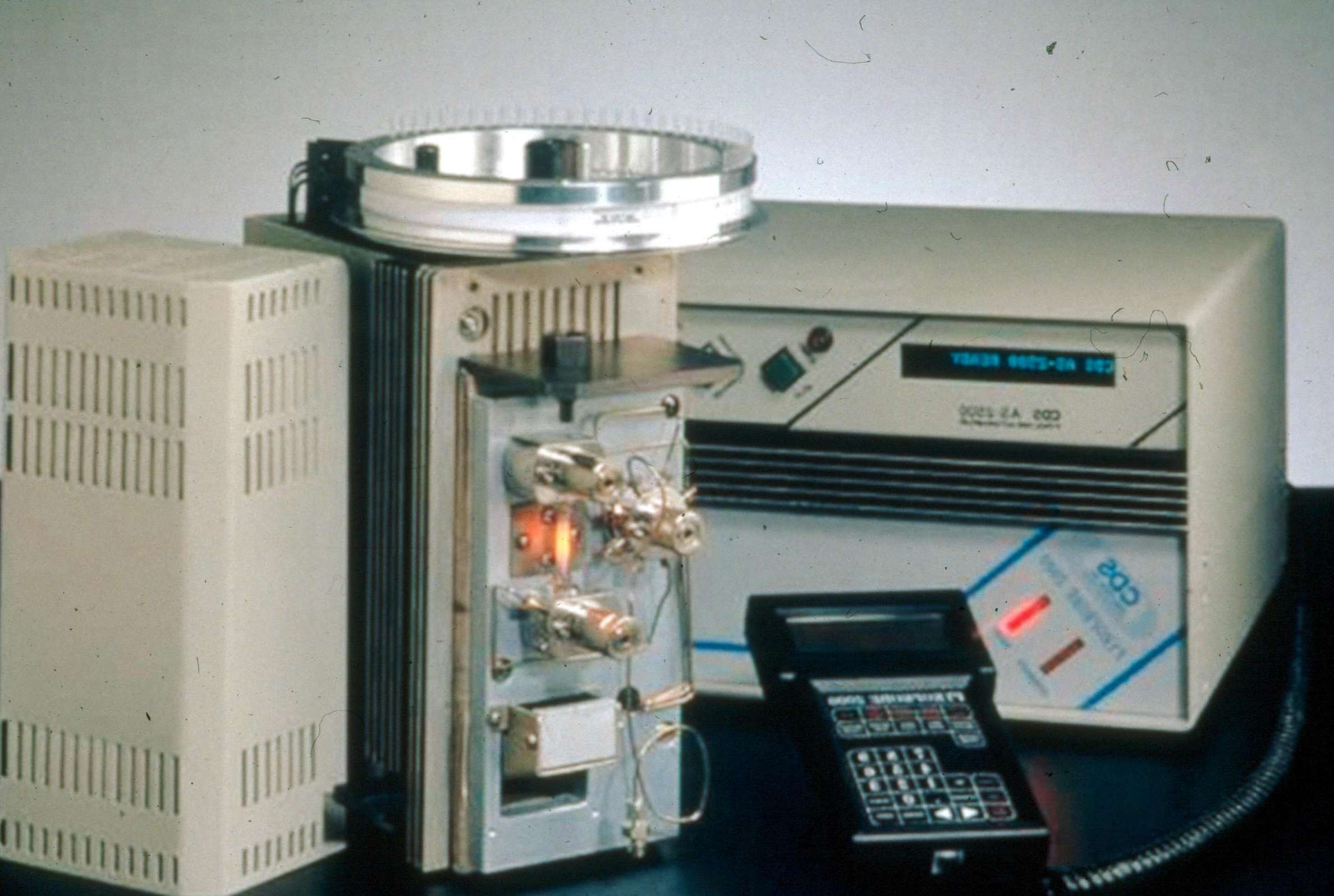

Mar 27, 2003 Model AS2500plus Pyrolysis Autosampler performs thermal desorption and pyrolysis on same sample. Unit handles up to 36 samples and can be programmed through handheld controller or Windows® based software for unattended operation. It can be programmed for temperature rates from 0.01°C/min to 20,000°C/sec and max temperature of 1300°C. Difficult samples such as polymers, adhesives, paint, rubber, tobacco, packaging, inks, and textiles can be analyzed.

SKC, Inc.
Eighty Four, PA 15330 9614
Mar 26, 2003 UMEx Passive Samplers collect formaldehyde and other aldehydes in ppb and ppm range. Polypropylene units clip to worker's collar for personal sampling from 15 min to 8 hr, or are placed in appropriate location for indoor air sampling up to 24 hr for formaldehyde. No sample pump is needed. Each incorporates blank section in addition to active sampling section. On/off sliding cover starts and stops sampling.

Swagelok Company
Solon, OH 44139 2764
Feb 07, 2003 Modular platform components consist of surface mounts, including valves and filters, plus substrates and manifolds to assemble process analyzer and sample-handling systems. System meets requirements of ANSI/ISA 76.00.02 specification for 1.5 in. footprint. Configurator software allows user to place, define, and connect components on computerized layout grid. It identifies additional flow connectors necessary to build fluid system and generates bill of materials and assembly diagram.

Polymer Laboratories, Inc.
Amherst, MA 01002
Feb 01, 2003 Suited for Gel Permeation Chromatography (GPC), PL XT-R is based on robotic platform and integrates sample preparation and autosampling functions. Product supports all GPC chromatographs operating in temperature range from 30-220°C. Up to 96 sample-filled vials are accommodated in blocks in X-Y array. Solvent-filled vials are subjected to controlled heating and magnetic stirring. System includes robotic arm dispenser, heated injection valve, and heated transfer line.

Retsch, Inc.
Irvine, CA 92614
Jan 29, 2003 Model PK 1000 Rotary Tube Divider extracts samples from granular or powdered substances with feed size up to 10 mm. Introduced to divider through vibratory feeder, product passes into cone where rotary tube rotates at constant speed of 50 rpm. With each rotation, portion of sample is deposited by rotary tube through slot into sample collector. Dividing ratio and volume of extracted sample are determined by width of slot, which can be adjusted continuously from 0-73 mm.

Bristol Equipment Co.
Yorkville, IL 60560
Dec 20, 2002 ISOLOK® SAL-25 Sampler Series handles liquids and slurries with entrained solids up to 3/8 in., drawing measured samples of 25 cc/cycle on command from electrical or pneumatic controls. Actuated by double-acting air cylinder, products tap process streams moving through pipes or vessels pressurized up to 300 psi. Integral process-isolation valve allows removal of sampler for service without de-pressurizing process being sampled. Sample path always remains enclosed.

Spectro Analytical Instruments Inc.
Fitchburg, MA 01420 6093
Oct 21, 2002 On-Line Sampling System provides automated, multi-elemental analysis to assist volume waste producers where multiple effluent streams must be monitored and controlled on 24-hour basis. Features include time-controlled startup and shut-down and built-in self-monitoring and diagnostic functions. Remote access/control functions are available using TCP/IP based SPECTRONETâ„¢ communications option, programmable for multi-level error handling and traceable sampling.

Bristol Equipment Co.
Yorkville, IL 60560
Oct 15, 2002 Actuated by compressed-air cylinder, ISOLOK® Series MSC Sampler taps process streams moving through pipes or vessels pressurized up to 200 psi. Design keeps sample path completely enclosed to avoid spillage waste, contamination of sample or process, and material exposure to personnel. All metal parts are type 316 SS with polished finish. Moving parts are hardened with industrial chrome for extra wear resistance. Sample containers range from 125 ml to 4 L.
